![ASRock EPC612D8A-TB — создание и загрузка SSL сертификата для организации [46/66]](/img/pdf.png)
ASRock EPC612D8A-TB — создание и загрузка SSL сертификата для организации [46/66]
Превью страниц
Страница 46 /
66
![ASRock EPC612D8A-TB [46/66] Upload ssl certificate](/views2/1694347/page46/bg2e.png)
Generate SSL certificate Page
Common Name(CN): Common name for which certificate is to be generated.
Organization(O): Organization name for which the certificate is to be generated.
Organization Unit(OU): Over all organization section unit name for which certificate
is to be generated.
City or Locality(L): City or Locality of the organization.
State or Province(ST): State or Province of the organization.
Country(C): Country code of the organization.
Email Address: E-mail Address of the organization.
Valid for: Validity of the certificate.
Key Length: The key length bit value of the certificate.
3.7.11.3 Upload SSL certificate
This page is used to upload the certificate and private key file into the BMC.
43
Содержание
112- Ipmi configuration guide
- Table of contents
- The user guide is for system administrators to remotely access computers with bmc baseboard management controllers and ipmi intelligence platform management interface system administrators may easily monitor system conditions or manage issues of remote computers via the web based interface a web browser on the internet
- Terminology
- Introduction
- Logging in to web using ipmi user
- Html5 web gui
- Certificates to import the certificate
- You can also login to the ipmi via ssl mutual authentication without entering username password before you login as ssl mutual authentication ensure that 1 upload ca certificate pem server certificate pem and server private key pem to bmc 2 install the client certificate p12 into the browser
- Login to ipmi using the link https ip address mutual port number
- Logging in to web using ssl mutual authentication
- Chrome using settings to open manager certificates to import the certificate
- Chrome latest version ie11 and above firefox with limited support
- System requirements
- Supported browsers
- Client machine with 8gb ram if the client machine has 4gb ram there will be lag in video keyboard mouse functionality
- Web gui overview
- Menu bar
- Quick button and logged in user
- Firmware information
- Dashboard
- Sensor monitoring
- Sensor
- Network information
- Event logs
- Sensor detail
- System inventory
- System information
- Fru information
- This page displays the fru information select a fru device id from the fru information section to view the details of the selected device
- System inventory page
- Fru page
- Product information
- Chassis information
- Board information
- Available fru devices
- Power source
- Logs reports
- Ipmi event log
- Video log
- Settings
- Data time
- External user services
- Ldap e directory settings
- General settings
- Role groups
- General settings
- Active directory settings
- Role groups
- Radius settings
- General radius settings
- Advanced radius settings
- Kvm mouse setting
- Log settings policy
- Log settings
- Vmedia instance settings
- Remote session
- Network settings
- Network ip settings
- Dns configuration
- Pam order settings
- Platform event filter pef provides a mechanism for configuring the bmc to take selected actions on event messages that it receives or has internally generated these actions include operations such as system power off system reset as well as triggering the generation of an alert
- Platform event filter
- Pam order settings page pam authentication order it shows the list of available pam modules supported in bmc click and drag the required pam module to change its order
- Event filters
- Event filter configuration
- Alert policies
- Lan destinations
- Alert policies
- Lan destination configuration
- View the active sessions
- Services
- Edit the existing service
- Smtp settings

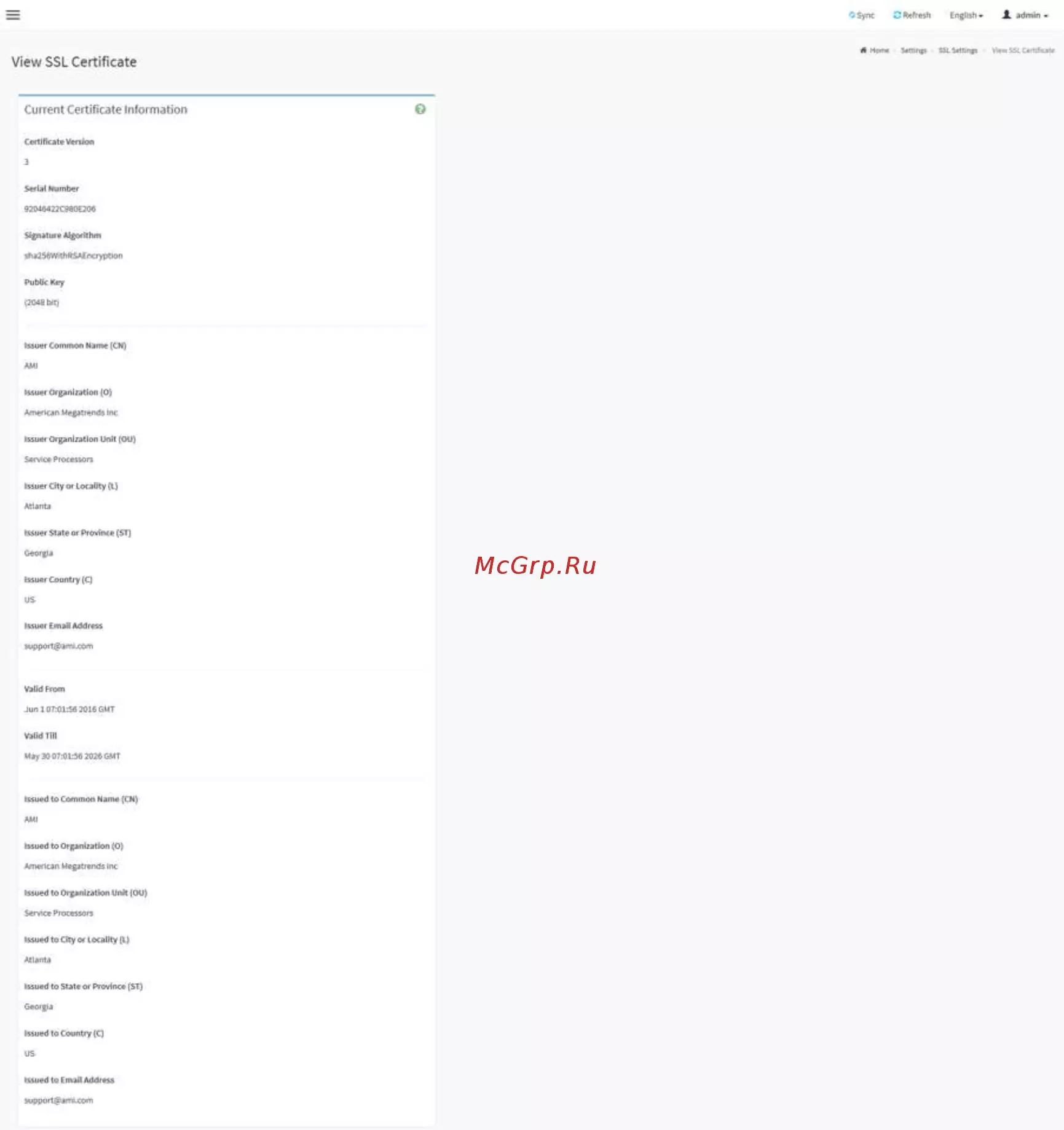

- View ssl certificate
- Ssl settings
- Generate ssl certificate
- Upload ssl certificate
- System firewall
- General firewall settings
- Existing firewall settings
- Add firewall settings
- Ip firewall rules
- Existing ip rules
- Port firewall rules
- Add ip rule
- Existing port rules
- Add port rule
- User management
- Add a new user
- Video recording
- Modify user
- Auto video settings
- Video trigger settings
- Video remote storage
- Pre event video recordings
- Keep share nic link up
- Remote control
- Remote media
- Image redirection
- Power control
- Miscellaneous
- Uid control
- Post snoop
- Restore configuration
- Maintenance
- Backup configuration
- Firmware image location
- Bios update
- Firmware update
- Restore factory defaults
- Sign out
