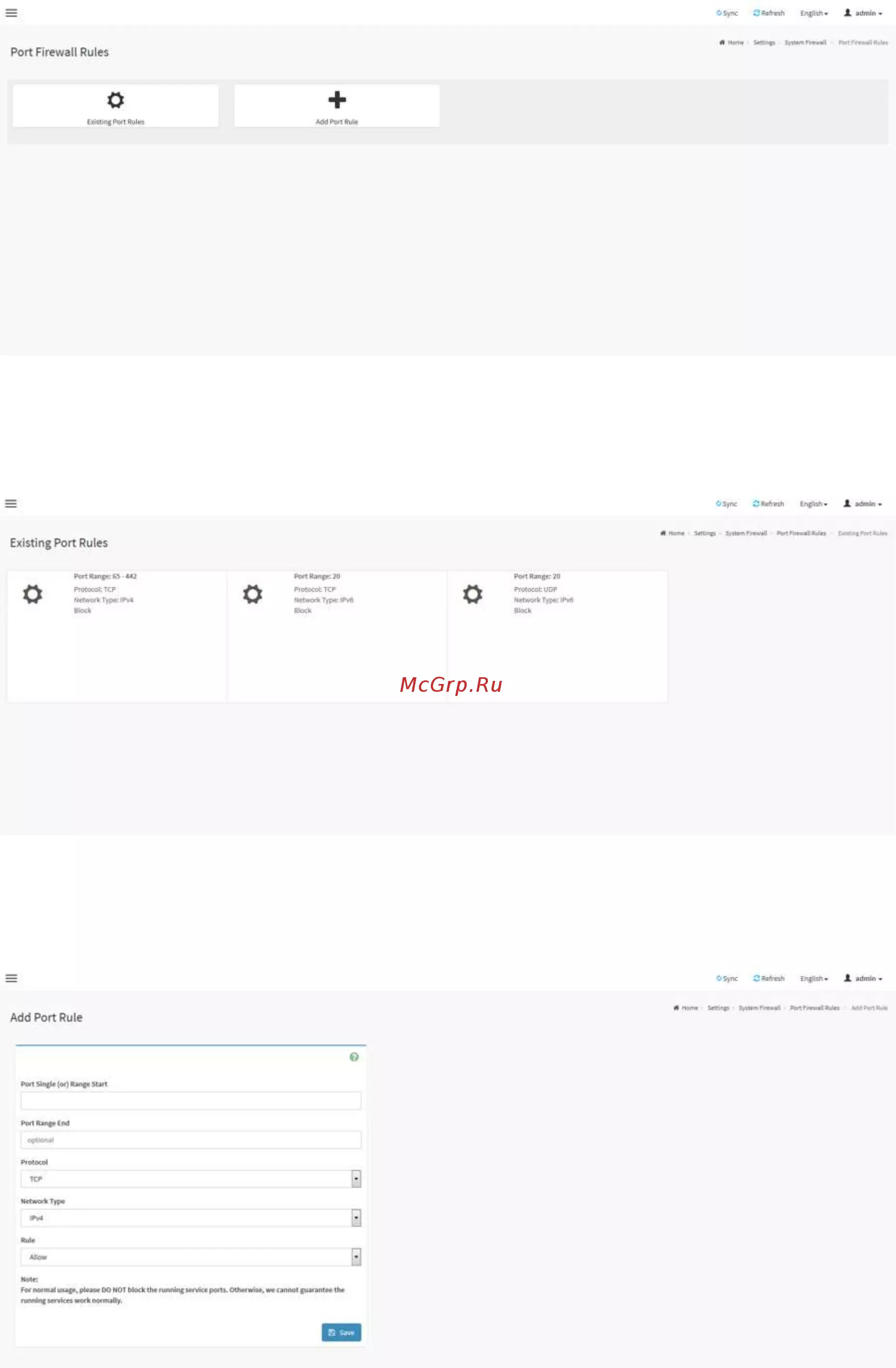

Port Single (or) Range Start: This field is used to configure the port number or range
of port numbers.
Port Range End: This field is used to configure the port range end of port numbers.
Protocol: This field is used to configure the protocol.
Network Type: This field is used to configure the network type.
Rule: This field is used to determine the rule to Allow or Block.
3.7.13 User Management
This page displays the current list of user slots for the server. You can add a new user
and modify or delete the existing users.

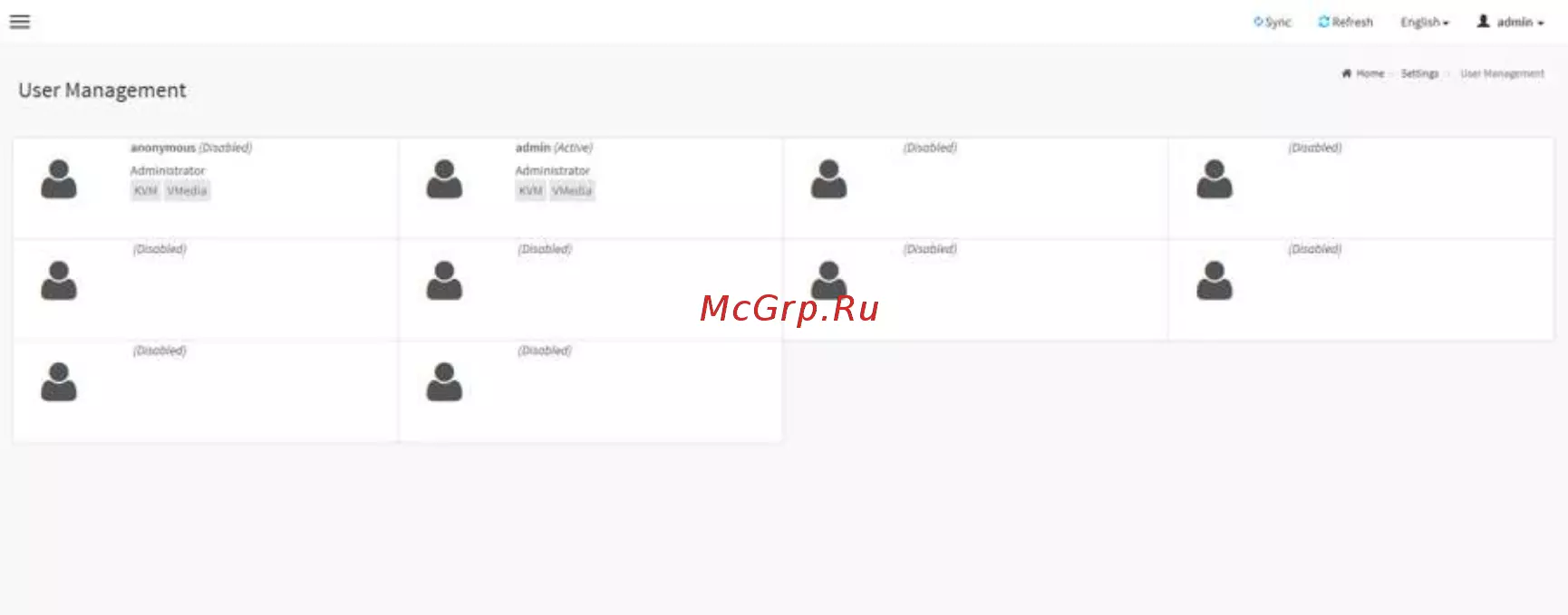

User Management Page

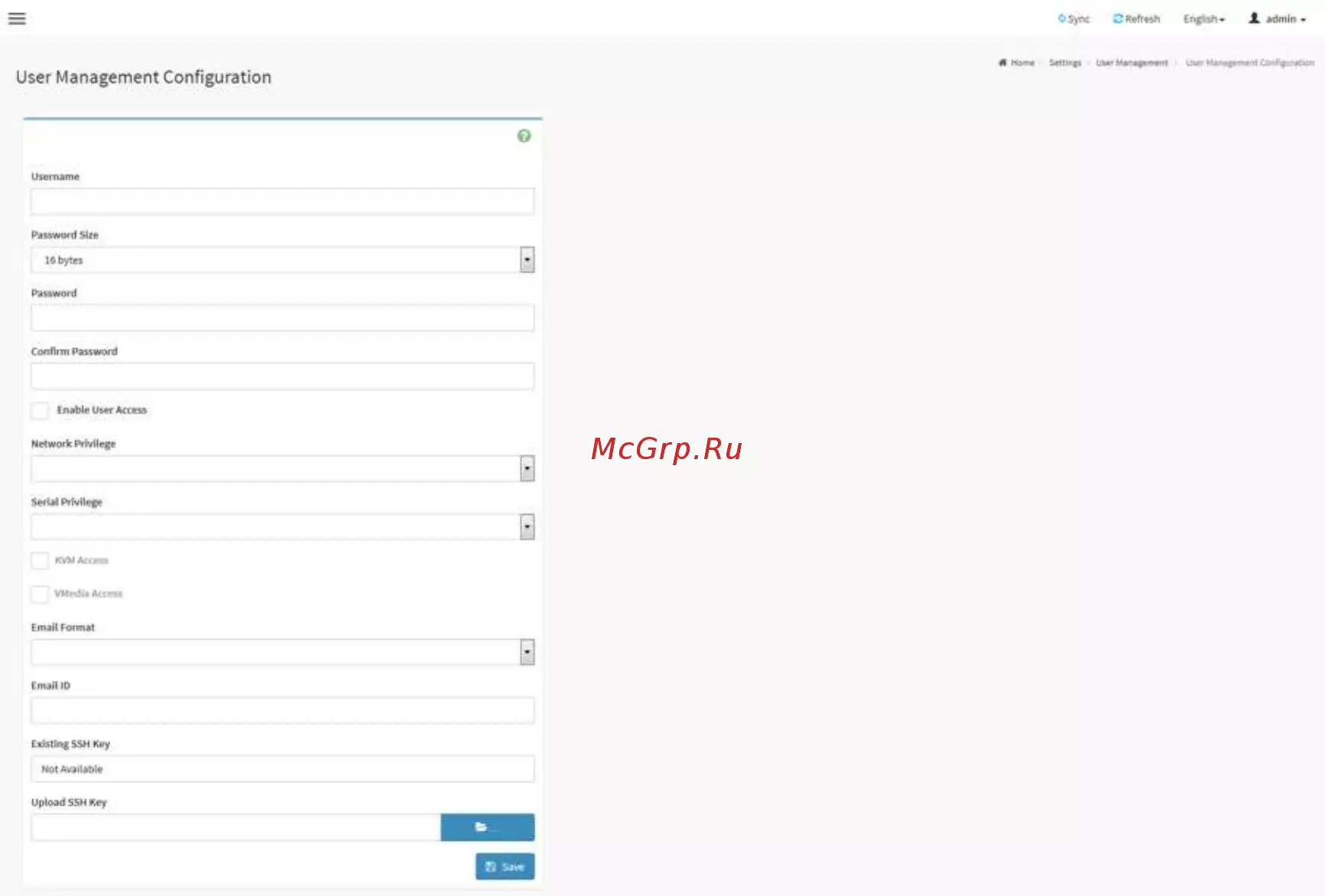

Add a new user: To add a new user, select a free section and click on the empty
section.
49
