3.7.14.1 Auto Video Settings
This page is used to configure auto video recording settings.

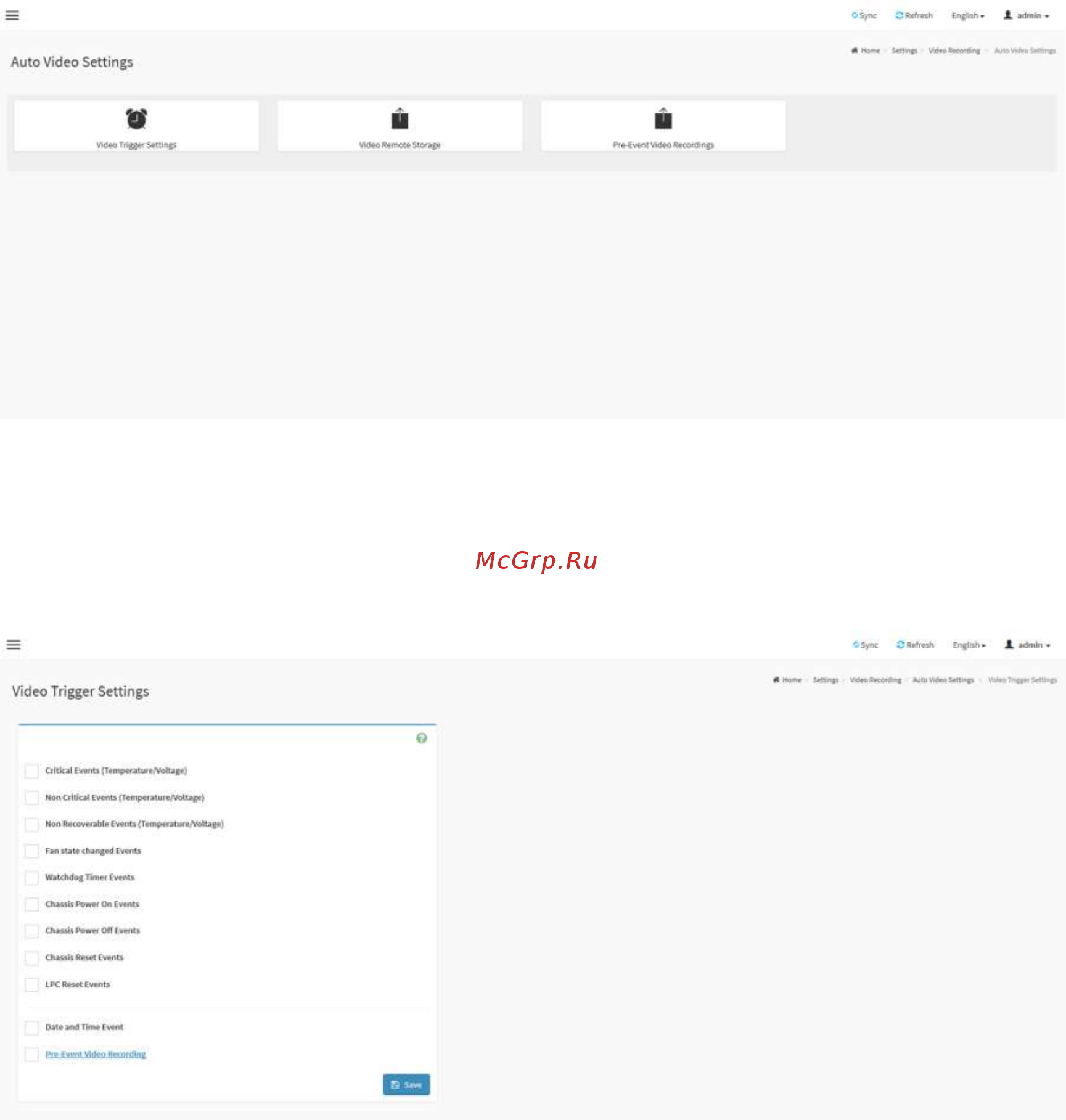

Auto Video Settings Page
Video Trigger Settings: This page is used to configure the events that will trigger
auto video recording function of the KVM server.
Video Trigger Settings Page
Critical Events (Temperature/Voltage): Trigger the recording by the critical events for
Temperature/Voltage sensor.
Non Critical Events (Temperature/Voltage): Trigger the recording by the non-critical
events for Temperature/Voltage sensor.
Non Recoverable Events (Temperature/Voltage): Trigger the recording by the
non-recoverable events for Temperature/Voltage sensor.
52
