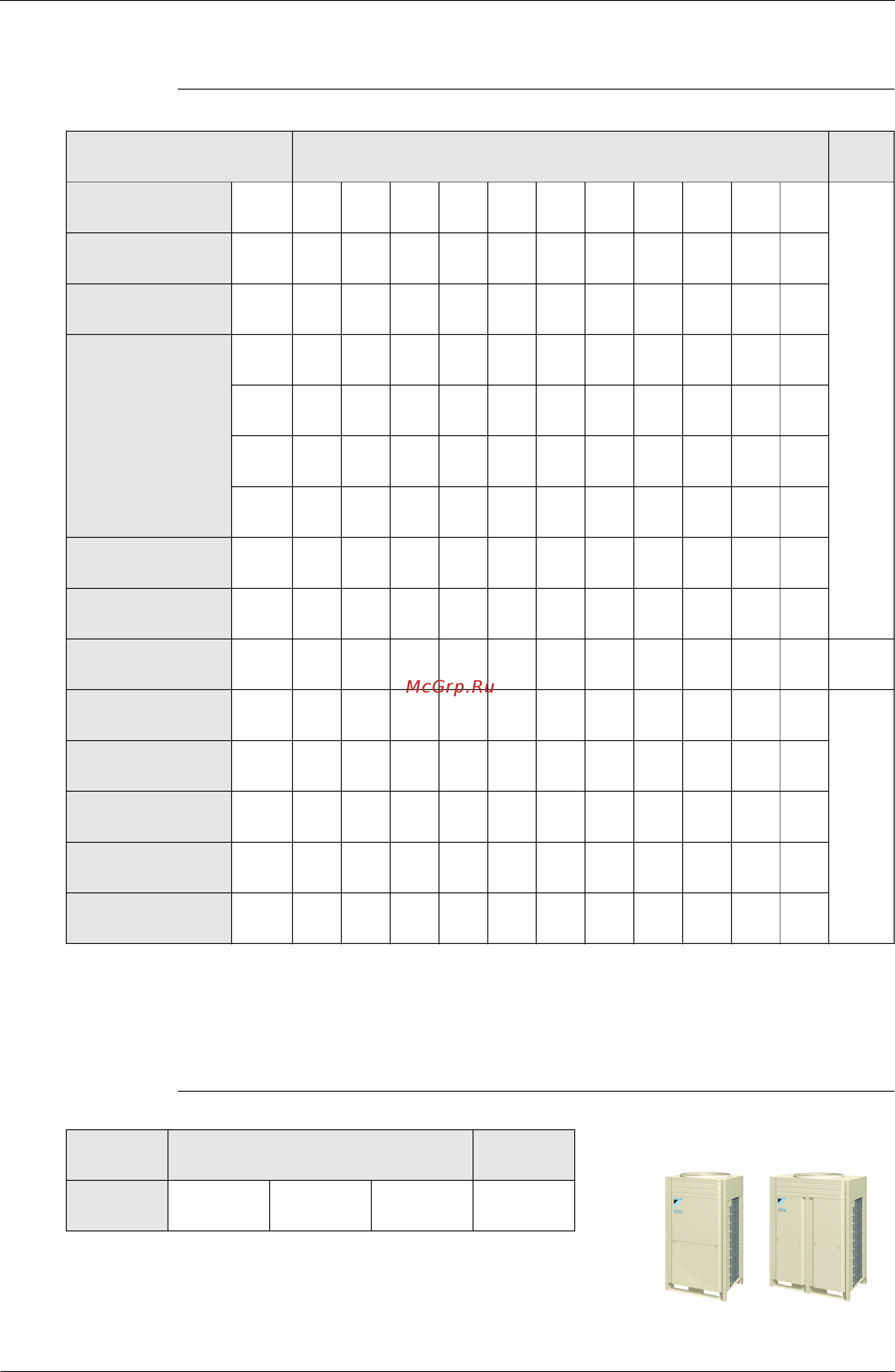

Model Names of Indoor/Outdoor Units Si38-606
2 General Information
1. Model Names of Indoor/Outdoor Units
Indoor Units
Note: FXD has following 2 Series, as shown below.
FXD-P, MVET: without Drain Pump (For General, Asia: except for EU, China and Australia)
FXD-P, MVE: with Drain Pump
VE: 1φ, 220V~240V, 50Hz
1φ, 220V, 60Hz
V1: 1φ, 220V~240V, 50Hz
Outdoor Units
Y1: 3φ, 380-415V, 50Hz
Type Model Name
Power
Supply
Ceiling Mounted
Cassette Type
(Double Flow)
FXC 20L 25L 32L 40L 50L 63L 80L — 125L — —
VE
Ceiling Mounted
Cassette Type
(Multi Flow)
FXF — 25L 32L 40L 50L 63L 80L 100L 125L — —
Ceiling Mounted
Cassette Corner Type
FXK — 25L 32L 40L — 63L — — — — —
Slim Ceiling Mounted
Duct Type
FXD-PVE
20P25P32P————————
FXD-PVET
20P25P32P————————
FXD-MVE
20M 25M 32M 40M 50M 63M — — — — —
FXD-MVET
20M 25M 32M 40M 50M 63M — — — — —
Ceiling Mounted Low
Silhouette Duct Type
FXYD
20KA 25KA 32KA 40KA 50KA 63KA
—————
Ceiling Mounted
Built-In Type
FXS 20L 25L 32L 40L 50L 63L 80L 100L 125L — —
Ceiling Mounted Built-In
(Rear Suction) Type
FXYB 20K 25K 32K 40K 50K 63K 80K 100K 125K — — V1
Ceiling Mounted
Duct Type
FXM — — — 40L 50L 63L 80L 100L 125L 200L 250L
VE
Ceiling Suspended
Type
FXH — — 32L — — 63L — 100L — — —
Wall Mounted Type
FXA 20L 25L 32L 40L 50L 63L — — — — —
Floor Standing Type
FXL 20L 25L 32L 40L 50L 63L — — — — —
Concealed
Floor Standing Type
FXN 20L 25L 32L 40L 50L 63L — — — — —
Series Model Name
Power
Supply
Cooling
Only
RXM 8M 10M Y1
