Troubleshooting by Indication on the Remote Controller SiBE34-703
144 Troubleshooting
3.18 “E7 ” Malfunction of Outdoor Unit Fan Motor
Remote
Controller
Display
E7
Applicable
Models
RXYSQ4~6P
Method of
Malfunction
Detection
Malfunction of fan motor system is detected according to the fan speed detected by hall IC
when the fan motor runs.
Malfunction
Decision
Conditions
When the fan runs with speed less than a specified one for 6 seconds or more when the fan
motor running conditions are met
When malfunction is generated 4 times, the system shuts down.
Supposed
Causes
Malfunction of fan motor
The harness connector between fan motor and PC board is left in disconnected, or faulty
connector
Fan does not run due to foreign matters tangled
Clearing condition: Operate for 5 minutes (normal)
Open phase L1 or open phase N.

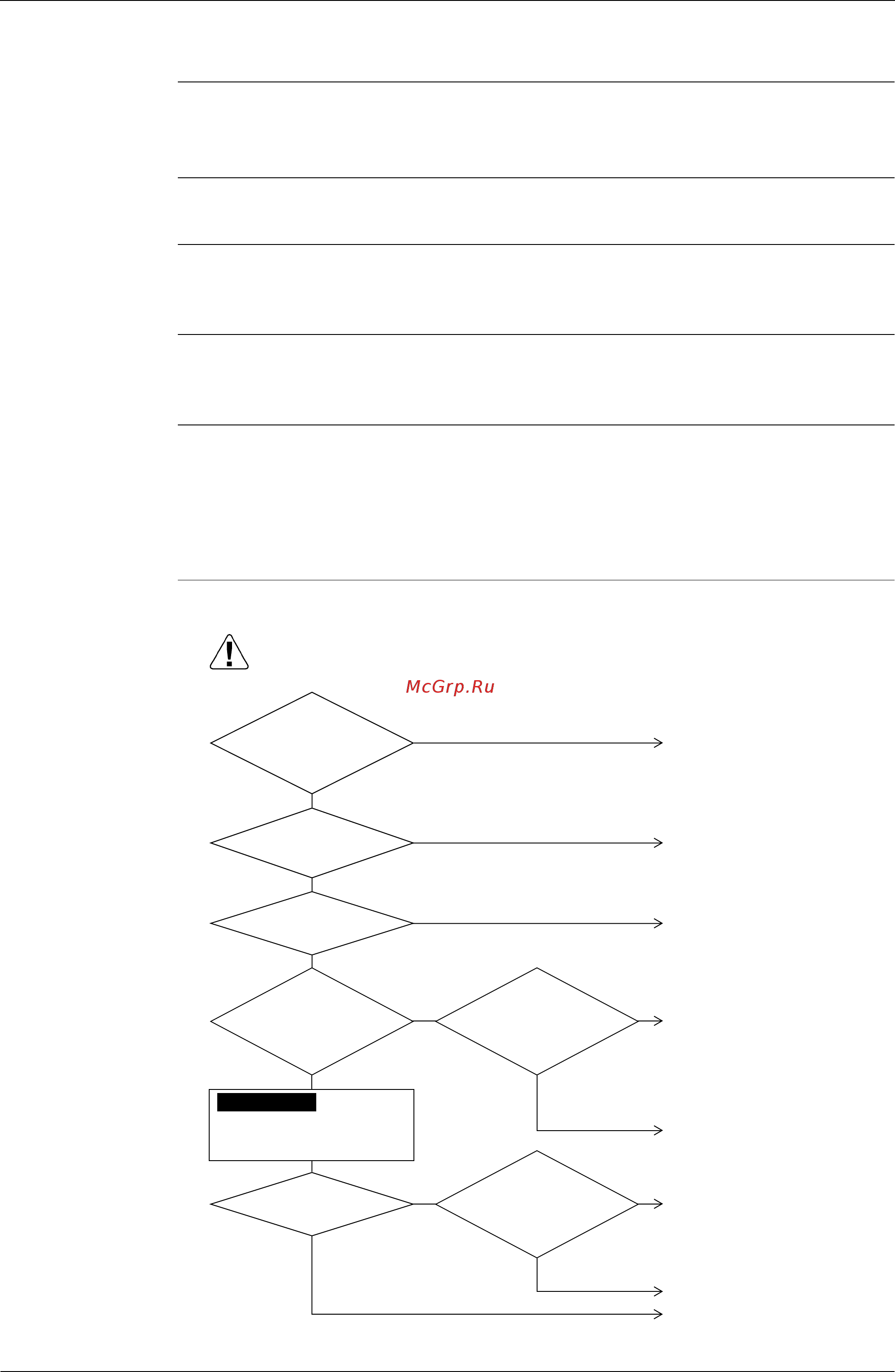

Troubleshooting
Connector
of fan motor is
disconnected.
YES
NO
NO
YES
Has the
voltage between L1
and N on the power supply terminal
board X1M fallen within the range of
220 to 240V±10%
(50 Hz)?
NO
YES
Can the fan
be turned smoothly
with hand after disconnect
the connector of
fan motor?
Is there any
obstacle around
the fan?
YES
YES
NO
Caution
Be sure to turn off power switch before connect or disconnect connector,
or parts damage may be occurred.
Has either the fuse
F4U on the control PC board
(A1P) or the fuse F1U on the
inverter PC board (A2P)
blown out?
NO
NO
Connect the connector.
Remove the obstacle.
Correct the power supply
voltage.
If L1 and N phases are
open, replace the switch
box.
YES
NO
Replace outdoor unit PC
board.
If the F4U has blown out,
replace the fuse.
If the F1U has blown out,
replace the inverter PC
board assy.
Replace the fan motor.
Are the
resistances between pins
above judgment?
Check No. 3
Check on connector of fan
motor (Refer to information
on P.195)
If the F4U has blown out,
replace the fuse.
If the F1U has blown out,
replace the inverter PC
board assy.
Replace the fan motor.
YES
Has either the fuse
F4U on the control PC board
(A1P) or the fuse F1U on the
inverter PC board (A2P)
blown out?
