SiBE34-703 RXYSQ4 · 5 · 6 P7Y1B
Removal Procedure 245

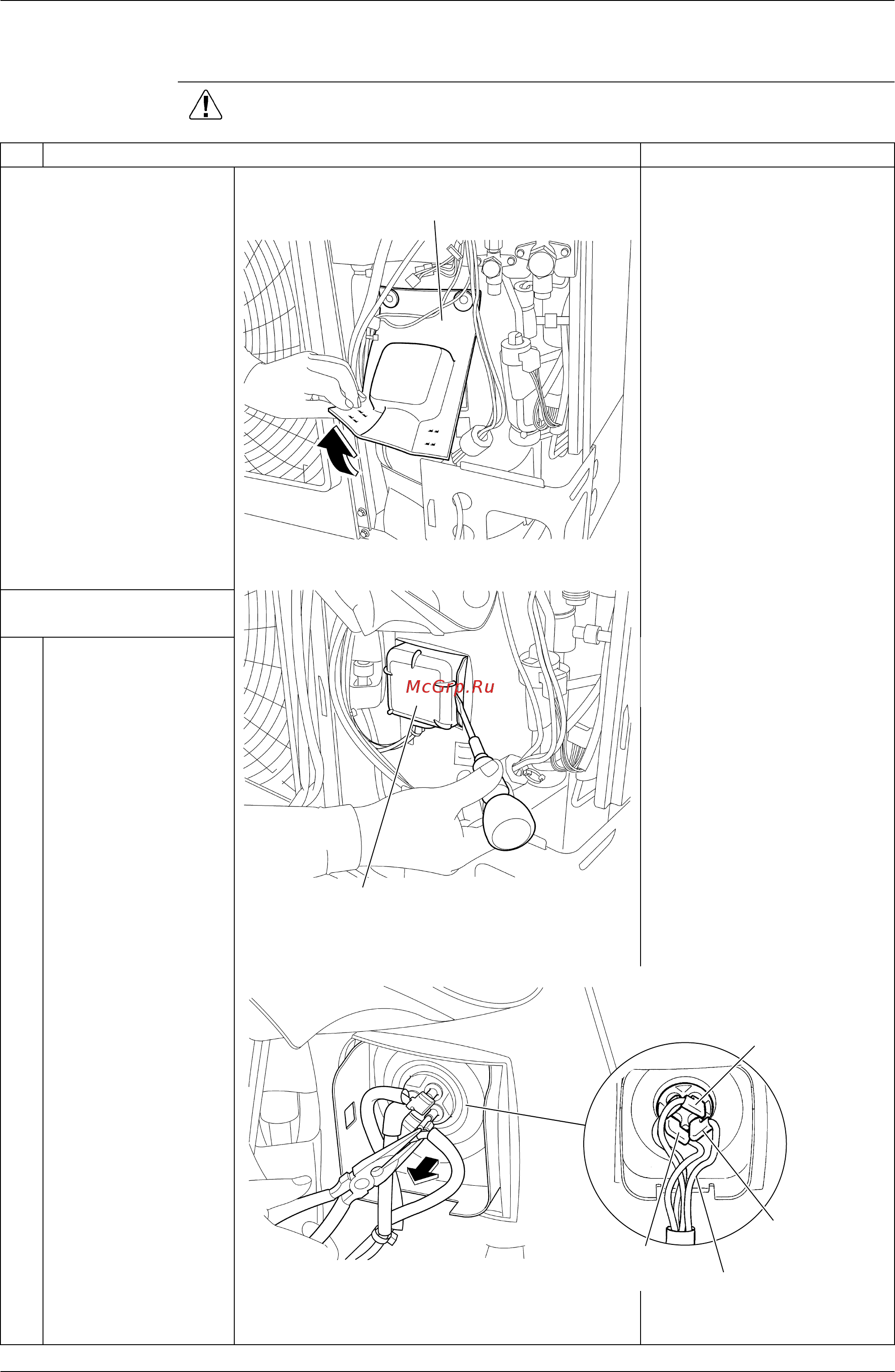

1.3 Procedure to Remove Compressor
Procedure Warning Be sure to commence the disassembling work after 10 minutes or
more elapsed from all power supplies have been turned off.
Step
Procedure Points
Remove the outside
panels, electrical
component, and
compressor fixing panel,
according to the
"Procedure to Remove
Outside Panels"
1. Pull off the lead wire of
compressor.
1
Open upward the sound
insulation for the
terminal cover.
2
Remove the terminal
cover with a minus
driver, etc.
3
Remove the terminals
for the compressor with
a round nose chain
pliers with side cutters,
etc.
Terminal cover
Sound insulation for the terminal cover
Red color: S
White color: Blank
Blue color: N
Lead wire to the compressor
