Zkteco LPRC100 [4/8] Adjusting the vehicle imaging angle

NC2

COM2

NO2

Connection indicator light (Red and Green).

AUX1

GND

AUX2

Auxiliary input

GND

OPEN

Barrier Switch status

GND

485A2

485B2

Reserved port for RS485 transparent transmission

function

485A1

485B1

Display/voice driver

board connection

WD1IN

WD0IN

Wiegand in

WD0

WD1

GND

Wiegand out

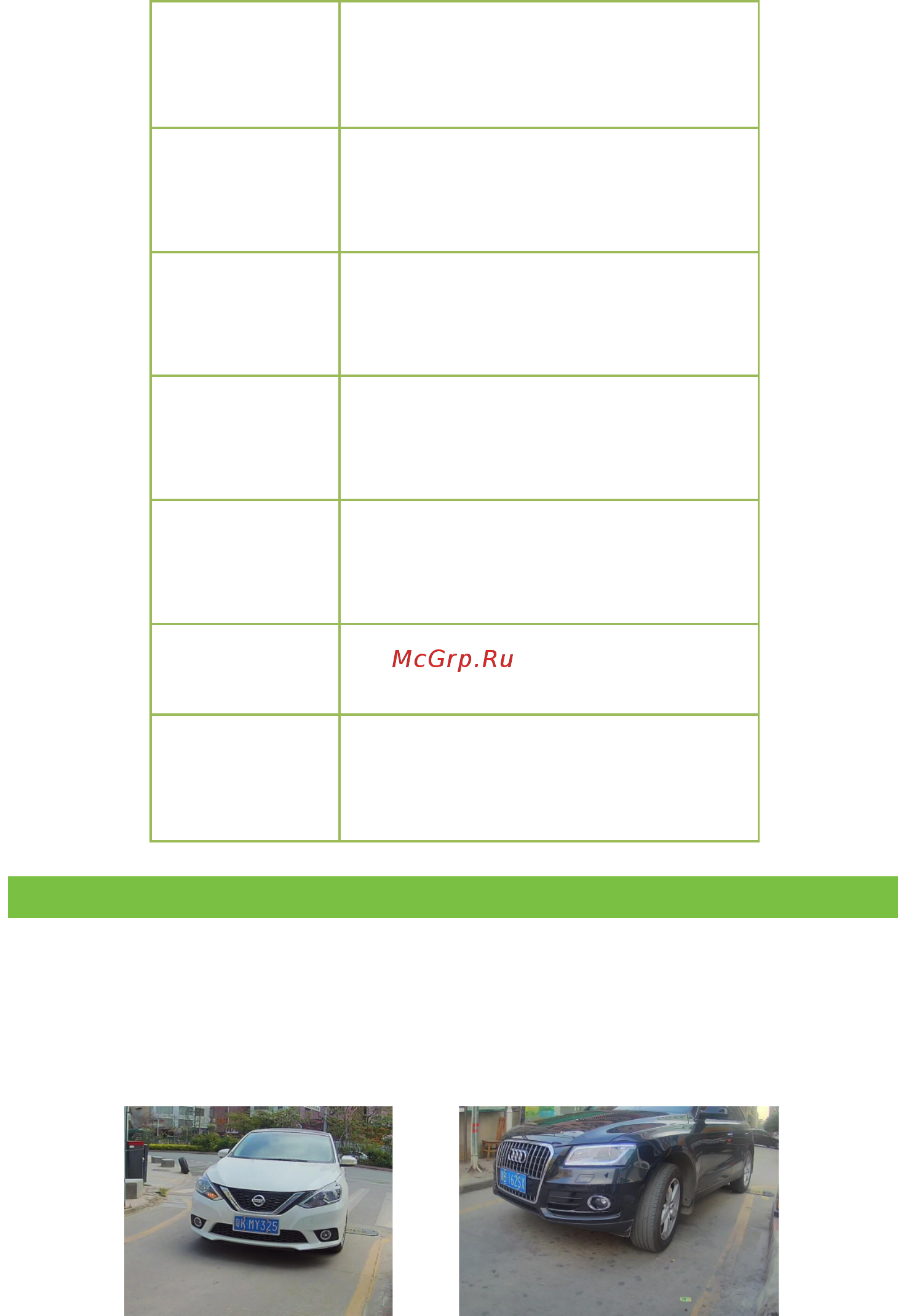

Enter the IP address of the camera (default IP address: 192.168.1.88; default User Name and Password: admin) in

the address bar of the browser. View the vehicle imaging angle in real time on the Liveview page to adjust the

installation angle. Side angle: ≤50°; depression angle: ≤70°.

Correct installation Incorrect installation

3. Adjusting the vehicle imaging angle
