Zkteco LPRC100 [5/8] Adjusting the image size and focus

Note: As shown in the correct installation figure, the camera should be in parallel to the lane as much as

possible. In case of incorrect camera installation, the license plates can still be recognized, but the recognition

rate is affected.

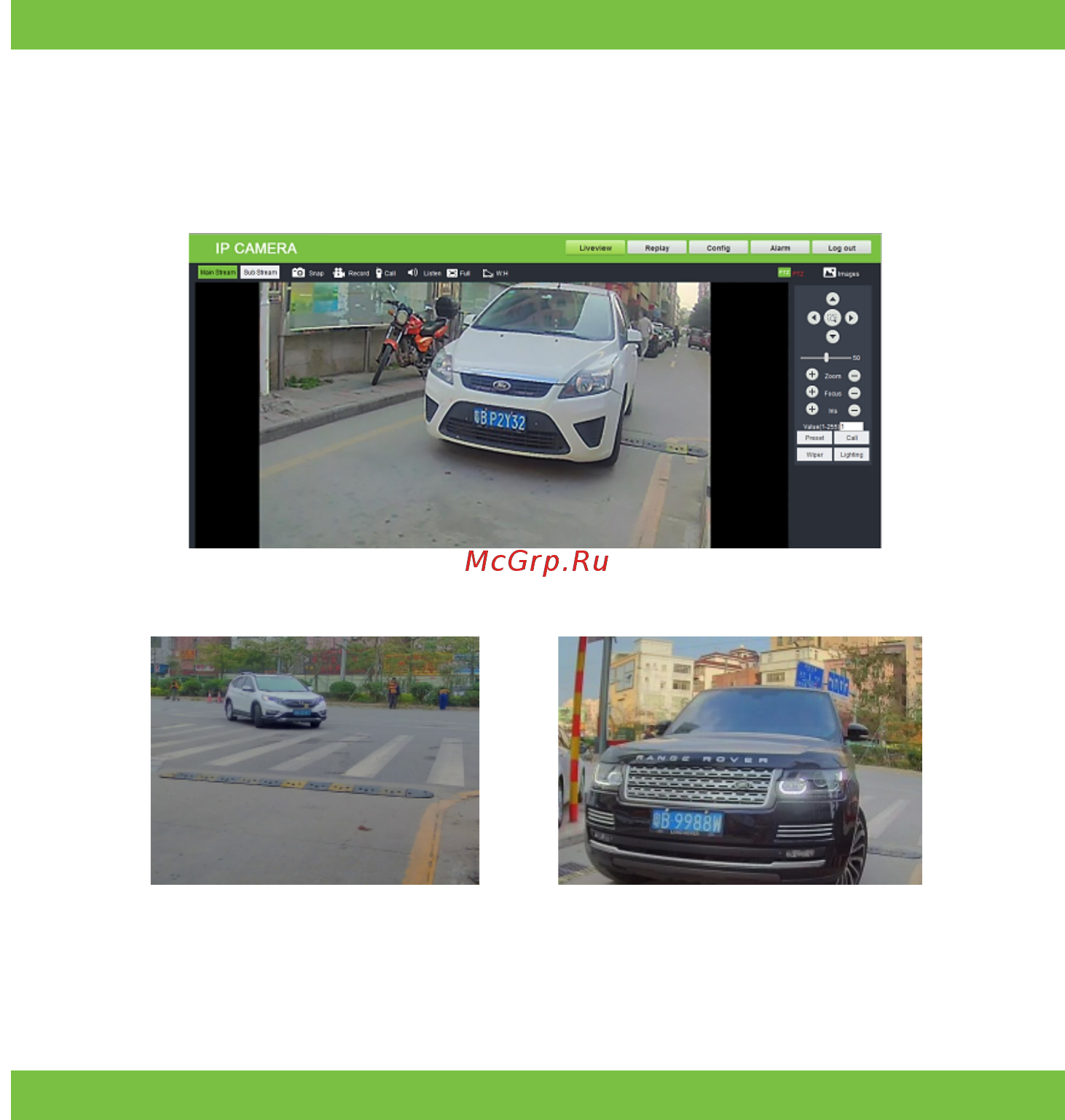

You can view the license plate image size in real time on the Liveview page and click [PTZ] to adjust the image

size by modifying the zoom and focus.

Recommended width: The width of the license plate in the video should range from 60 pixels to 350 pixels.

Too small Too large

 Note: Adjust the zoom first and then the focus. Too large license plate image will affect the recognition

rate.

Click [Config]  [Smart] [Intelligent] to set the recognizable area and virtual line.

Video stream recognition: More recognized frames indicate higher recognition rate.

Recognition area: You can set the recognition area to avoid interference during recognition.

Virtual line: The virtual dotted line triggers the recognition. When the license plate on the vehicle touches the

virtual line, it will be recognized. The virtual line should be drawn inside the recognition area without complex

background (such as deceleration strips or handrail).

4. Adjusting the image size and focus

5. Setting the recognition area and virtual line
