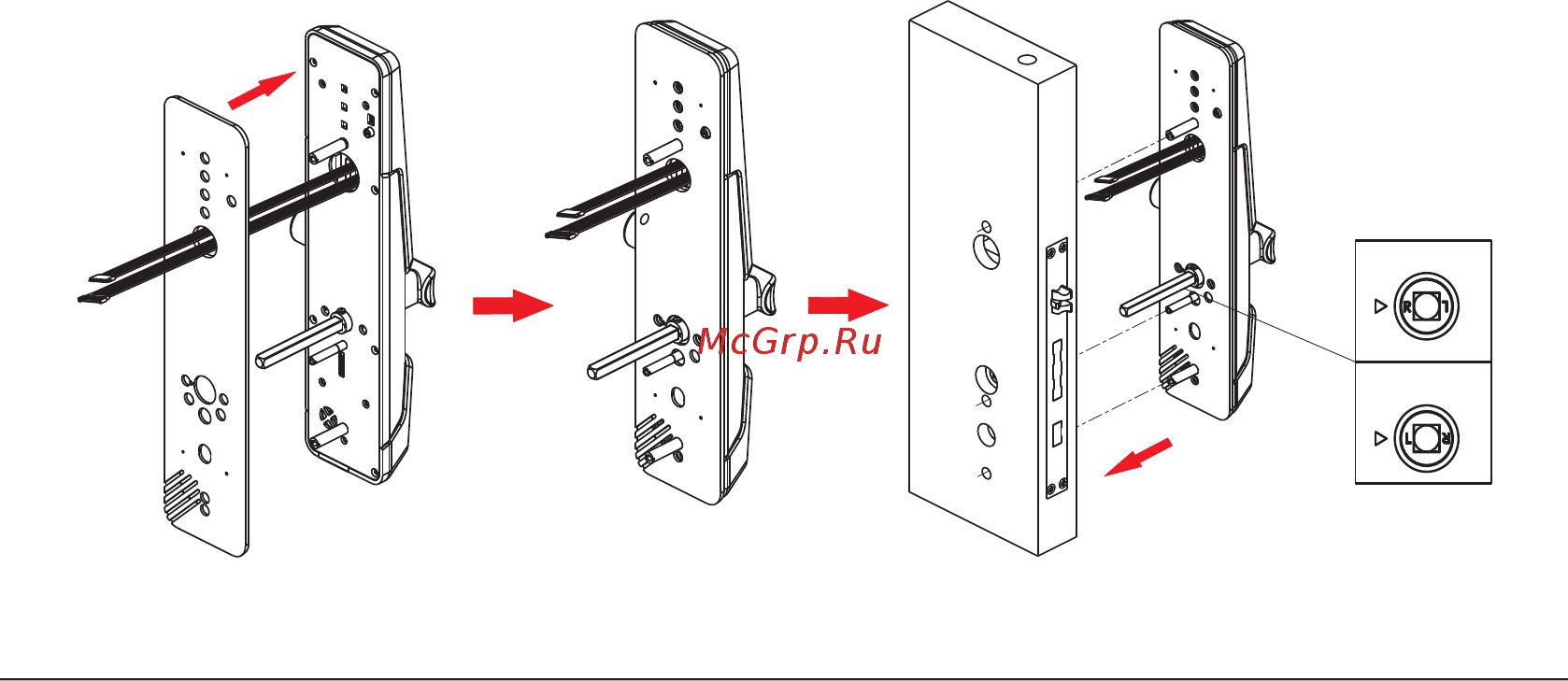

3. Install outdoor unit(B) with gasket(C),and spindle(D)
Note: 1. The small triangle must be placed toward the letter of R or L.
2. If the door is right open, the small triangle should towards R.
3. If the door is left open, the small triangle should towards L.
11
Step1
Step3
Step2
Right Open
Left Open
B
C
D
D
B
D
