Zkteco ZM100 [7/20] Installation environment
![Zkteco ZM100 [7/20] Installation environment](/views2/1703515/page7/bg7.png)
3m
1.0m
3m
1.0m
5
Installation Environment
This lock is recommended to be installed in the indoor and semi-outdoor environment,
where the luminance is within 5000Lux.

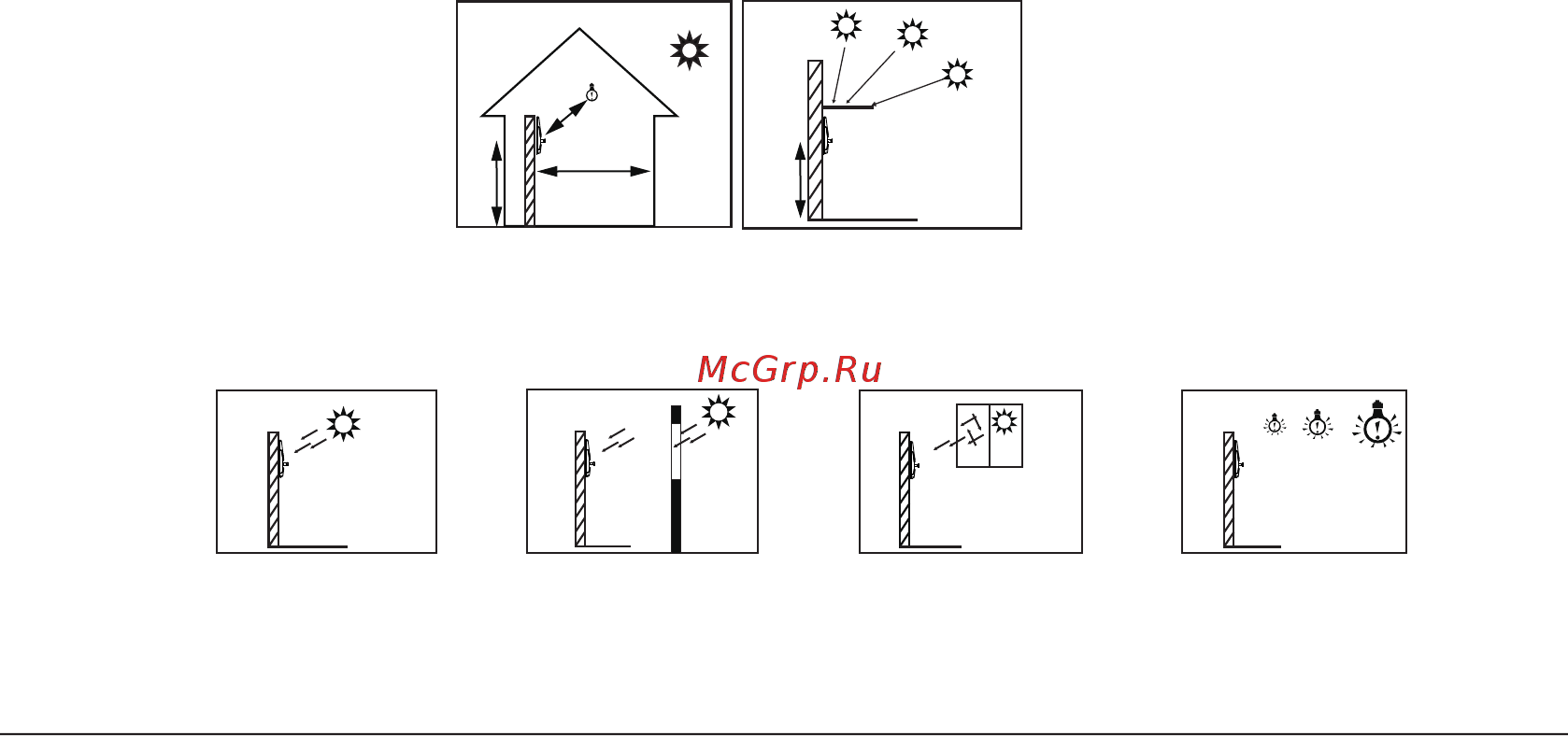

Recommended installation position:
There are several situation will affect the recognition:
Expose to direct
sunlight (outdoor)
Expose to direct
sunlight through
the window (indoor)
Expose to slant
sunlight through
the window (indoor)
Expose to strong
light at a close
distance (indoor)
