Zkteco ZM100 [9/20] How to change the direction of latch bolt
![Zkteco ZM100 [9/20] How to change the direction of latch bolt](/views2/1703515/page9/bg9.png)
180°
7
Tips

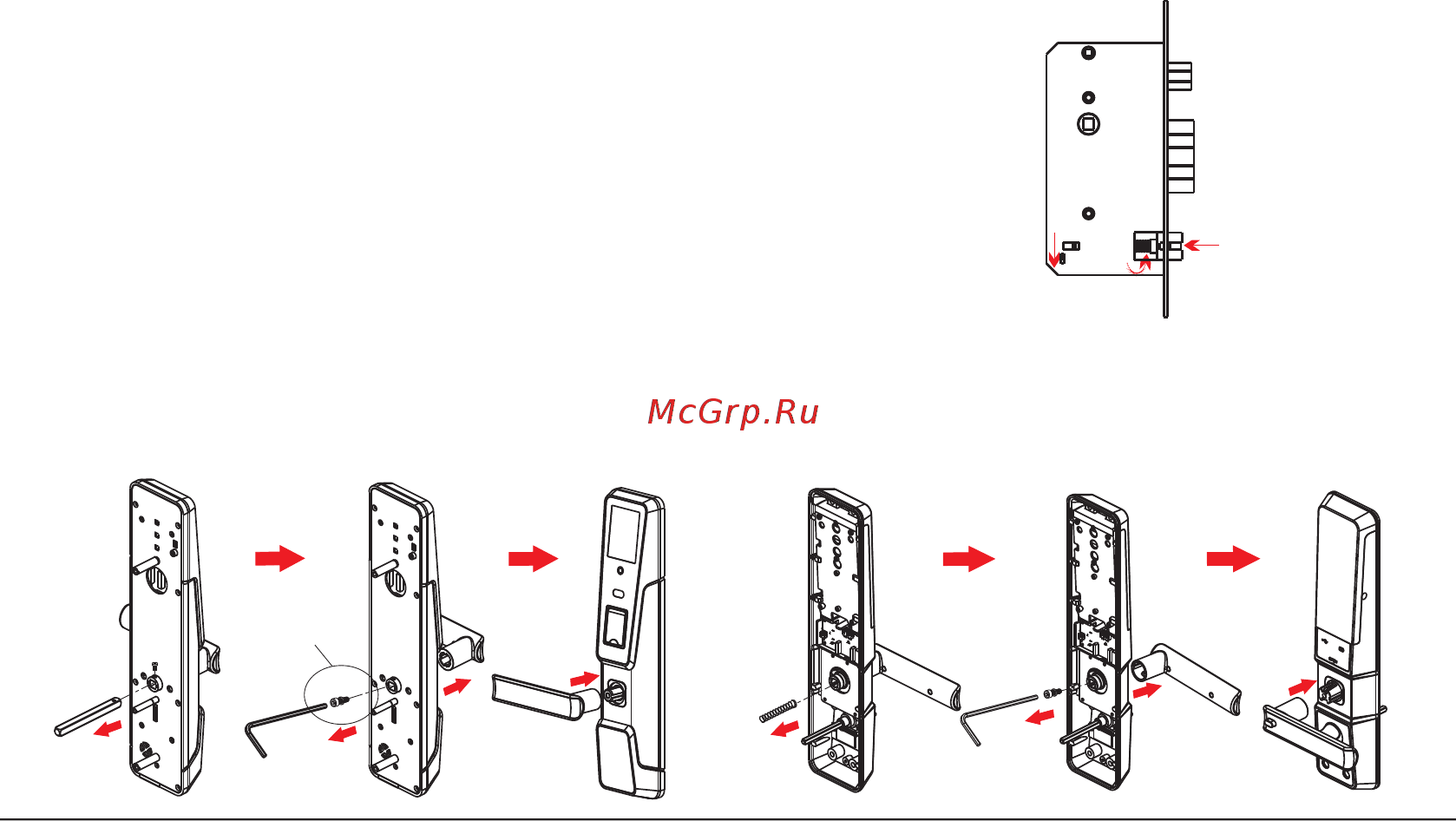

1. How to change the direction of latch bolt?
Step1: Push the switch to the end
Step2: Push the latch bolt into the mortise
Step3: Rotate the latch bolt at 180° inside mortise,
then loose it.
2. How to change the handle direction?
Front Lock
Back Lock
7
Œ
Ž
Loose
screw
K
D
