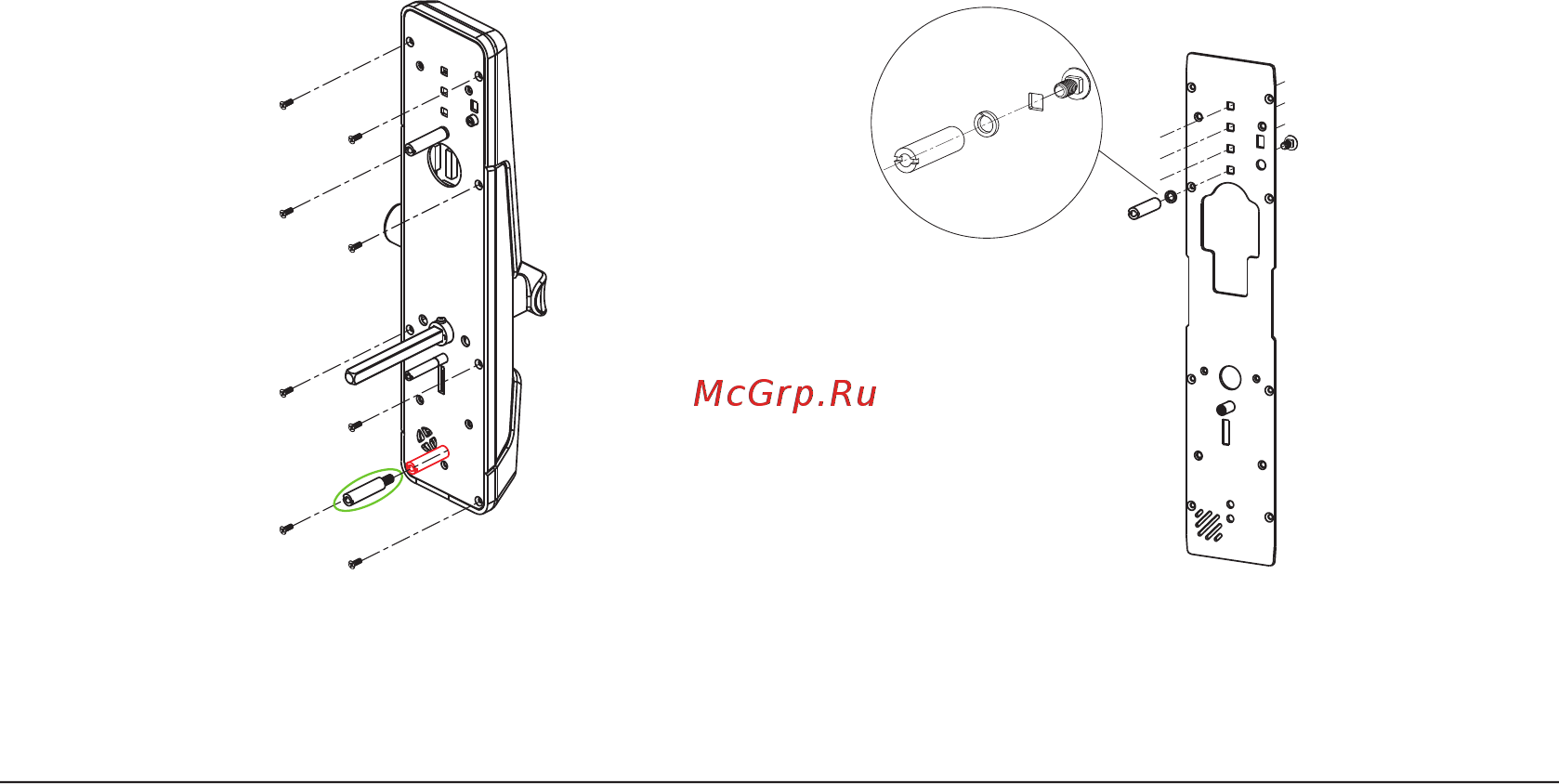

How to change the location of stud bolts?
Note: There are four square holes to be used.
Step2:Twist down the other stud bolt.
M3
M5
12
Step1: Twist down the eight M3 screws and M5
stud bolt to take down the mounting plate.
Note: Before install the waterproof gasket, if the height of stud
bolts is unsuitable for the existed holes, you can adjust
stud bolts location to make the lock suitable.
