Zkteco FR1500 [3/8] Installation

Installation

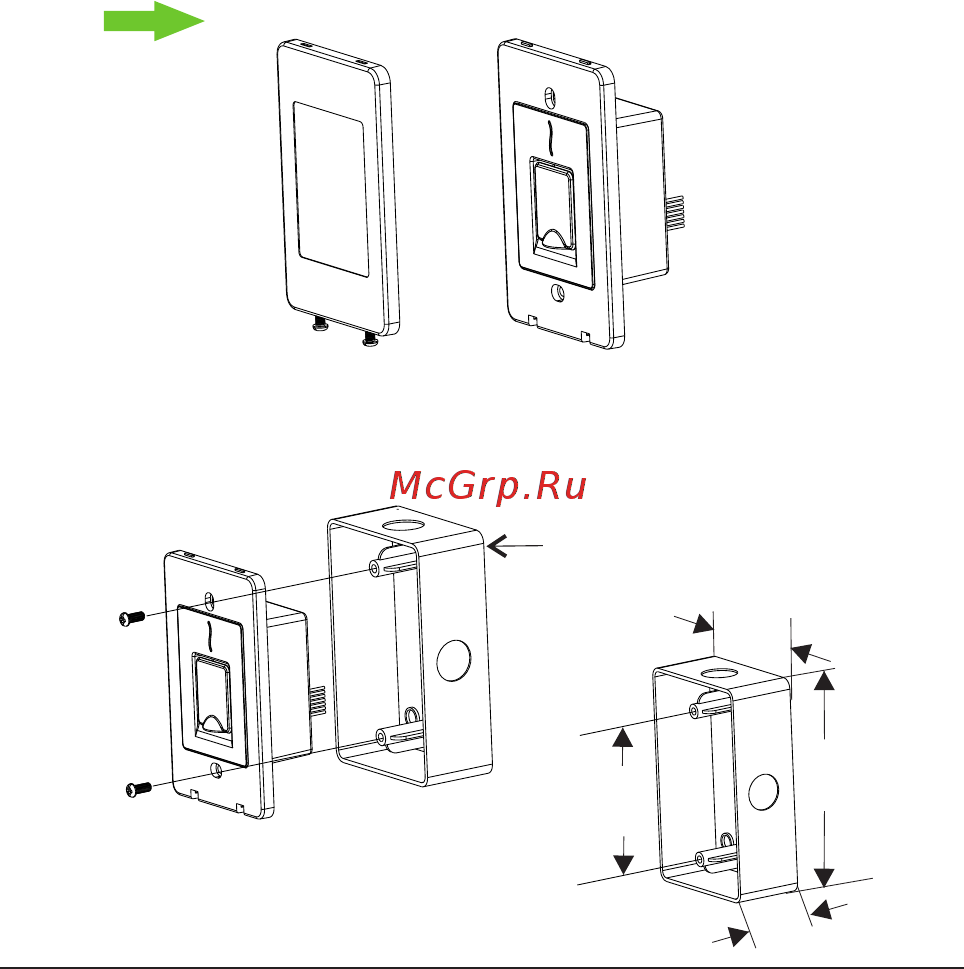

Take out the front panel as shown below

STEP 2

Method 1: Mounting on the standard Single gang junction box

Lay the cables from the desired hole in Single gang junction box and fix the machine part

to the box part.

The Single gang junction box's size

recommendations:

Location column: 83.3mm

Inside of the box Depth: Minimum 36mm

Outside the box size: maximum length

120mm , maximum width 76mm

36m

0mm
