NC1
NO2
COM2
NC2
6

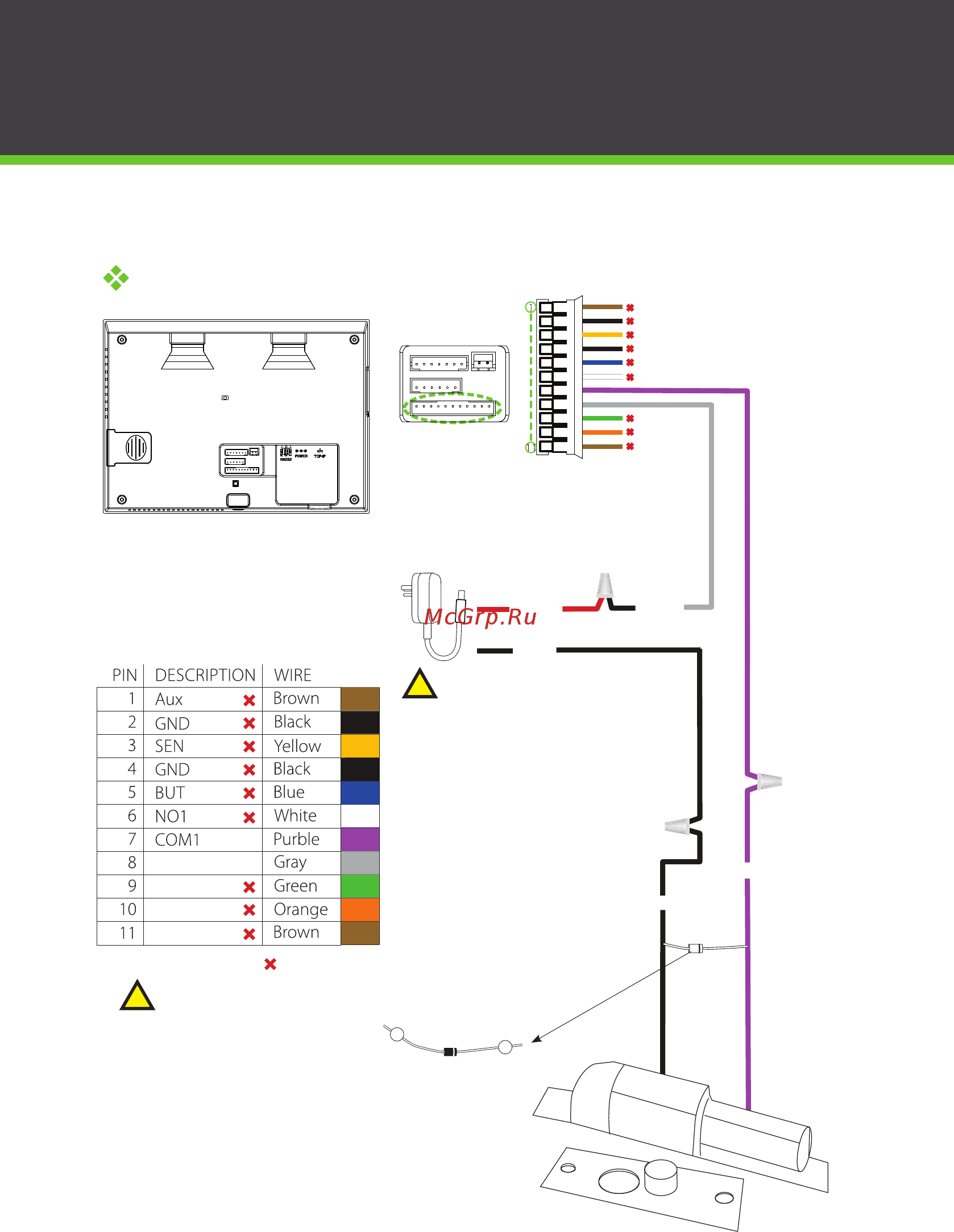

Lock Relay Connection
Normally Closed Lock
GND
NC1
+12V DC
GND
COM1
FR107 Diode
Device not sharing power with the lock
The system supports Normally Opened Lock and Normally Closed Lock. For example the NO LOCK
(normally)opened
-
+
!
Do not reverse the polarity.
!
Maximum30V2Ainput.
Do not use
