- 4 -

2. Dual independent control aerographs

Operation:

Thin line. tart from air delivery, move the trigger backwards only together with the hand to avoid

ripples . When completing, move the trigger first forward and then completely pull it down.

Thick line/line contour. Together with the hand move the trigger still more. Movements of the hand

have to be smooth. When completing switch off the appliance and make a coating by spraying in the

opposite direction.

Circular motions. Start to apply paint in small quantity, making a thin part of the line with the circular

movements; then increase quantity of paint/distance, painting the bigger area with circular

movements. Then, again reduce the quantity of the paint applied and reduce the distance.

Making points by spraying. Use the other hand for stabilization. Start from air delivery, and then

carefully pull the trigger a little bit backwards. For the bigger size points use longer distance and take

more paint.

- After use do not forget to cut off delivery of the compressed air.

“”

5 aintenance.M

Most of the problems which can arise during operation of the aerograph result from incorrect

cleaning. Unsatisfactory spraying process or the clogged nozzle are the usual results of the

incorrect and irregular cleaning. Clean your aerograph with water before every change of the paint

color if using water-based paint and with the appropriate cleaning agents or solvents if you use

special paints. You can leave paint in the reservoir of the aerograph only for a short time.

If you use paints containing pigments e g acrylic their residuals are quickly accumulated on the

needle and on the inner walls of the needle-protection cap. Therefore the needle and the protective

cap have to be frequently washed washing frequency depends on the types of the paints used.

(),

(.. ),

;

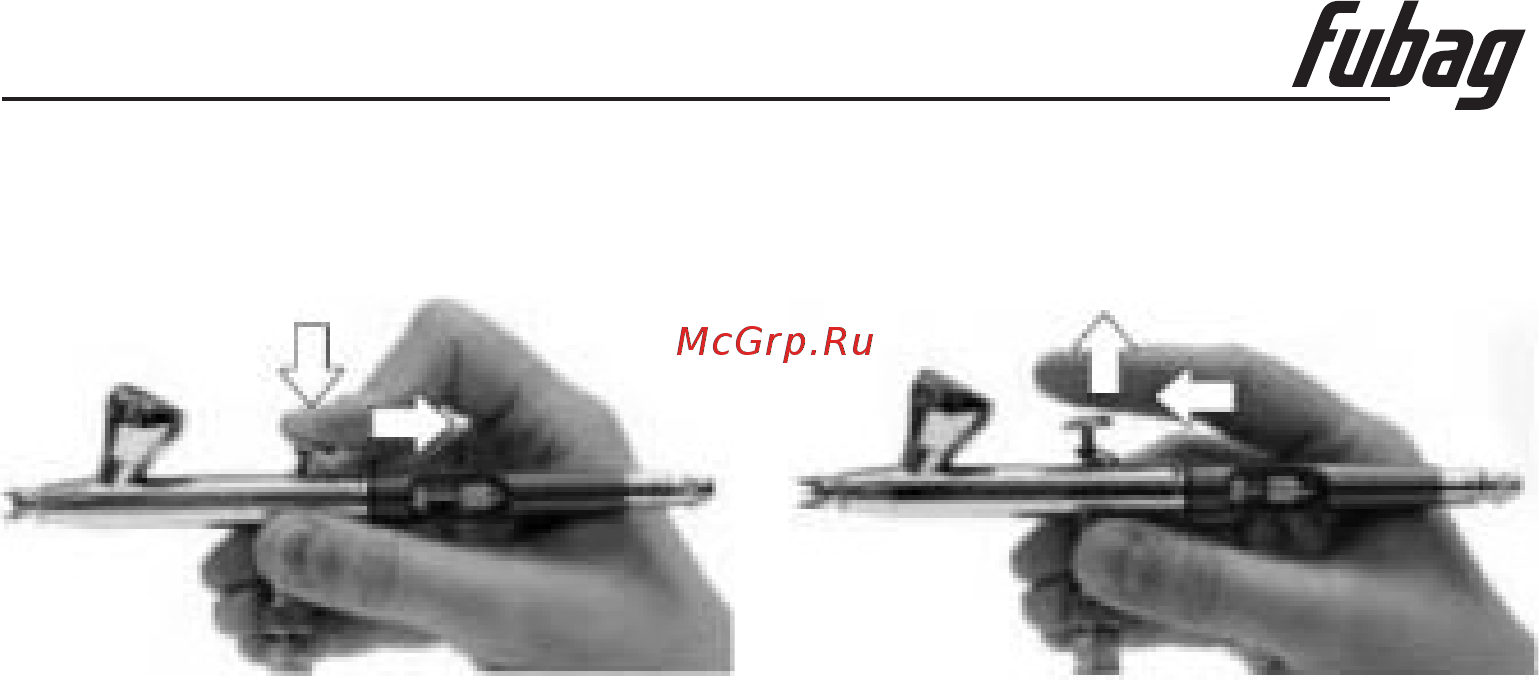

Press trigger to deliver air.

Move the trigger backwards to deliver

air / paint.

Move the trigger forward to stop paint

delivery.

Remove the fingers from the trigger to

stop air delivery.
