Daikin RXYSQ4P8V1B [23/32] Dimensional drawings
![Daikin RXYSQ4P8V1B [23/32] Dimensional drawings](/views2/1706880/page23/bg17.png)
•VRV
®
Systems • Outdoor Unit
21
• Outdoor Unit • VRV
®
III-S heat pump • RXYSQ-P8V1

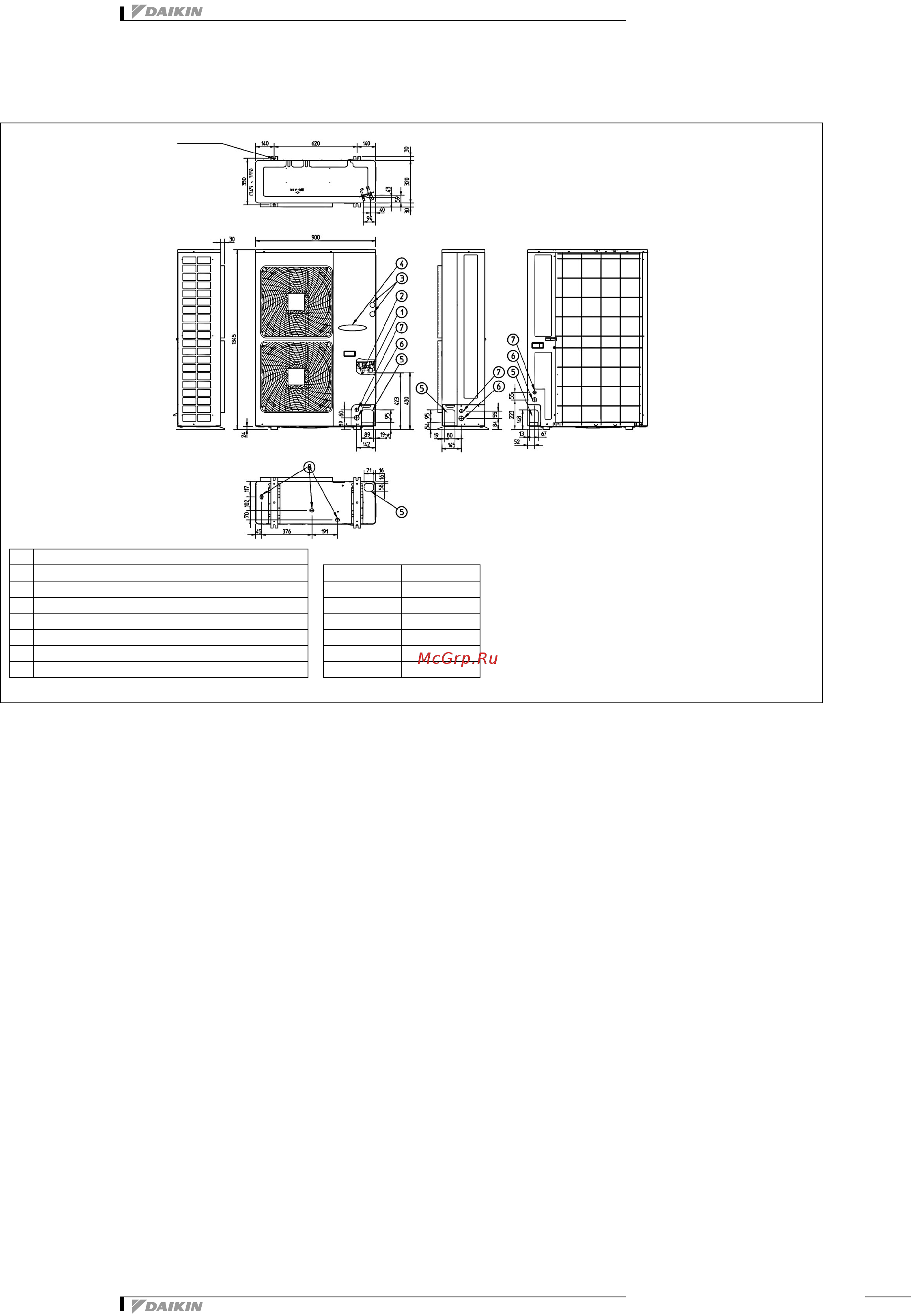

5 Dimensional drawings
5 - 1 Dimensional Drawings
RXYSQ-P8V1B
Hole for anchor
bolt 4-M12
1 Gas pipe connection A
2 Liquid connection pipe Ø9.5 fl are
3 Service port (in the unit) (2x)
4 Electronic connection and grounding terminal M5 (in switch box)
5 Refrigerant piping intake
6 Power supply wiring intake (knock hole Ø34)
7 Control wiring intake (knock hole Ø27)
8 Drain outlet
MODEL A
RXYSQ4P8V1 Ø19.1 BRAZING
RXYSQ5P8V1 Ø19.1 BRAZING
RXYSQ6P8V1 Ø19.1 BRAZING
RXYSQ4P8Y1 Ø19.1 BRAZING
RXYSQ5P8Y1 Ø19.1 BRAZING
RXYSQ6P8Y1 Ø19.1 BRAZING
3TW30374-1
