Si39-303 Operation Procedure
Operation Manual 209

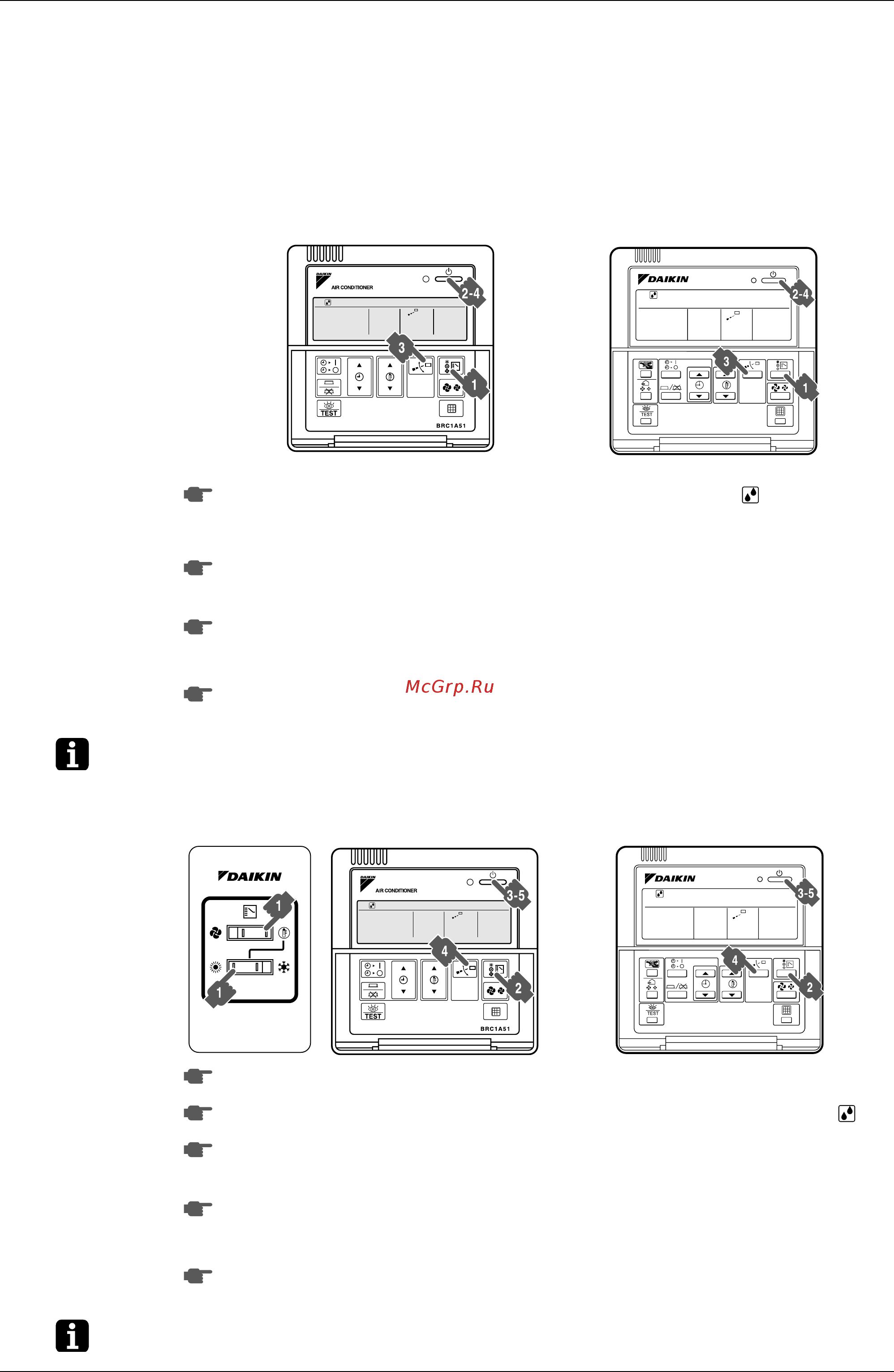

6.2 Program Dry Operation
!
The function of this program is to decrease the humidity in your room with a minimum
temperature decrease.
!
The micro computer automatically determines temperature and fan speed.
!
The system does not go into operation if the room temperature is low.
For systems without cool/heat changeover remote control switch
RXYQ series REYQ series
Press the operation mode selector button several times and select “ ”
(program dry operation).
Press the on/off button
The operation lamp lights up and the system starts operation.
Press the air flow direction adjust button (only for FXC, FXF, FXH, FXK, FXA). Refer to
the chapter “Adjusting the air flow direction” for details.
Stopping the system
Press the on/off button once again.
The operation lamp goes off and the system stops operation.
Notes:
!
Do not turn off power immediately after the unit stops, but wait for at least 5 minutes.
For systems with cool/heat changeover remote control switch
RXYQ series REYQ series
Select cooling operation mode with the cool/heat changeover remote control switch.
Press the operation mode selector button several times and select program dry “ ”.
Press the on/off button
The operation lamp lights up and the system starts operation.
Press the air flow direction adjust button (only for FXC, FXF, FXH, FXK, FXA). Refer to
the chapter “Adjusting the air flow direction” for details.
Stopping the system
Press the on/off button once again.
The operation lamp goes off and the system stops operation.
Notes:
!
Do not turn off power immediately after the unit stops, but wait for at least 5 minutes.
1
2
3
4
1
2
3
4
5
