第二章: 硬件安装 | 13
B150ET3
2�6 跳线设置

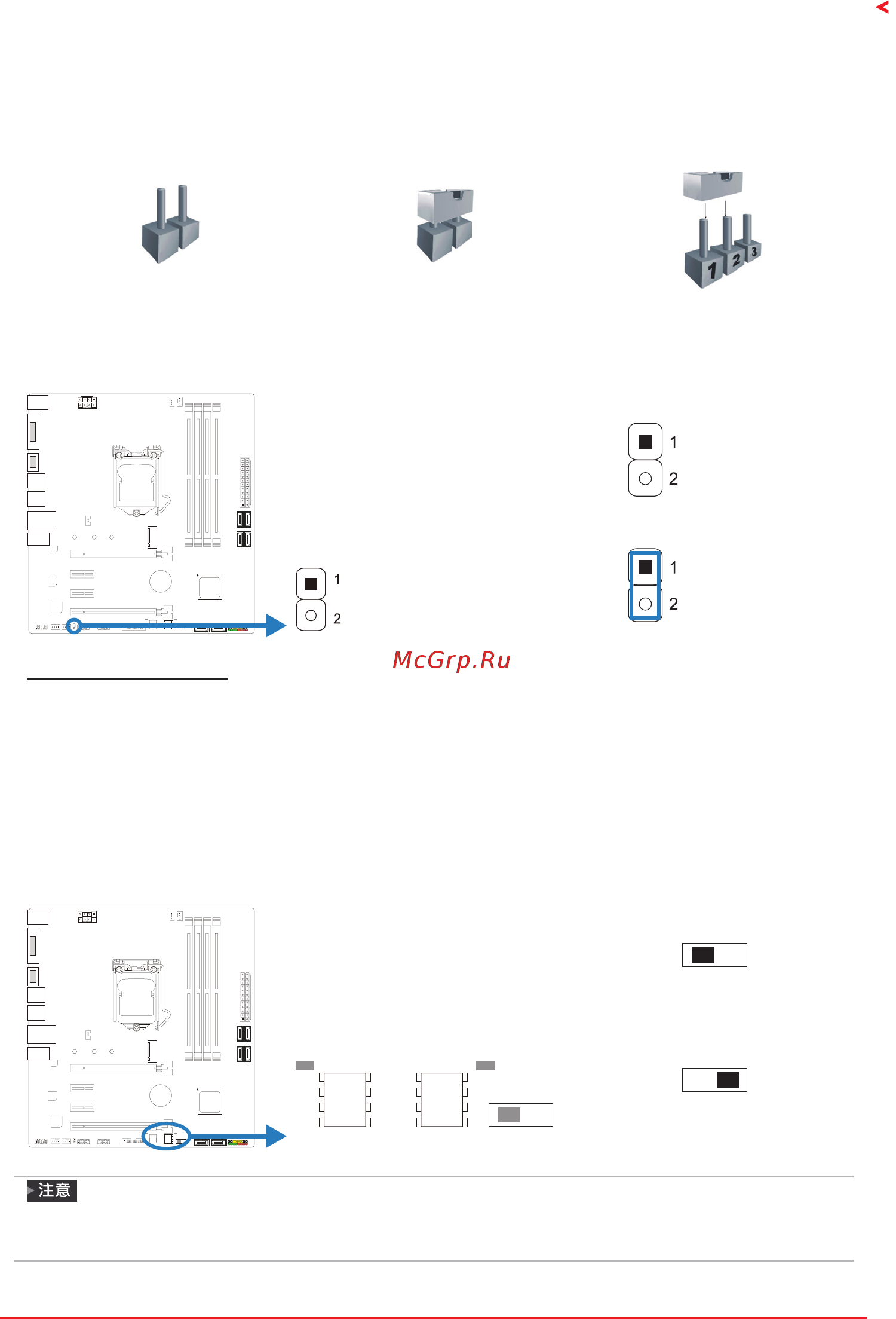

下图展示如何设置跳线。当跳帽放置在针脚上时，跳线为闭合(close)状态。否则跳线为
断开(open)状态。
Pin 打开 Pin 闭合 Pin 1-2 闭合
JCMOS1: 清空CMOS 跳线
用户可清空CMOS数据并恢复BIOS安全设置，请按照以下步骤操作以免损坏主板。
Pin 1-2 打开: 正常操作(默认)
Pin 1-2 闭合: 清空CMOS数据
清空CMOS数据过程:
1. 断开AC电源。
2. 将跳线设置成1-2接脚闭合，建议可以使用一个金属物体如螺丝刀触碰1-2接脚。
3. 等待5秒钟。
4. 清空CMOS数据後，请确认跳线设置成1-2接脚打开。
5. 接通AC电源。
6. 开机然后按下<Del>键进入BIOS设置。
BIOS_SW1: 双BIOS切换开关
此开关让你从双BIOS (ROM1/ROM2) 中选择其一作为开机之用。
BIOS_SW1
ROM1_LED ROM2_LED
ROM1
ROM2
主BIOS (ROM1)运作中
LED指示燈（ROM1_LED）將会点
亮
，顯示主BIOS正运作中。
备用BIOS (ROM2)运作中
LED指示燈（ROM2_LED）將会点
亮
，顯示备用BIOS正运作中。
»
当你的系统開機時，不要使用此开关。
»
在刷新BIOS之前，请确保该开关设置为你想要刷新的BIOS ROM。
