Chapter 3: UEFI BIOS & Soware | 31

Z270GT6

H/W Monitor

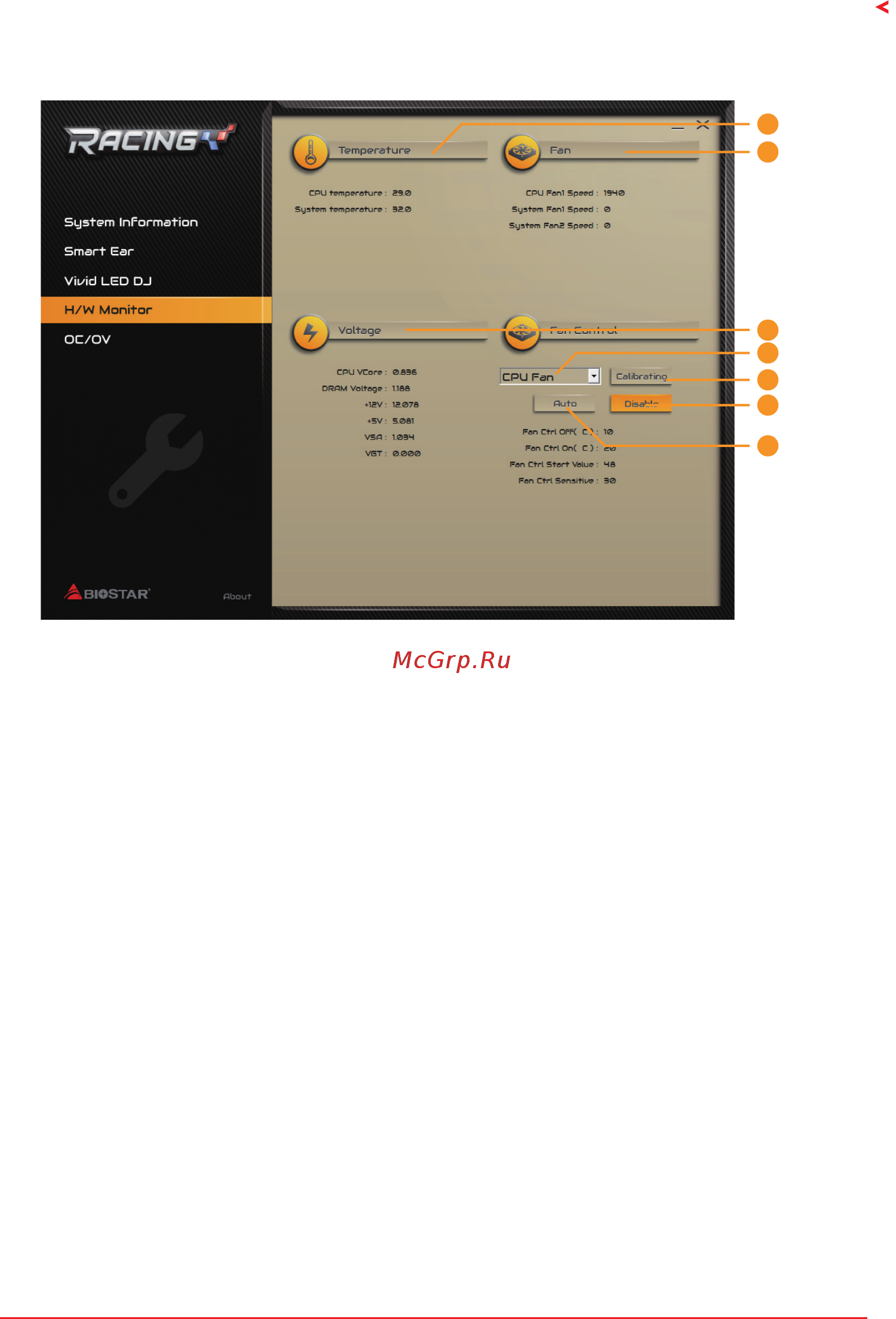

The HW Monitor tab allows you to monitor hardware voltage, fan speed, and temperature.

1. Temperature: Shows the current CPU and system temperature.

2. Fan: Shows the current fans’ speed.

3. Voltage: Shows the current voltages of CPU and memory.

4. CPU Fan/System Fan: Chooses your seng fan.

5. Calibraon: Calibrates fan speed.

6. Disable: Disables smart fan funcon.

7. Auto: Enables smart fan funcon.
