Chapter 2: Hardware installaon | 19
Z270GT6

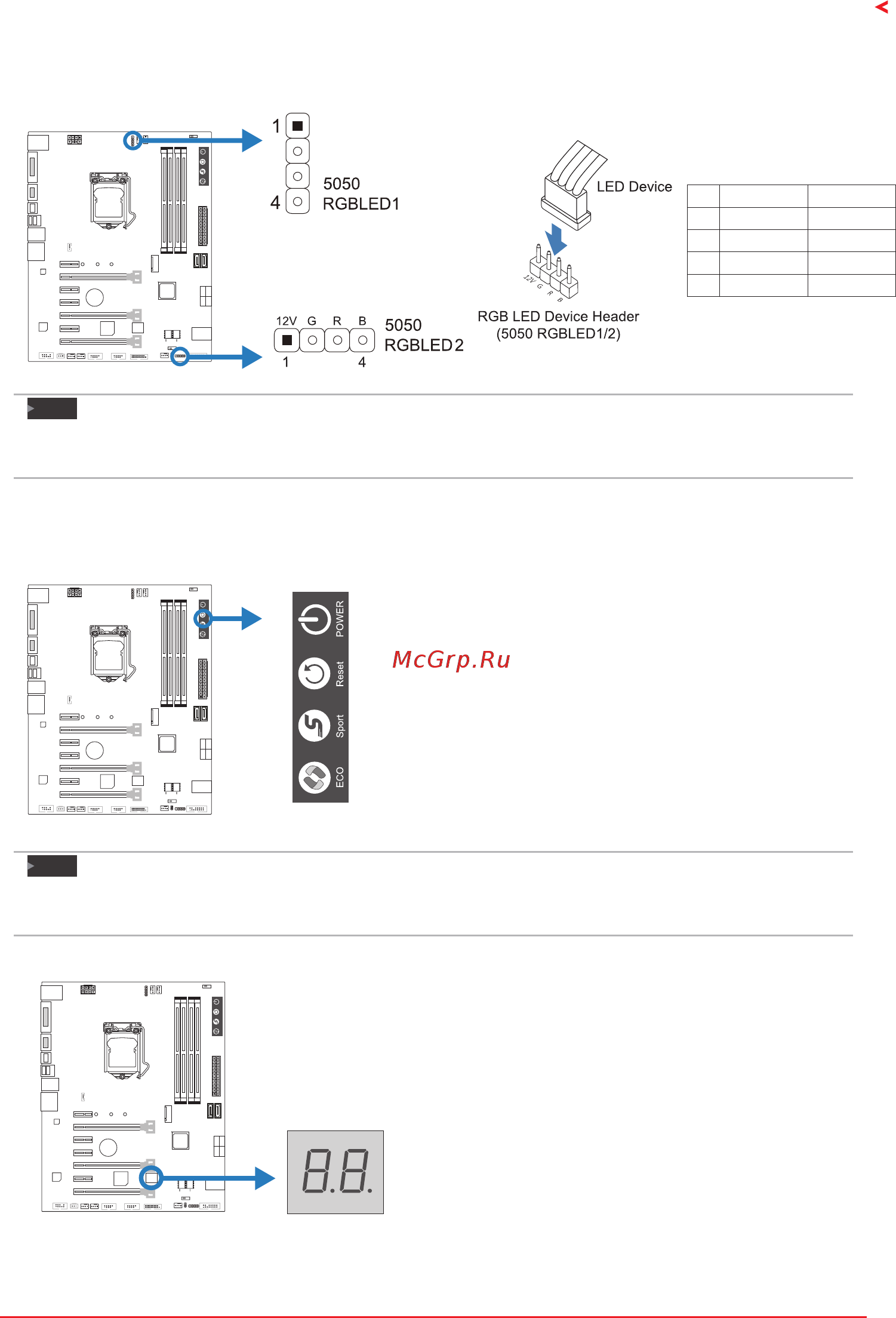

5050_RGBLED1/2: RGB LED Device (5050 SMD) Header
This header providers 12V power and RGB control pins for RGB LED Device (5050 SMD).
Pin Cable Color Assignment
1 12V (Black) VCC12
2 G (Green) LED_GREEN
3 R (Red) LED_RED
4 B (Blue) LED_BLUE
Note
»
EnsureproperpinconnecngtoyourLEDdevice,wrongconneconmaydamageyourLEDdeviceor
motherboard.
2.8 Buttons, Indicators & LEDs
Touch Buons
ECO Mode:
Enabled ECO mode, it allows you save energy by slightly
reducing system performance.
Sport Mode:
Enabled Sport mode, it allows you to maximize system
performance but may use more energy.
Reset:
Touch this buon to reboot the system.
Power:
Touch this buon to turn-on/o the system.
Note
»
ECO/SPORTmodebuonswillonlybeavailablewhenrunningRACINGGTUlityinWindows
environment.
Indicators
BIOS POST Code Indicator:
The indicator will show POST code while
boong. Please refer to Chapter 4.3 for all the
BIOS POST codes.
