Biostar Z270GT6 Версия 5.x [57/83] 安装m 2 cooling 散热片

第二章: 硬件安装 | 13

Z270GT6

安装M�2 COOLING 散热片

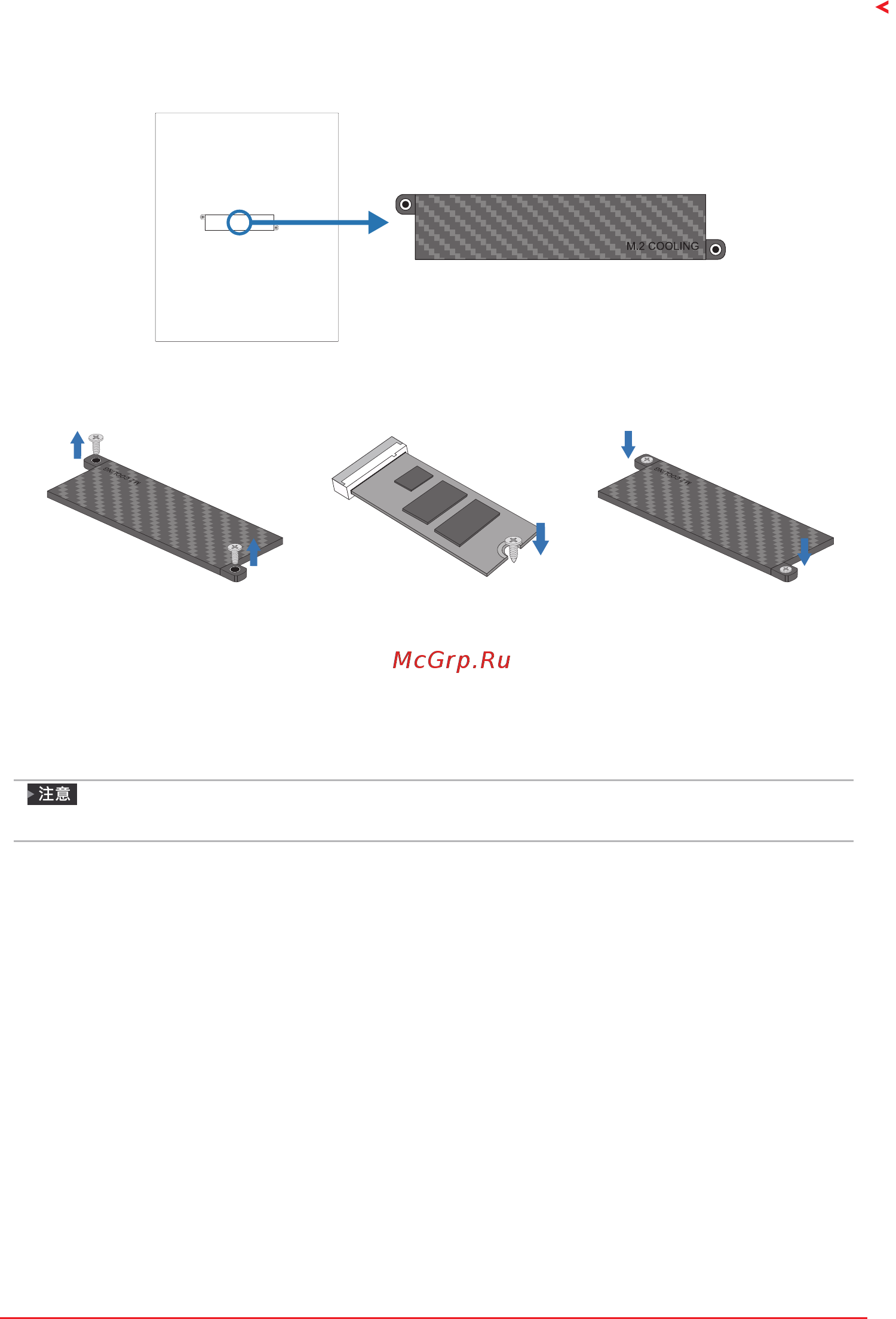

移除M.2 COOLING 散热片步骤：

步骤 1：

在M.2 COOLING散热片的

边缘有两个螺丝，并在插入

M.2 SSD卡之前拧开它们。

步骤 2：

将M.2 SSD卡插入M.2插

槽，并将其拧到主板上。

步骤 3：

安装M.2 SSD卡后，将M.2

COOLING散热片放在M.2

插槽上，并拧紧螺钉将散热

器固定到主板上。

请遵循M.2COOLING 散热片安装步骤，移除M.2 COOLING 散热片后，即可安装M.2 SSD卡。
