Biostar B350GT3 Версия 6.1 [43/72] 4 后置面板接口

第一章: 主板介绍 | 5

B350GT3 / X370GT3

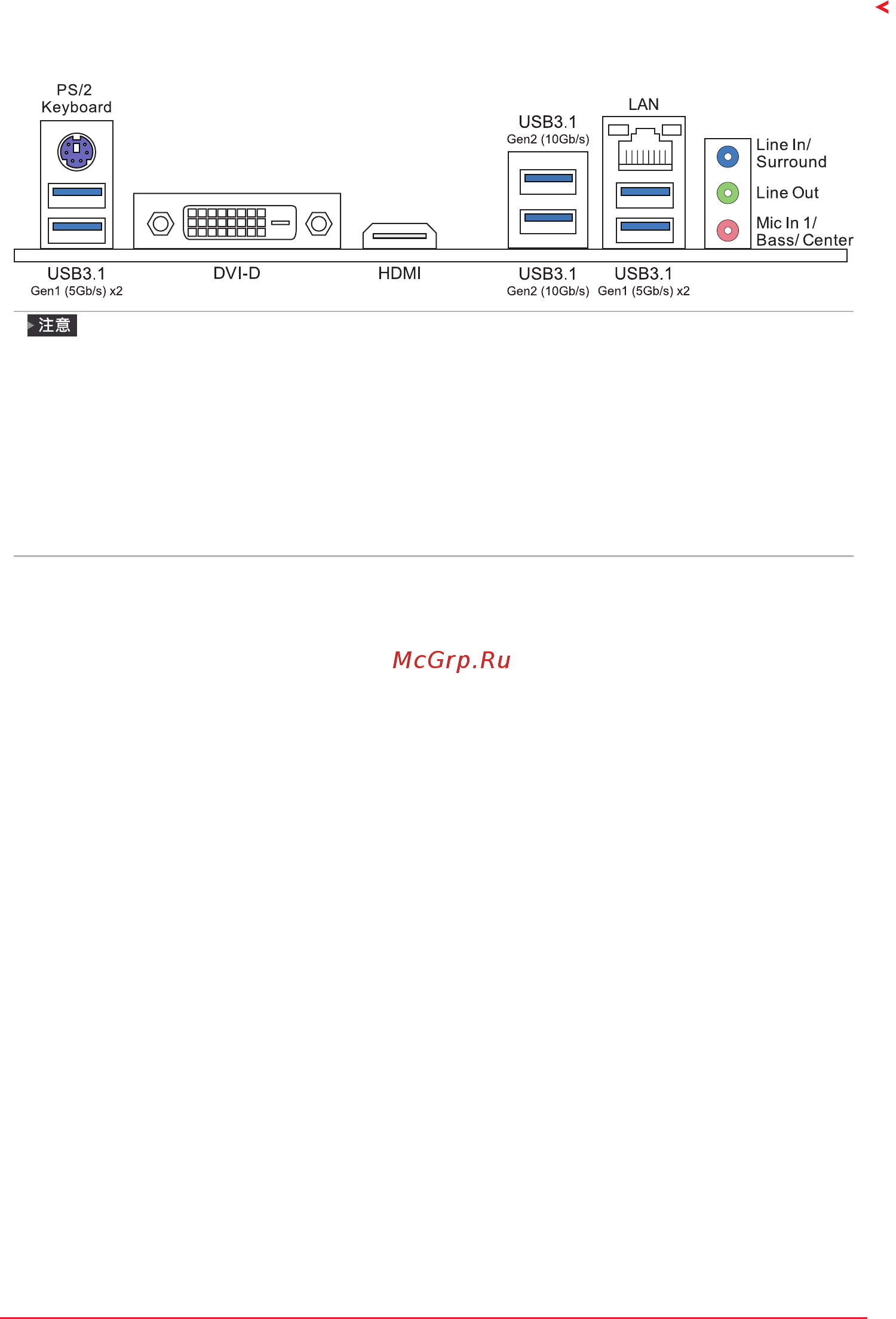

1�4 后置面板接口

带集成显卡的AMD系列处理器才支持DVI-D / HDMI输出端口。

由于音频芯片支持高保真音频规格，各音频插座的功能由软件定义，上面所列出的各音频插孔

的输入/输出功能表示其默认设置。当连接外部麦克风到音频接口时，请使用Line In（蓝色）和

Mic In（粉红色）插孔。

最高分辨率：

DVI-D: 1920 x 1200 @60Hz

HDMI: 4096 x 2160 @24Hz 或 3840 x 2160 @30Hz

Athlon 200GE 处理器不支持HDMI端口信号。

当使用前置HD音频插孔并插入耳机/麦克风时，后置声音将自动禁用。
