Biostar B350GT3 Версия 6.1 [45/72] 第二章硬件安装

第二章: 硬件安装 | 7

B350GT3 / X370GT3

第二章: 硬件安装

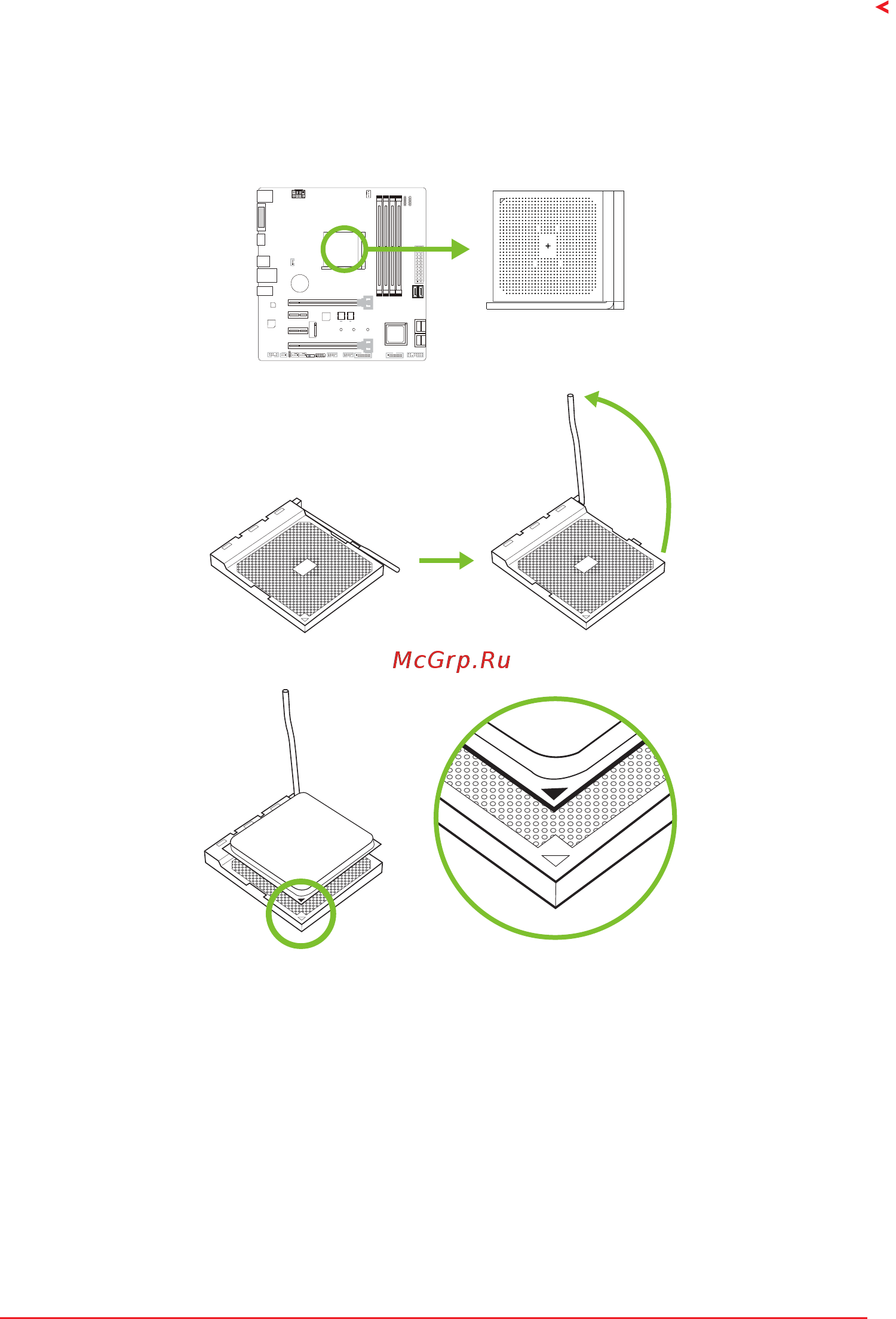

2�1 中央处理器(CPU)

步骤1: 找到主板上的CPU插槽。

步骤2: 将固定拉杆从插槽处水平拉起至90度。

步骤3: 找到插槽上的白色三角，CPU上的金点应指向此白色三角，CPU必须按正确的方

向放入。
