第三章: UEFI BIOS和软件 | 29

B350GT3 / X370GT3

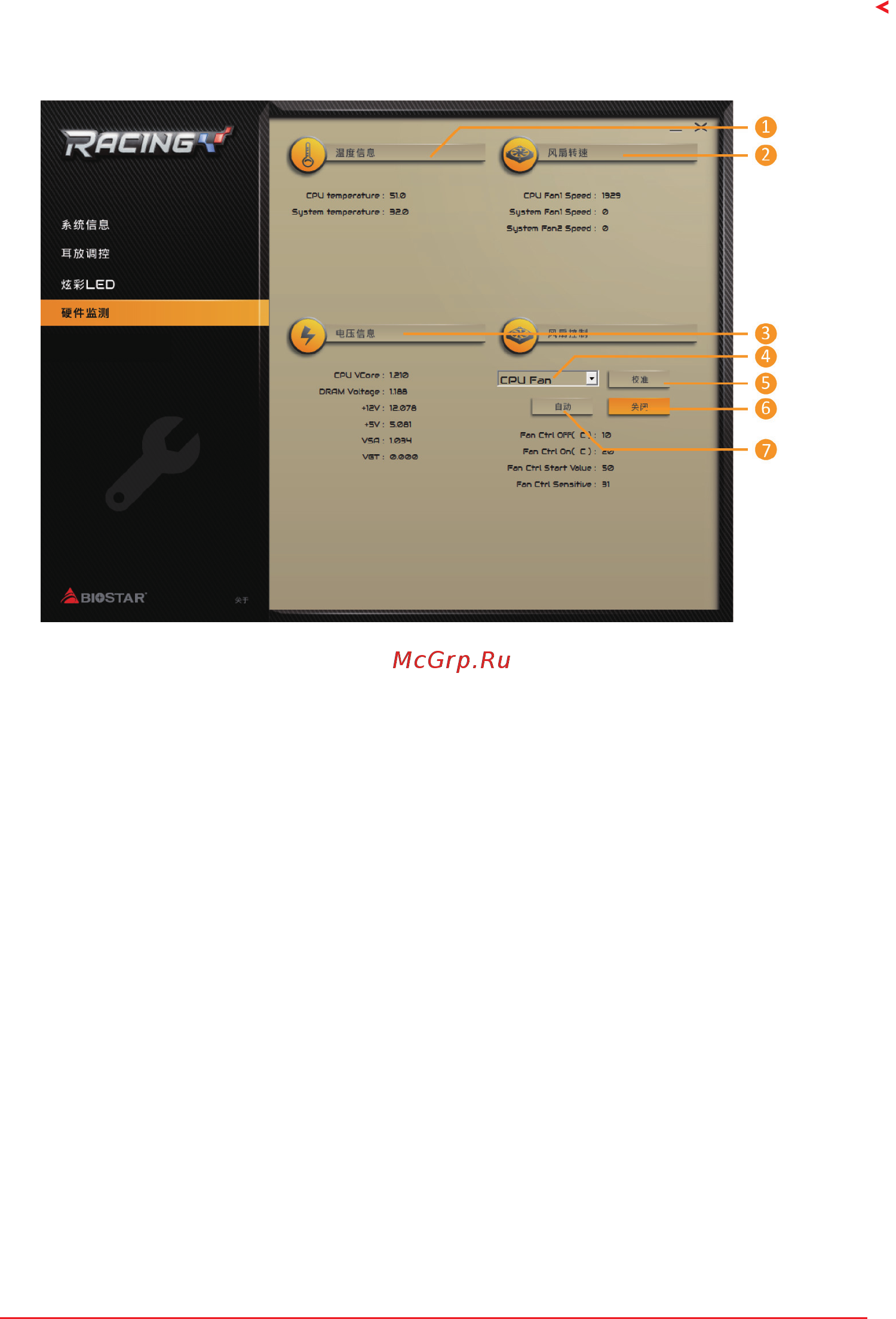

硬件监测

允许您监控硬件电压，风扇转速和温度。

1� 温度信息：显示当前CPU和系统温度。

2� 风扇转速：显示当前风扇速度。

3� 电压信息：显示CPU和内存的当前电压。

4� CPU风扇/系统风扇：选择你的设置风扇。

5� 校准：校准风扇转速。

6� 关闭：关闭智能风扇功能。

7� 自动：启用智能风扇功能。
