Biostar X370GT5 Версия 5.x [54/72] F_usb1 2 前置面板usb 2 0接头

16 | 第二章: 硬件安装

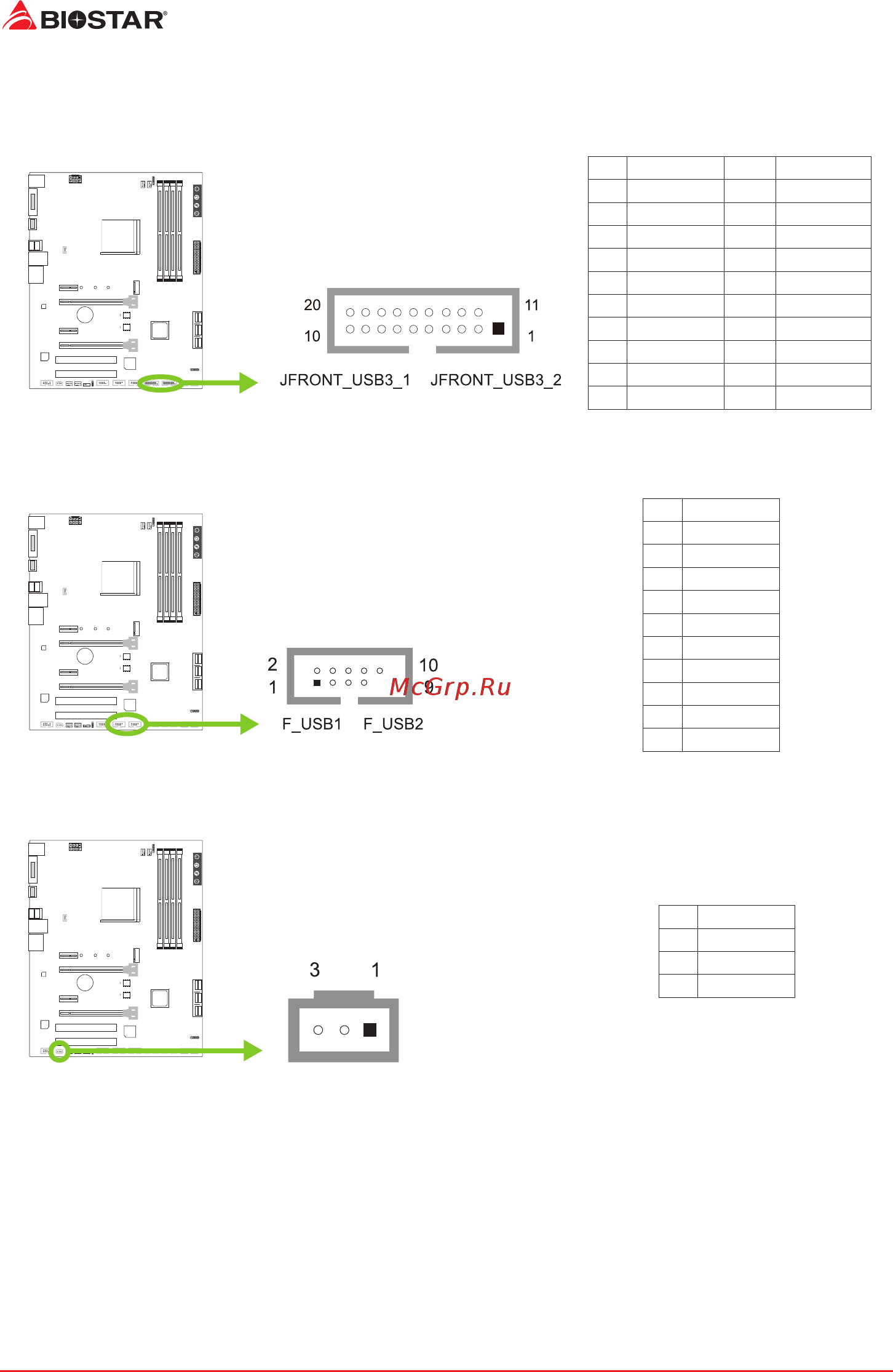

JFRONT_USB3_1/2: 前置面板USB 3�1 Gen1 (5Gb/s)接头

(JFRONT_USB3_2仅X370GT5支持)

PC前置面板支持附加的USB数据线，也可连接即插即用外围设备。

针定义针定义

1 VBUS0 11 D2+

2 SSRX1- 12 D2-

3 SSRX1+ 13 接地

4 接地 14 SSTX2+

5 SSTX1- 15 SSTX2-

6 SSTX1+ 16 接地

7 接地 17 SSRX2+

8 D1- 18 SSRX2-

9 D1+ 19 VBUS1

10 ID 20 Key

F_USB1/2: 前置面板USB 2�0接头

PC前置面板支持附加的USB数据线，也可连接即插即用外围设备。

针定义

1 +5V (fused)

2 +5V (fused)

3 USB-

4 USB-

5 USB+

6 USB+

7 接地

8 接地

9 Key

10 NC

JSPDIFOUT1: 数字音频输出接口

此接口连接PCI支架SPDIF输出接头。

针定义

1 +5V

2 SPDIF_OUT

3 接地
