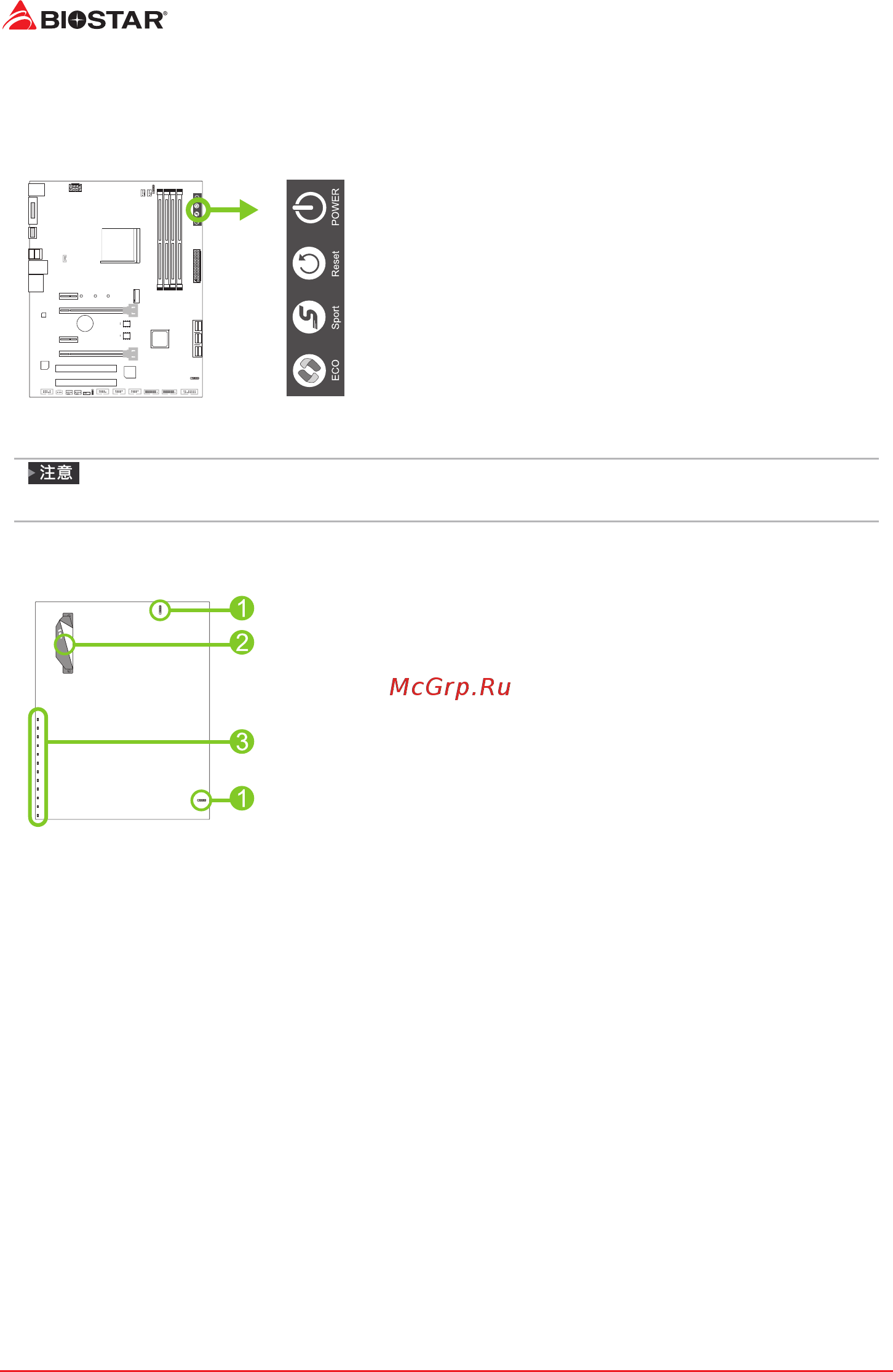

Biostar X370GT5 Версия 5.x [56/72] 8 智能开关和led灯

18 | 第二章: 硬件安装

2�8 智能开关和LED灯

触控按钮

ECO模式：

启动ECO模式，会在可能情况下稍微地降低

系统性能，以节省能源。

SPORT模式：

启动SPORT模式，会以最大限度提高系统性

能，但可能使用较多的能源。

Reset：

轻触此按钮以重启系统。

Power：

轻触此按钮以开启或关闭系统。

» ECO/SPORT 模式按钮仅限于Windows环境下运行RACING GT软件时才可以使用。

LED灯

下面的LED灯由RACING GT软件控制。请参考3.3章节的软件设置。

1. RGB LED 接头

2. MOSFET散热片LED灯

3. 板载LED灯(x5)
