Biostar X470GTA Версия 5.x [43/72] 4 后置面板接口
![Biostar X470GTA Версия 5.x [43/72] 4 后置面板接口](/views2/1707927/page43/bg2b.png)
第一章: 主板介绍 | 5
X470GTA

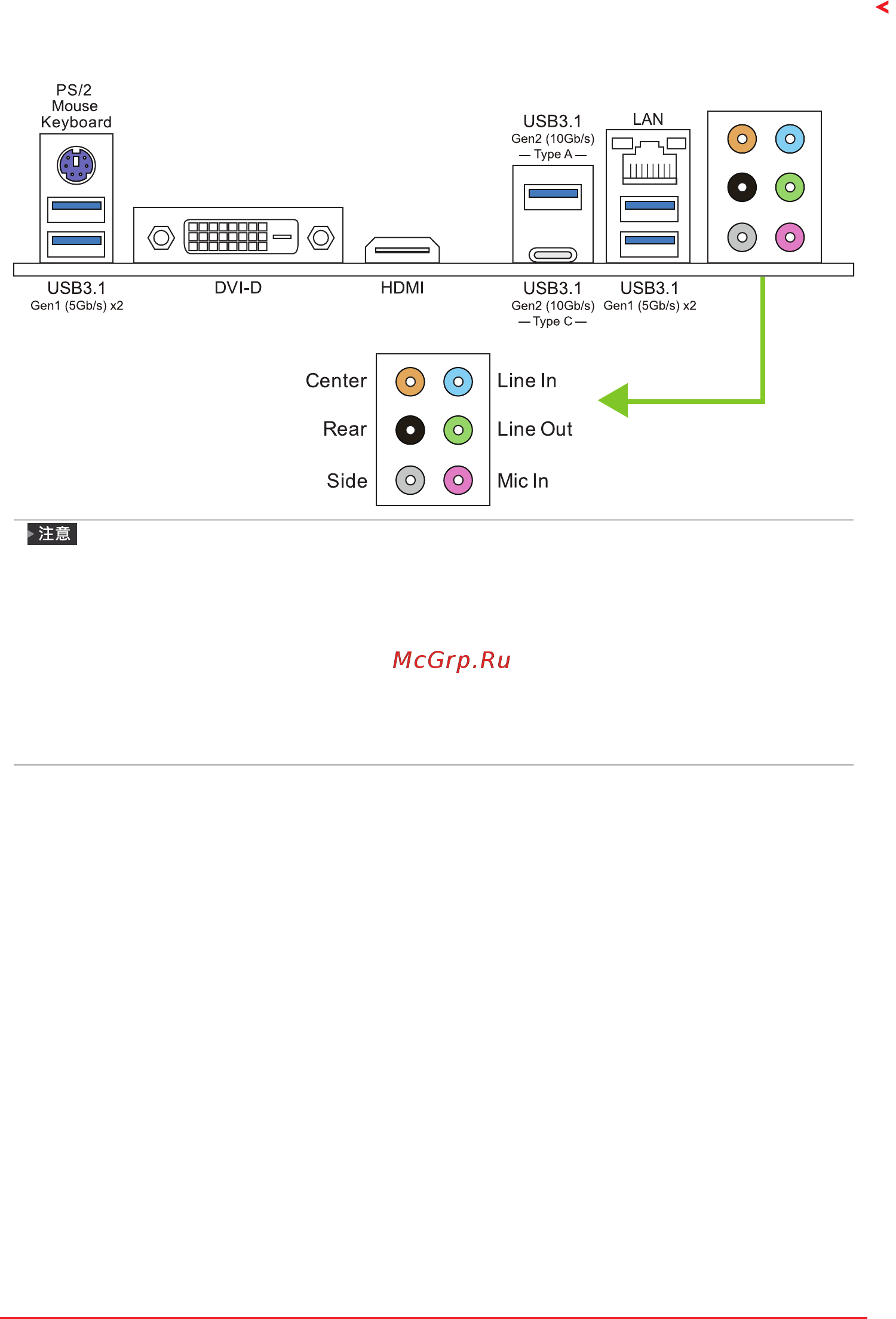

1�4 后置面板接口
»
带集成显卡的AMD系列处理器才支持DVI-D / HDMI输出端口。
»
由于音频芯片支持高保真音频规格，各音频插座的功能由软件定义，上面所列出的各音频插孔
的输入/输出功能表示其默认设置。当连接外部麦克风到音频接口时，请使用Line In（蓝色） 和
Mic In（粉红色）插孔。
»
最 高 分 辨 率：
DVI-D: 1920 x 1200 @60Hz
HDMI: 4096 x 2160 @24Hz 或 3840 x 2160@30Hz
»
Athlon 200GE 处理器不支持HDMI端口信号。
»
当使用前置HD音频插孔并插入耳机/麦克风时，后置声音将自动禁用。
