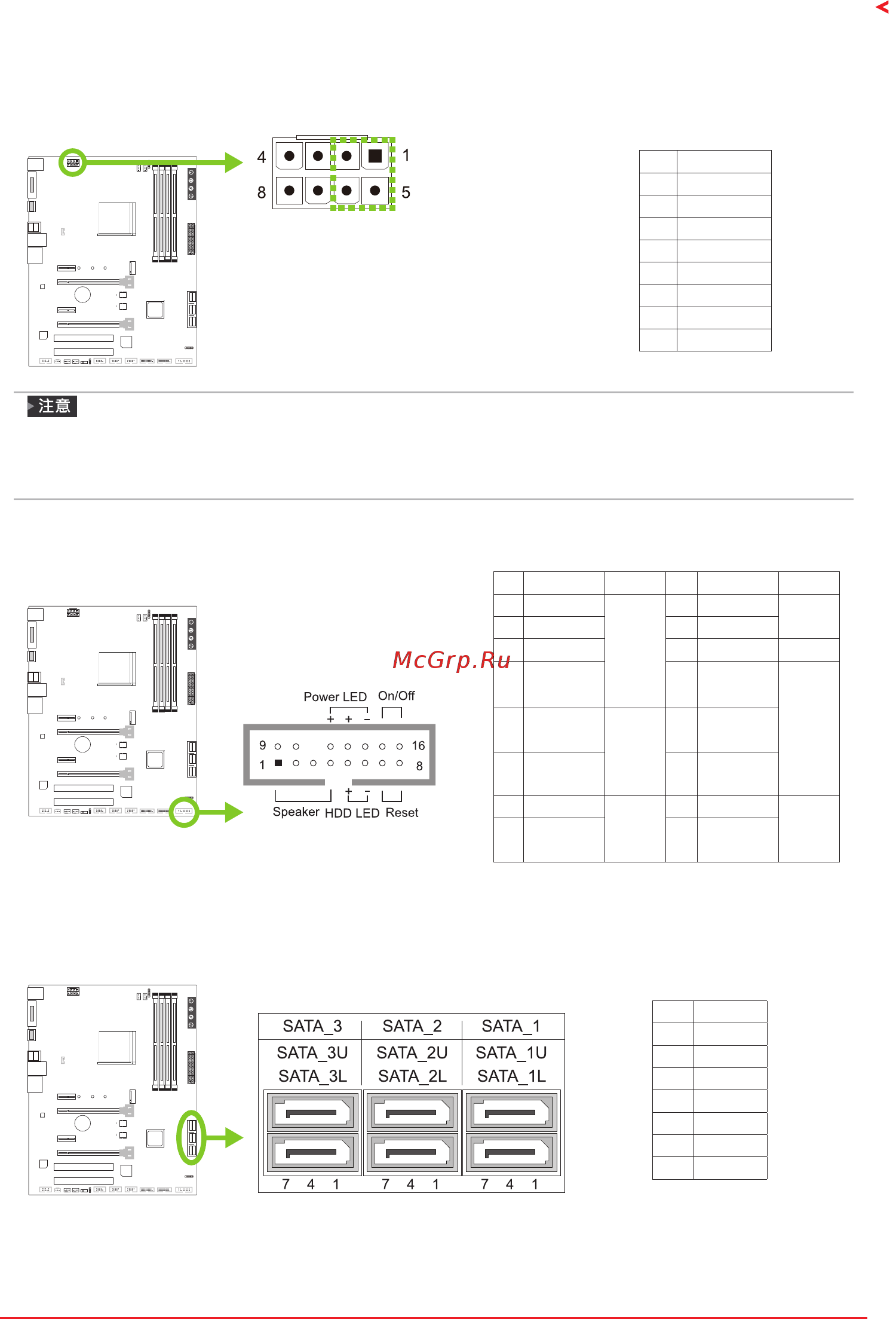

第二章: 硬件安装 | 15
X470GTA
ATXPWR2: ATX电源接口
此接口给CPU电路提供+12V电压。若CPU电源插头为4针脚，请将其插入ATXPWR2的
1-2-5-6针脚。
针 定义
1 +12V
2 +12V
3 +12V
4 +12V
5 接地
6 接地
7 接地
8 接地
»
开机前，请确保ATXPWR1和ATXPWR2接口都已插上电源。
»
电压不足可能导致系统不稳或者外围设备不能正常运行。当配置使用大功率设备的系统时，建议
您 使 用 带 有 大 功 率 输 出 的电 源。
PANEL1: 前置面板接头
此16针脚接口包含开机，重启，硬盘指示灯，电源指示灯和扬声器接口。
针 定义 功能 针 定义 功能
1 +5V
扬声器
接口
9 N/A
N/A
2 N/A 10 N/A
3 N/A 11 N/A N/A
4 扬声器 12
Power
LED (+)
电源指
示灯
5
HDD LED
(+)
硬盘指
示灯
13
Power
LED (+)
6
HDD LED
(-)
14
Power
LED (-)
7 接地
重启按
钮
15 电源按钮
开机按
钮
8
Reset
control
16 接地
SATA_1/SATA_2/SATA_3: 串行ATA 6�0 Gb/s 接口
此接口通过SATA数据线连接SATA硬盘。
针 定义
1 接地
2 TX+
3 TX-
4 接地
5 RX-
6 RX+
7 接地
