12 | 第二章: 硬件安装
Ryzen - DDR最高频率支持表
最高频率 DIMMA1 DIMMA2 DIMMB1 DIMMB2
DDR4-2667 --
SR -- --
DDR4-2667 --
DR -- --
DDR4-2667 --
SR -- SR
DDR4-2400 --
DR -- DR
DDR4-2133
SR SR SR SR
DDR4-1866
DR DR DR DR
»
SR - Single-rank DIMM, 1R x4 or 1R x8。
»
DR - Dual-rank DIMMs, 2R x4 or 2R x8。
»
为了更好的DDR4模块兼容性，请按照上述列表安装您的DDR4模块。

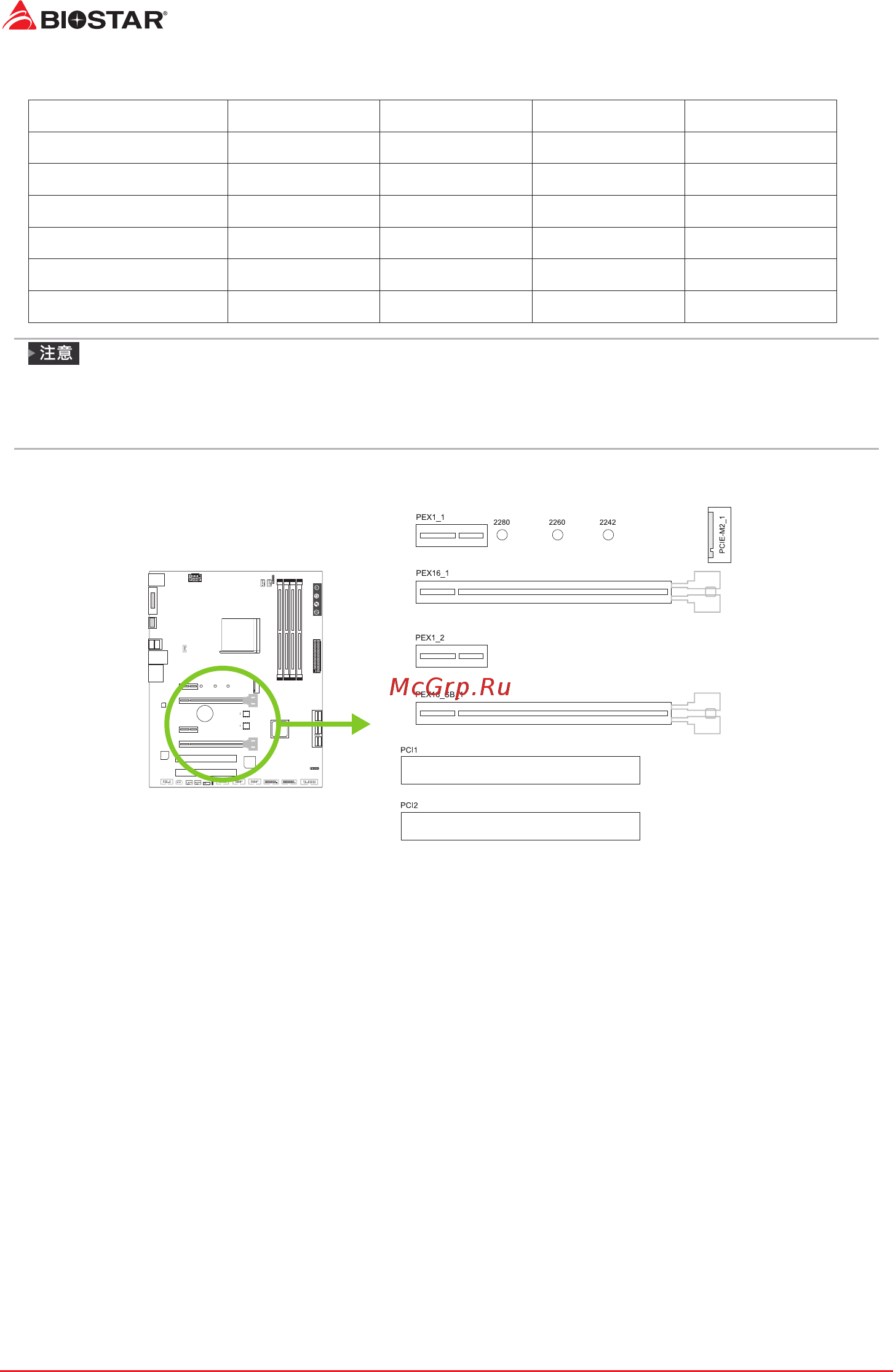

2�5 扩展槽
PCI1/ PCI2: 外围设备互联插槽
• P C I 插 槽 支 持 用 于 P C 的 扩 展 卡 包 括：网 卡，声 卡，调 制 解 调 器，电 视 调 谐 器 扩 展 卡 和 其
他 符合P C I 标 准 的 扩展卡。
PEX16_1: PCI-Express Gen3 x16 插槽 (x16 通道) (带宽取决于CPU)
• 符合PCI-Express 3.0规范。
• 同步单向最大理论带宽为16GB/s，总带宽为32GB/s。
PEX16_SB_1: PCI-Express Gen2 x16 插槽 (x1 通道)
• 符合PCI-Express 2.0规范。
• 同步单向最大理论带宽为500MB/s，总带宽为1GB/s。
PEX1_1/1_2: PCI-Express Gen2 x1 插槽
• 符合PCI-Express 2.0规范。
• 同步单向最大理论带宽为500MB/s，总带宽为1GB/s。
