Chapter 3: UEFI BIOS & Soware | 35

B450GT3

About

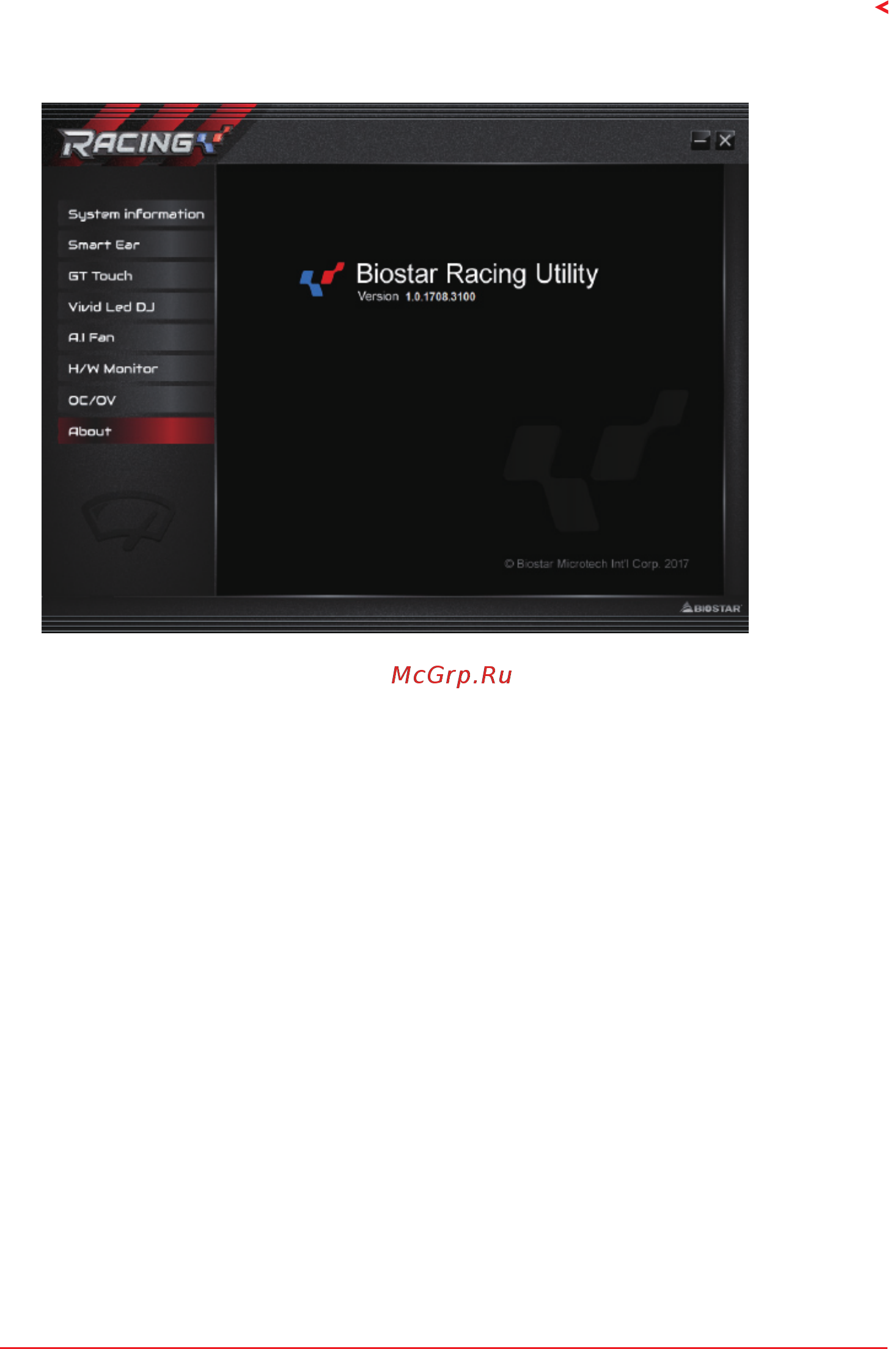

The About menu to display the Racing GT EVO Ulity version informaon.
