第三章: UEFI BIOS和软件 | 33

B450GT3

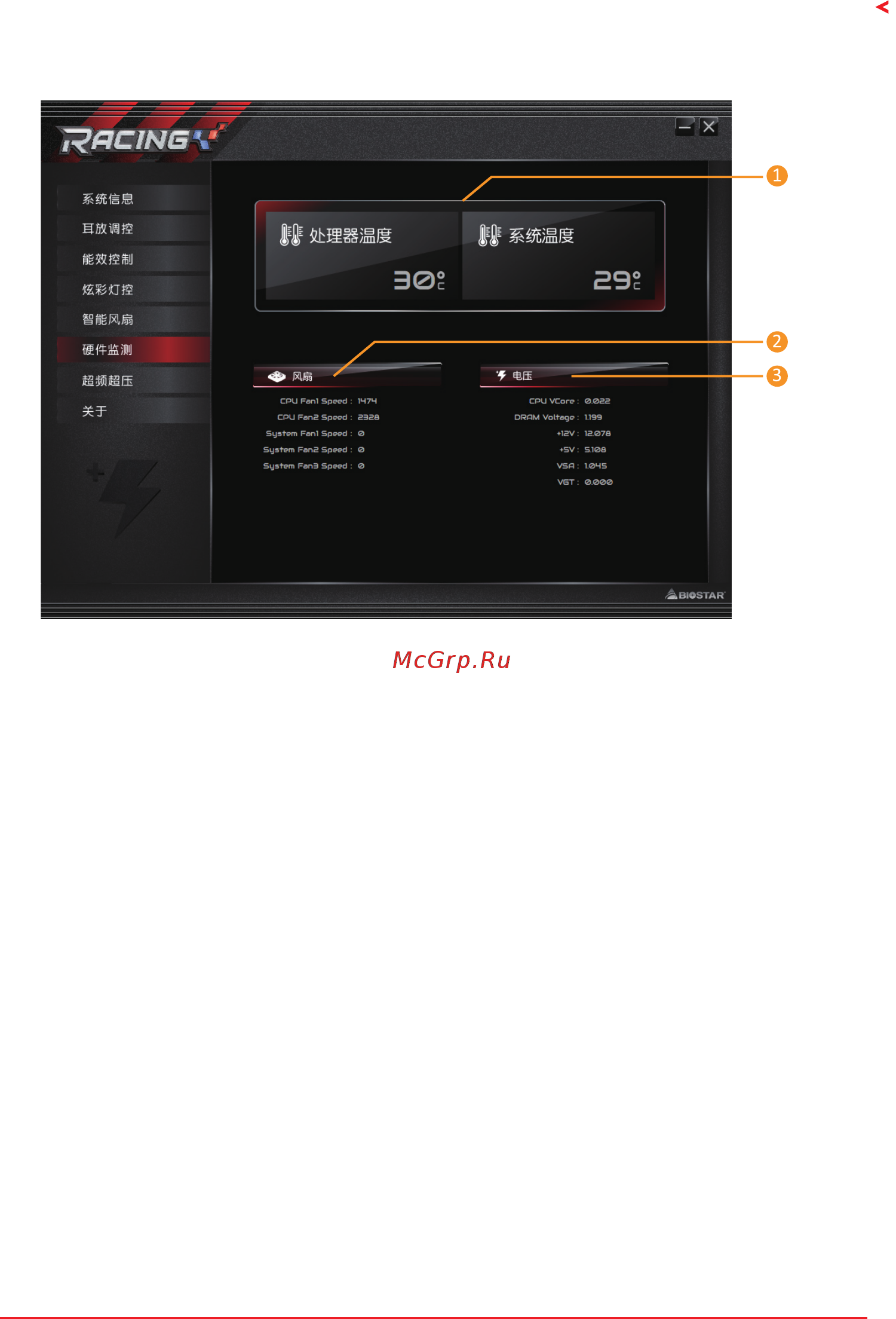

硬件监测

允许您监控硬件电压，风扇转速和温度。

1� 处理器温度/系统温度：显示当前CPU和系统温度。

2� 风扇转速：显示当前风扇速度。

3� 电压：显示CPU和内存的当前电压。
