SiE30-408 Points of Analysis
Service Checker Type3 Application Edition 187

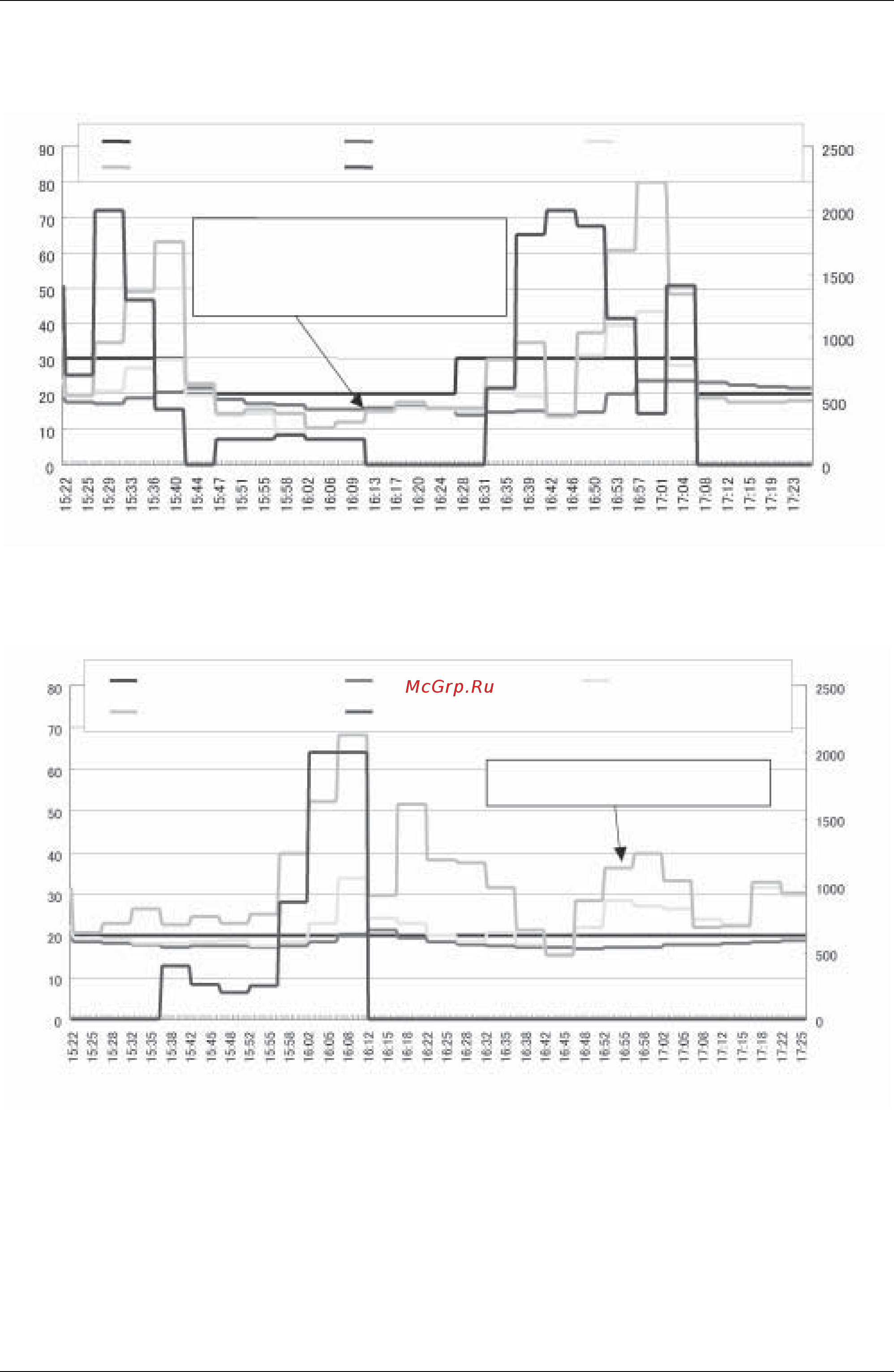

Graph of indoor unit (2)
Indoor unit (2)
Graph of indoor unit (3)
Indoor unit (3)
IN2 - Remote controller set temp.
IN2 - Indoor gas pipe temp.
IN2 - Suction temp. IN2 - Indoor liquid pipe temp.
IN2 - Indoor EV opening degree
Temp. [°C]
Time
Expansion valve opening degree [pls]
The opening degree of electronic expansion valve
and the temperatures of liquid and gas pipes vary in
asimilar manner. With the electronic expansion
valve set to 0 pls, the gas pipe temperature only
risesapproximately up the room temperature.
IN3 - Remote controller set temp.
IN3 - Indoor gas pipe temp.
IN3 - Suction temp. IN3 - Indoor liquid pipe temp.
IN3 - Indoor EV opening degree
Temp. [°C]
Time
Expansion valve opening degree [pls]
Even though the electronic expansion valve is
set to 0 plc, the gas pipe temperature rises.
