INSTALLATION

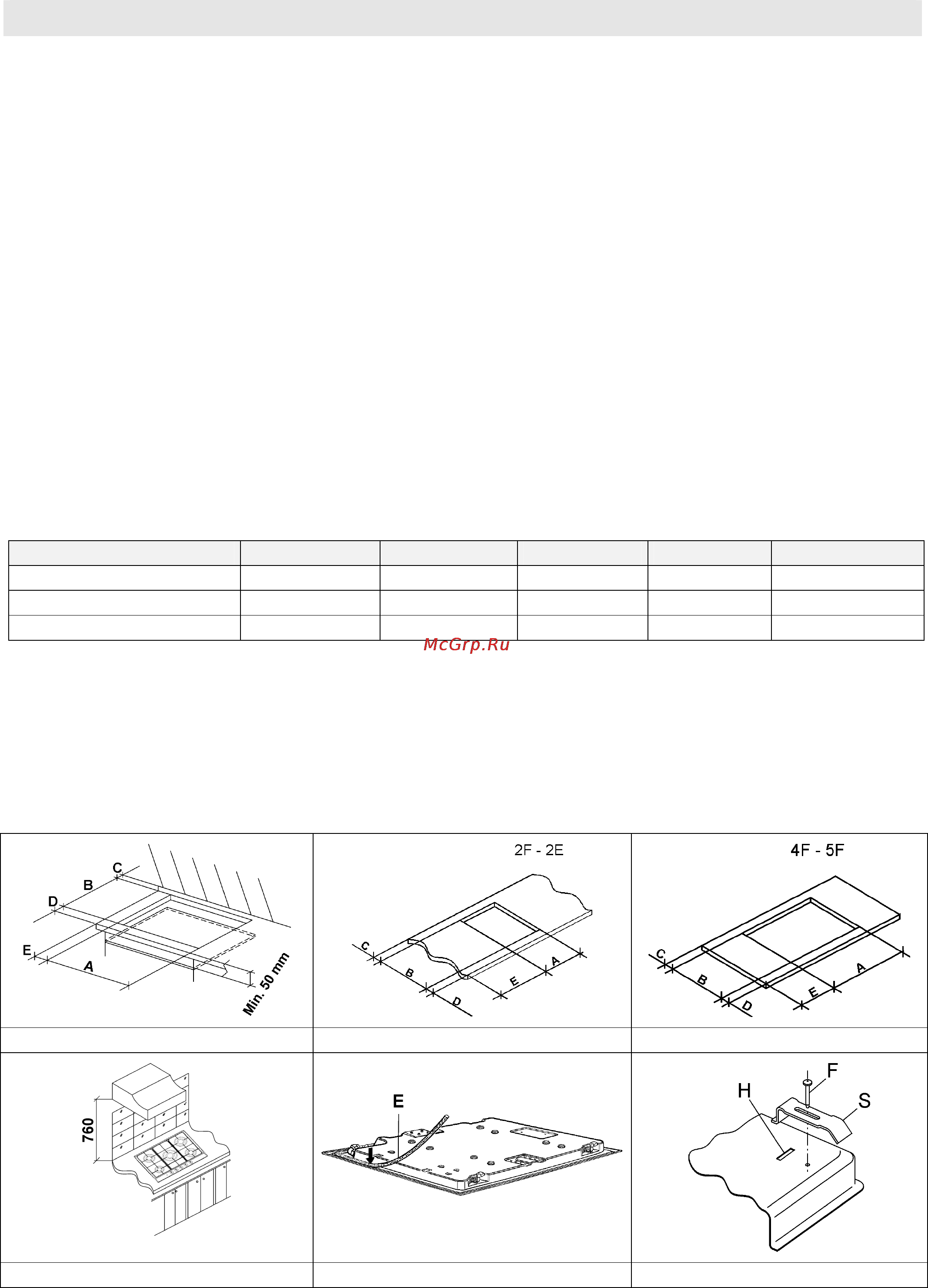

4) FIXING THE HOT PLATE

The hot plate has a special seal which prevents liquid from getting into the cabinet. Strictly comply with the

following instructions in order to correctly apply this seal:

- Detach the seals from their backing, checking that the transparent protection still adheres to the seal

itself.

- Overturn the hot plate and correctly position seal “E” (fig. 9) under the edge of the hot plate itself, so that

the outer side of the seal perfectly matches the outer edge of the hot plate. The ends of the strips must fit

together without overlapping.

- Evenly and securely fix the seal to the hot plate, pressing into place with the fingers and remove the strip

of protective paper from the seal and set the plate into the hole made in the cabinet.

- Fix the hob with the proper brackets “S” and fit the prominent part into the porthole “H” on the bottom;

turn the screw “F” until the bracket “S” stick on the top (fig. 10).

- In order to avoid accidental touch with the overheating bottom of the hob, during the working, is

necessary to put a wooden insert, fixed by screws, at a minimum distance of 50 mm from the top (see

fig.7).

COMPLY WITH THE DIMENSIONS (mm)

A B C D E

2 fuochi

280 480 57.5 57.5 100 min.

4 fuochi

553 473 67.5 59.5 100 min.

5 fuochi

553 473 67.5 59.5 175 min.

FIG. 7 FIG. 7/A FIG. 7/B

FIG. 8 FIG. 9 FIG. 10
