Collection and Playback of Data on Checker SiE30-408
160 Service Checker Type3 Application Edition
This information shows that “E0” occurred at 16:01 on the 484th line.
In this case, cancel the auto filter and then define the causes of the malfunction according to
data prior and subsequent to the time when the malfunction occurred.
Furthermore, using the auto filter enables the following verification.
Check each temperature/pressure data for maximum (minimum) value.
Extract defrosting and oil return operation and then verify the operation data.
Edit and print EXCEL data and then carry out an analysis on the data.

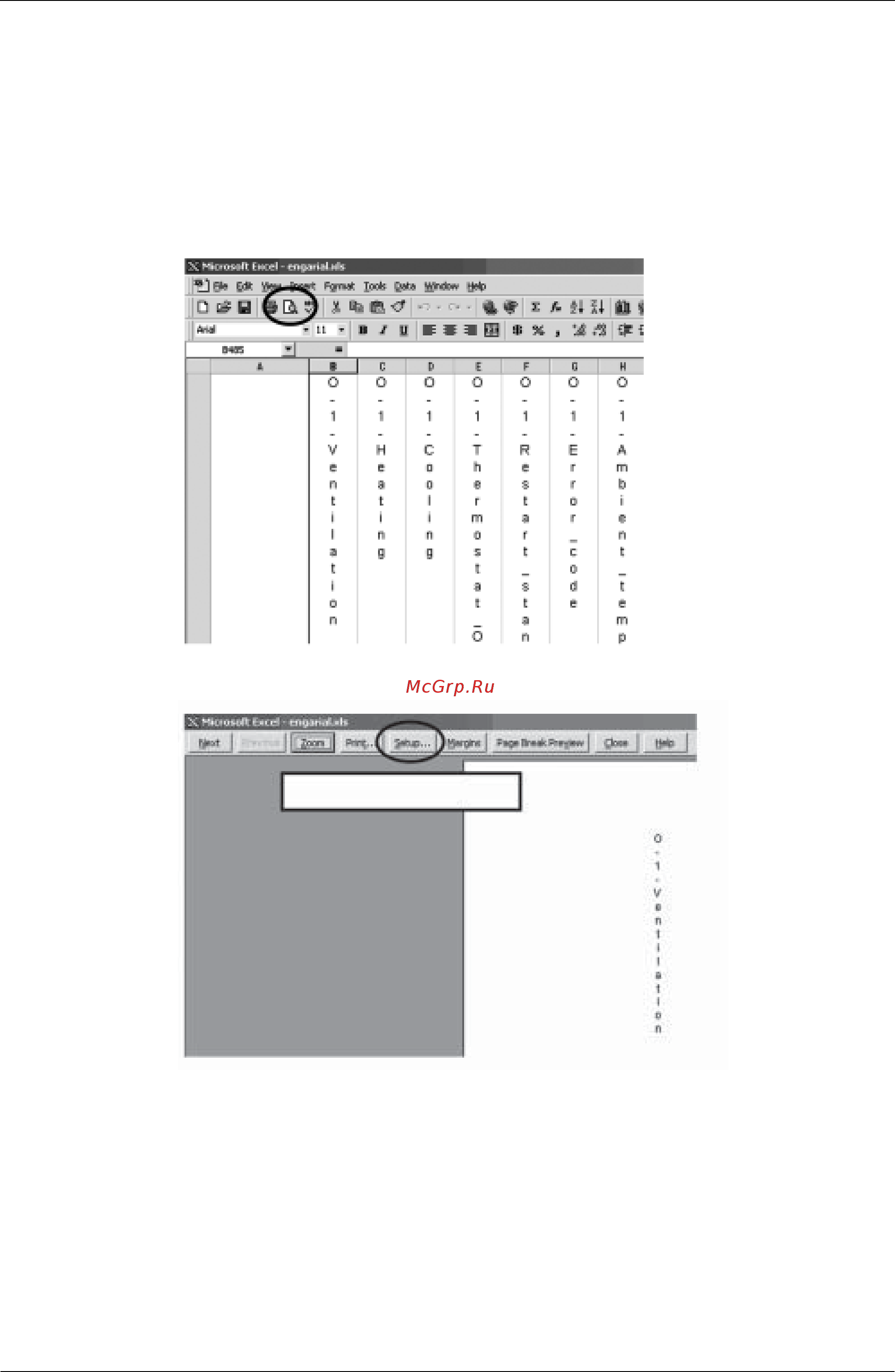

Click on the "Print preview".
Click on the “Setup” tab.
