http://www.tracopower.com Page 1 of 4
AC/DC Power Supplies
TOP 100 Series, 100 Watt
Features
◆
100 W power supply in 2.0”x 4.0“ footprint!

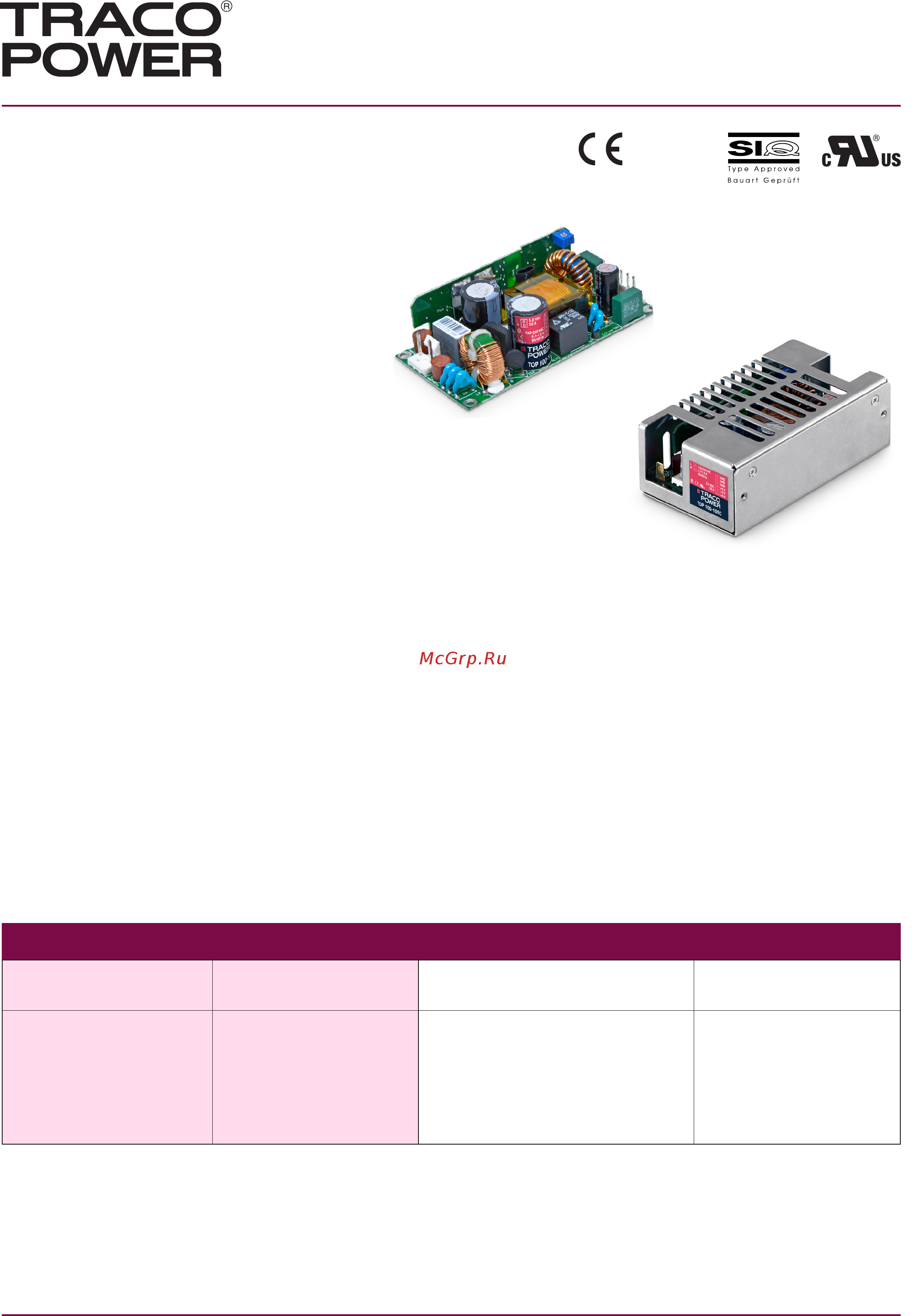

openframe and enclosed version available
◆ Full load operation up to +50°C with
convection cooling
◆ Highest efficiency, 90 % typ.
◆ EMI filter meets EN 55022, level B
◆ Compliance with EN 61000-3-2
◆ Low leakage current
◆ Safety class l and class ll operation
◆ 3-year product warranty
The new TOP-100 Series AC/DC Power Supplies feature the highest power rating
in the industry standard 2.0” x 4.0” (50.8 x 101.6 mm) footprint. They can supply
up to 100 W output power with convection cooling over an industrial operating
temperature range of –25°C to +50°C. This performance could be realized by a state
of the art design providing an extremely high efficiency of >90 % which eliminates
the need for a dedicated power supply cooling fan.
Also see: www.tracopower.com/products/top100_article_e1.pdf
Compliance with global safety and EMC standards qualify these power supplies for
worldwide markets. Approved for Class l and Class ll applications, these switchers
are suitable for industrial and IT systems but also for consumer products. High reli-
ability is provided by use of industrial quality grade components and an excellent
thermal management. This product offers an interesting power supply solution for
many space and cost critical applications in commercial and industrial electronic
equipment.
Order Code
(open frame)
Order Code
(enclosed)
Output Voltage
(Adjustment Range)
Output Current
max.
TOP 100-105 TOP 100-105C 5.0 VDC (5.0 - 5.2) 20.0 A
TOP 100-112 TOP 100-112C 12 VDC (12.0 - 13.0) 8.3 A
TOP 100-115 15 VDC (15.0 - 16.0) 6.7 A
TOP 100-124 TOP 100-124C 24 VDC (24.0 - 26.0) 4.2 A
TOP 100-148 TOP 100-148C 48 VDC (48.0 - 52.0) 2.1 A
Models
CB
Scheme
UL 60950-1
On demand (not for new design in) : TOP 100-103 with Output 3.3 VDC (3.3–3.5) / 20.0 A
