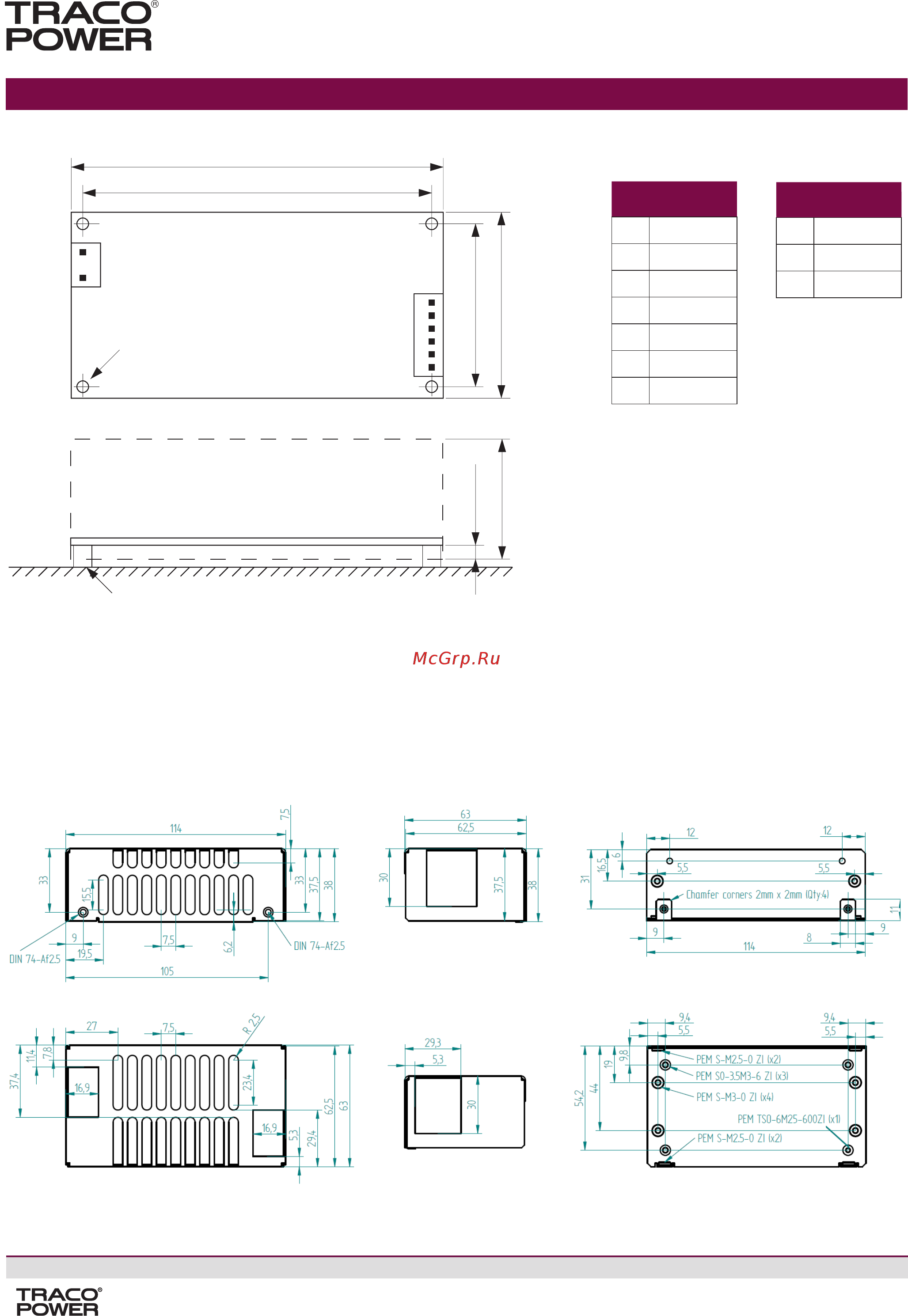

Dimensions

AC/DC Power Supplies

TOP-100 Series 100 Watt

Field Ground

4x ø 0.157 (4.0)

AC IN

OUT

3.75

(95.3)

4.0

(101.6)

1.75 (44.5)

2.0 (50.8)

4x Pillars (not included) for connection to safety earth:

Height: 0.2 min. (5.0), Diam.: 0.25 max. (6.0)

To comply with EN 55022 class B:

Field ground (FG) is to be connected to chassis

1.25

(31.8)

0.14 (3.6)

Pin J2

– Vout

+ Vout

Output

Pin J1

AC in

Input

J1: Molex Series 41791

mates with Molex crimp terminal: 08-52-0072

and terminal housing: 09-50-3031

J2: Molex Series 41791

mates with Molex crimp terminal: 08-52-0072

and terminal housing: 09-50-3061

Dimensions in Inch, () = mm

open frame:

enclosed:

Dimensions in mm
