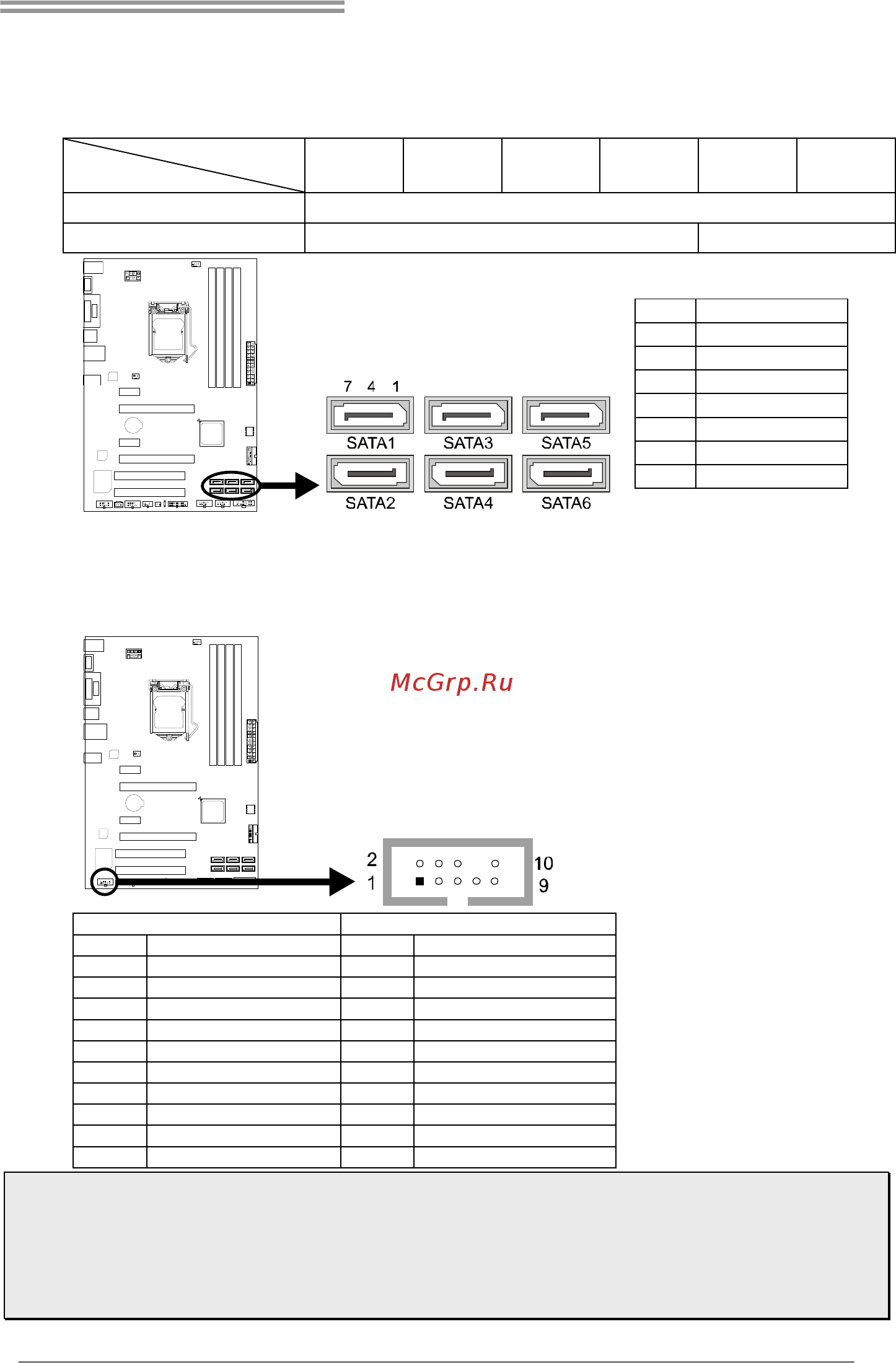

Hi-Fi Z97Z5/Hi-Fi Z97Z5+/Hi-Fi B85Z5/Hi-Fi B85Z5+
17
SATA1~SATA6: Serial ATA Connectors
These connectors connect to SATA hard disk drives via SATA cables. Please refer
below table for SATA data transfer rates.
Connectors
Models
SATA1 SATA2 SATA3 SATA4 SATA5 SATA6
Hi-Fi Z97Z5/Hi-Fi Z97Z5+ SATA 6Gb/s
Hi-Fi B85Z5/Hi-Fi B85Z5+ SATA 6Gb/s SATA 3Gb/s
Pin Assignment
1 Ground
2 TX+
3 TX-
4 Ground
5 RX-
6 RX+
7 Ground
F_AUDIO1: Front Panel Audio Header
This header allows user to connect the chassis-mount front panel audio I/O which
supports HD and AC’97 audio standards.
HD Audio AC’97
Pin Assignment Pin Assignment
1 Mic Left in 1 Mic In
2 Ground 2 Ground
3 Mic Right in 3 Mic Power
4 GPIO 4 Audio Power
5 Right line in 5 RT Line Out
6 Jack Sense 6 RT Line Out
7 Front Sense 7 Reserved
8 Key 8 Key
9 Left line in 9 LFT Line Out
10 Jack Sense 10 LFT Line Out
Note1: It is recommended that you connect a high-definition front panel audio module to this
connector to avail of the motherboard's high definition audio capability.
Note2: Please try to disable the "Front Panel Jack Detection" if you want to use an AC'97 front
audio output cable. The function can be found via O.S. Audio Utility.
Note3: To configure 7.1-channel audio, you have to use a chassis with HD front panel audio
module and enable the multi-channel audio feature through O.S. Audio Utility.
