Hi-Fi Z97Z5/Hi-Fi Z97Z5+/Hi-Fi B85Z5/Hi-Fi B85Z5+
5

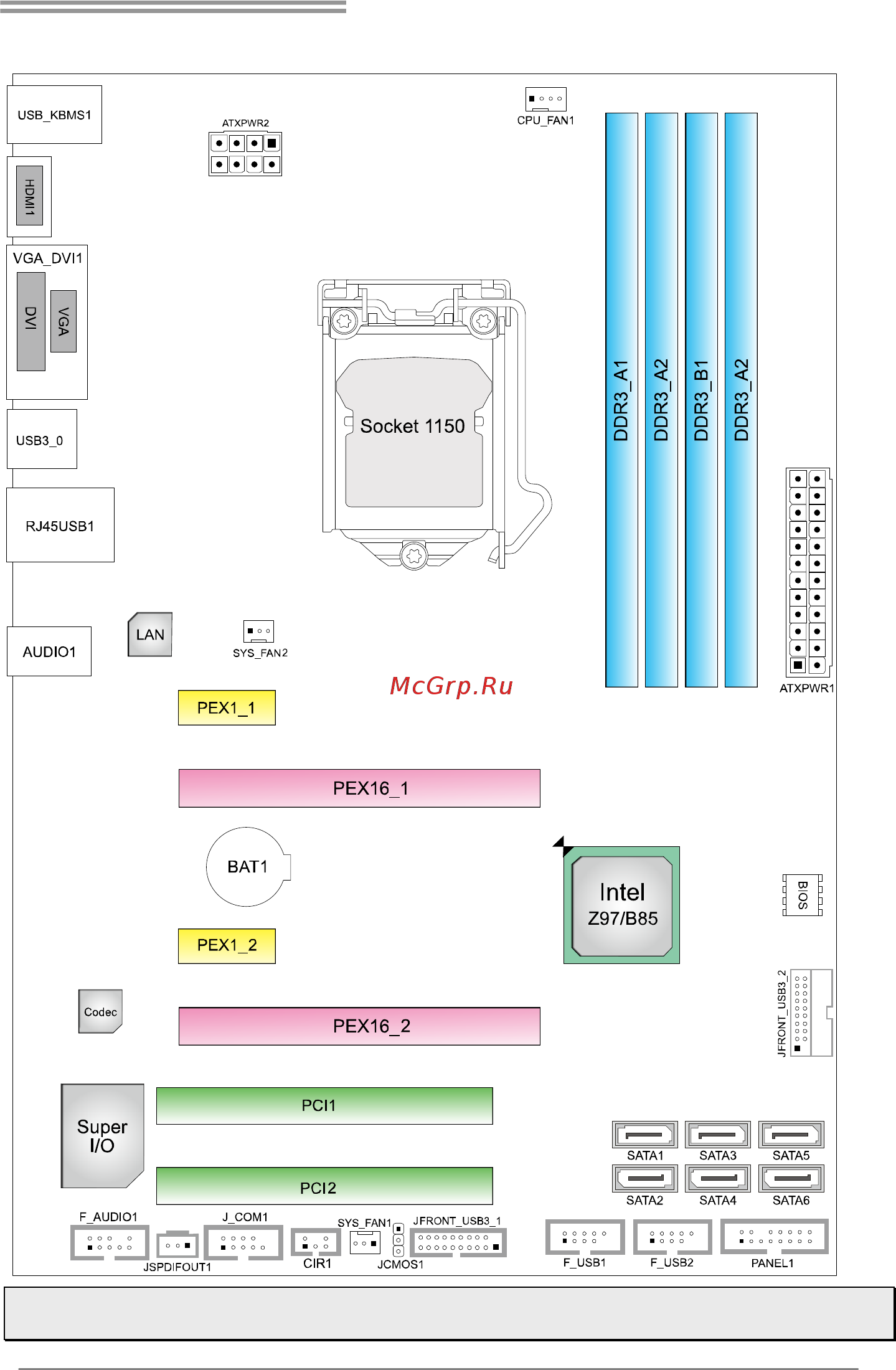

1.5 MOTHERBOARD LAYOUT
Note1: ■ represents the 1
st
pin.
Note2: JFRONT_USB3_2 is only for Hi-Fi B85Z5+/ Hi-Fi Z97Z5+.
