Hi-Fi A85S2/Hi-Fi A75S2/Hi-Fi A55S2
5

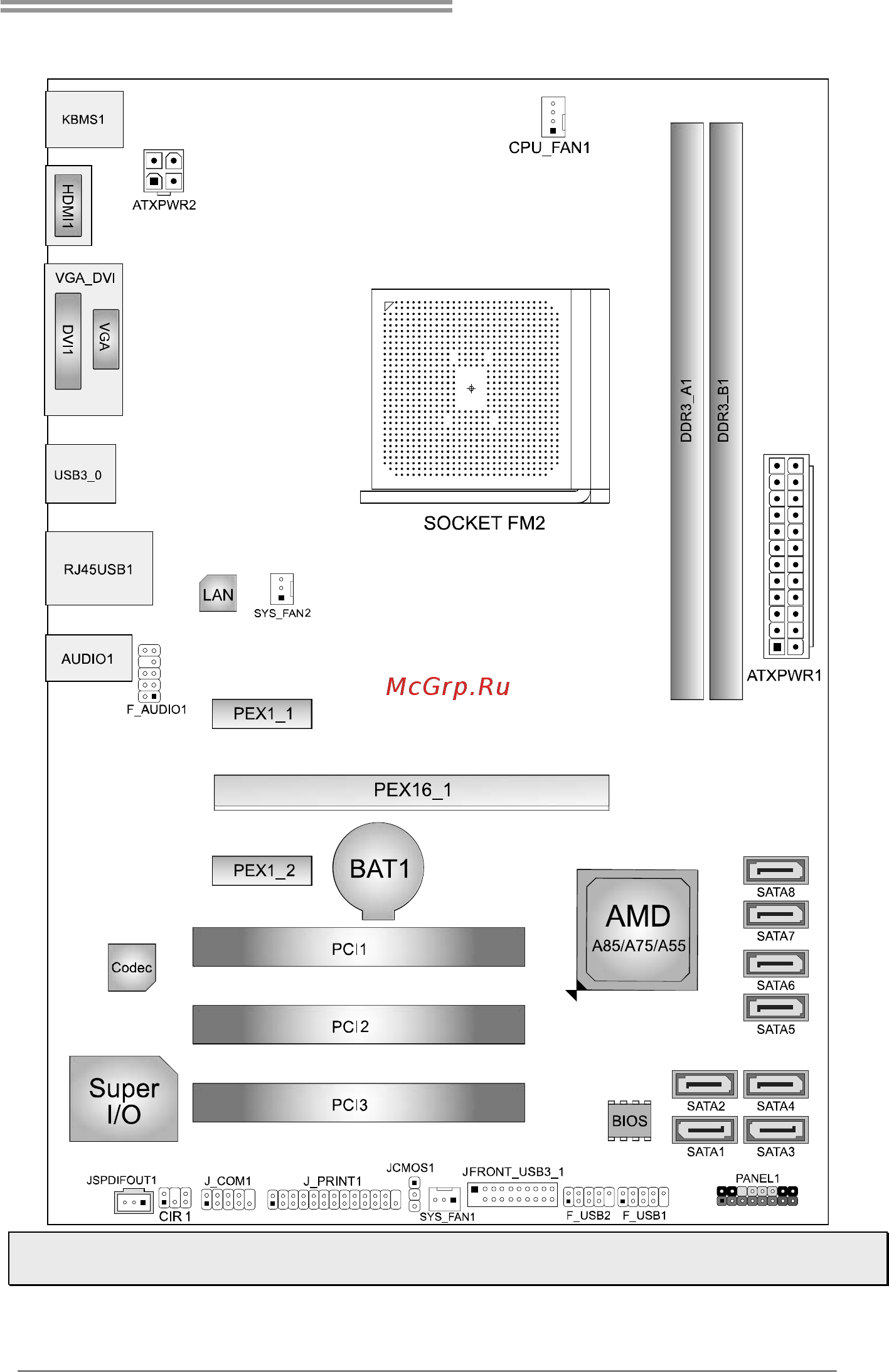

1.5 Motherboard Layout
Note1: ■ represents the 1st pin.
Note2: SATA7 & SATA8 are only for Hi-Fi A85S2.
