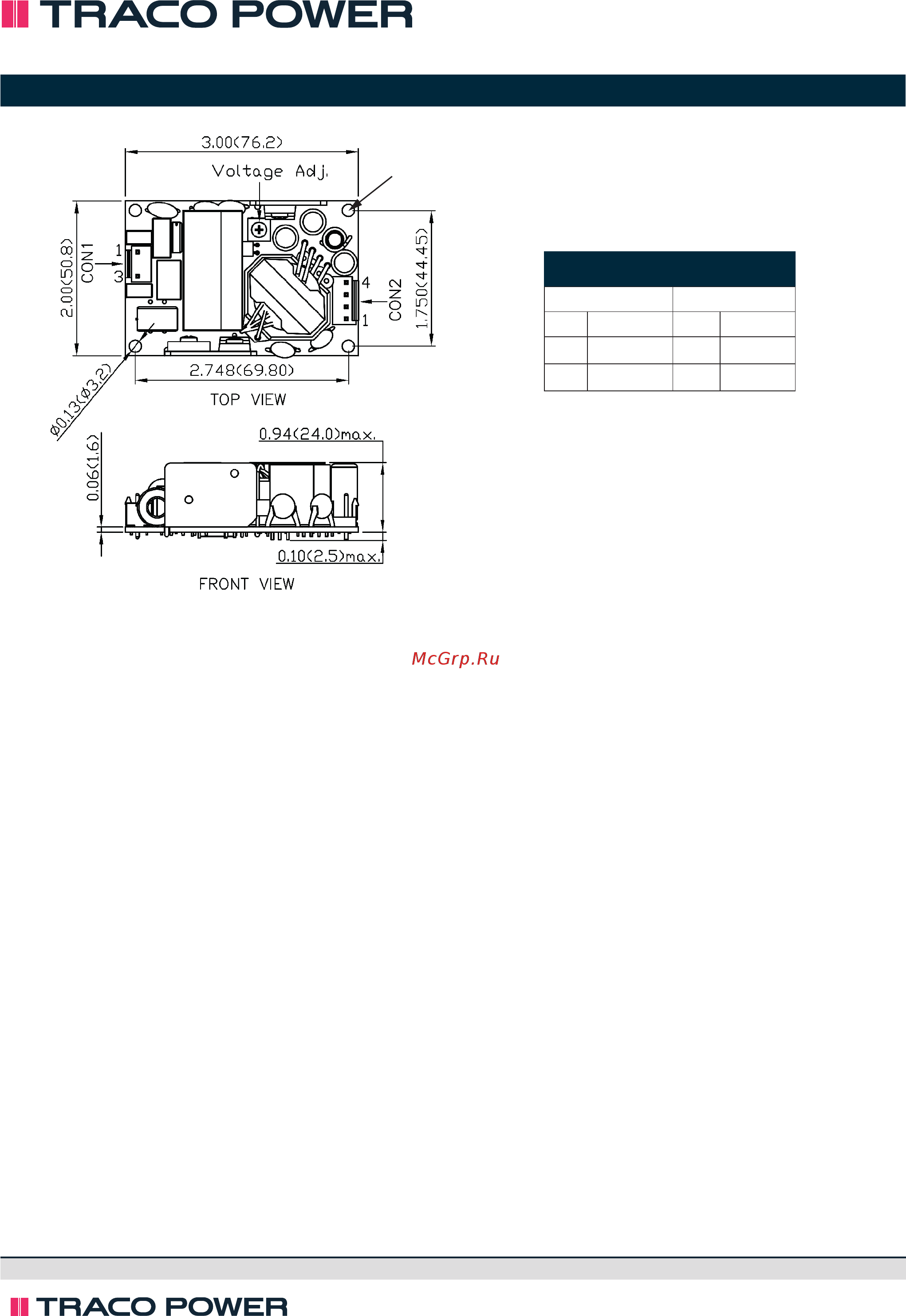

Outline Dimensions

Input Output

Pin Single Pin* Dual

Line

1,2

–Vout

Neutral

3,4

+Vout

Screw Terminal

*Terminal rated for 7 A max.

(at higher current connection has to be split)

Weight: 114 g (4.02 oz)

CON 1: JST series

mates with JST crimp terminal: BVH-21T-P1.1

and terminal housing: VHR-3N

CON 2: JST series

mates with JST crimp terminal: BVH-21T-P1.1

and terminal housing: VHR-4N

each one of the 4 srew holes can be used

as a PE connection for class I applications

Dimensions in inch, () = mm

Tolerances: x.xx±0.02 (x.x±0.5) x.xxx±0.01 (x.xx±0.25)
