User’s Manual of SGSD-1022 / SGSD-1022P
SGSW-2840 / SGSW-2840P
121

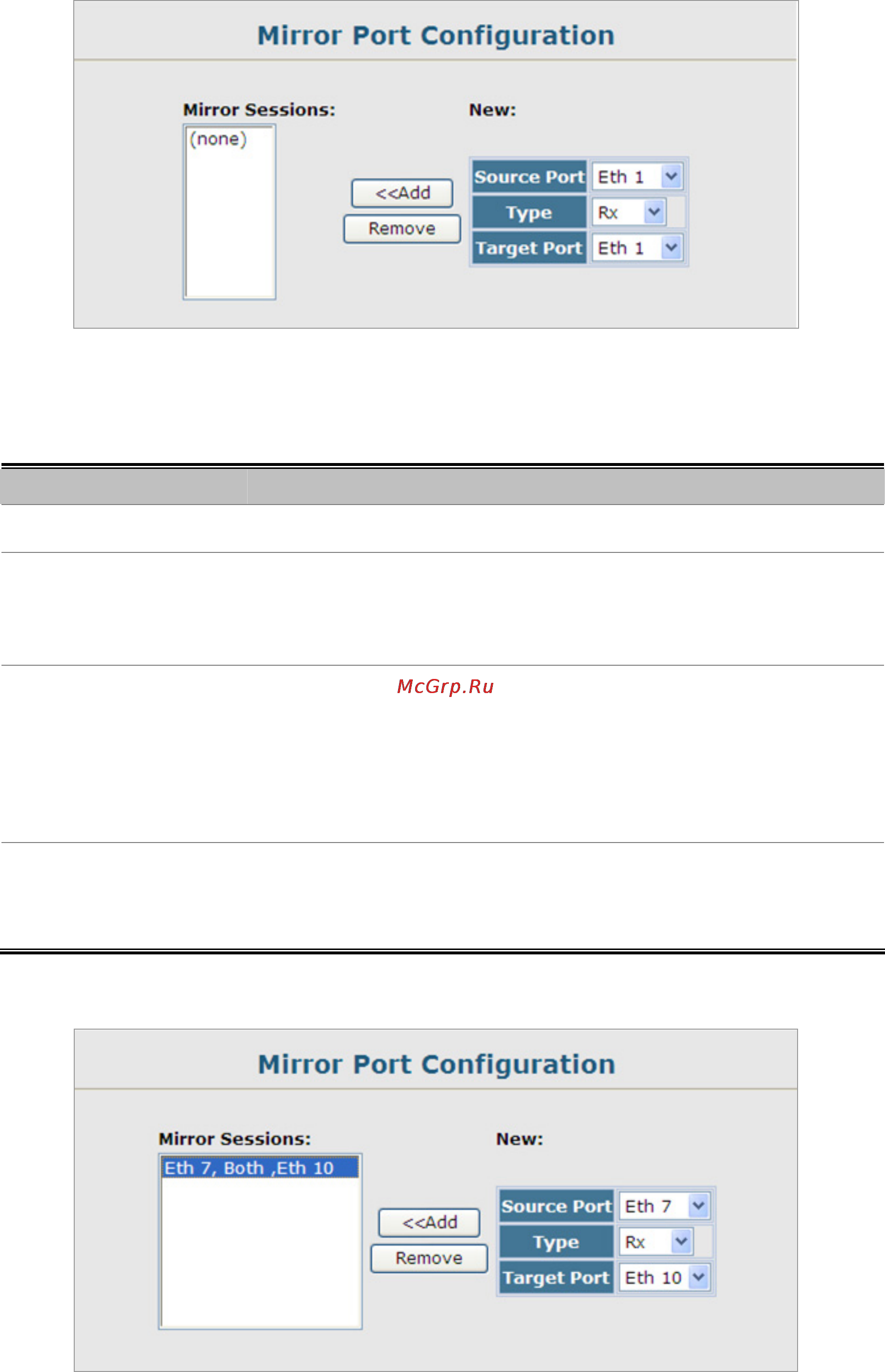

Figure 4-4-5 Mirror Port Configuration page screenshot
The page includes the following fields:
Object Description
Mirror Sessions
Displays a list of current mirror sessions.
Source Port
The port whose traffic will be monitored.
Range- SGSW-2840 / SGSW-2840P: 1-28
Range- SGSD-1022 / SGSD-1022P: 1-10
Type
Allows you to select which traffic to mirror to the target port:
Rx (receive)
Tx (transmit)
Both (receive and transmit)
(Default: Rx)
Target Port
The port that will mirror the traffic on the source port.
Range- SGSW-2840 / SGSW-2840P: 1-28
Range- SGSD-1022 / SGSD-1022P: 1-10
Figure 4-4-6 Mirror Port Configuration page screenshot
