User’s Manual of SGSD-1022 / SGSD-1022P
SGSW-2840 / SGSW-2840P
34
10/100/1000Base-T interfaces (Port-9 and Port-10) and SFP interfaces
LED Color Function
Lights:
To indicate the link through that port is successfully established with speed
1000Mbps
Blink:
To indicate that the switch is actively sending or receiving data over that port.
1000
LNK/ACT
Green
Off:
If L10/100 NK/ACT LED light-> indicate that the port is operating at 10Mbps or
100Mbps
If LNK/ACT LED Off -> indicate that the port is link down
Lights:
To indicate the link through that port is successfully established with speed
10Mbps or 100Mbps
Blink:
To indicate that the switch is actively sending or receiving data over that port.
10/100
LNK/ACT
Orange
Off:
If 1000 LNK/ACT LED light-> indicate that the port is operating at 1000Mbps
If 1000 LNK/ACT LED Off -> indicate that the port is link down
SGSW-2840 / SGSW-2840R LED indication

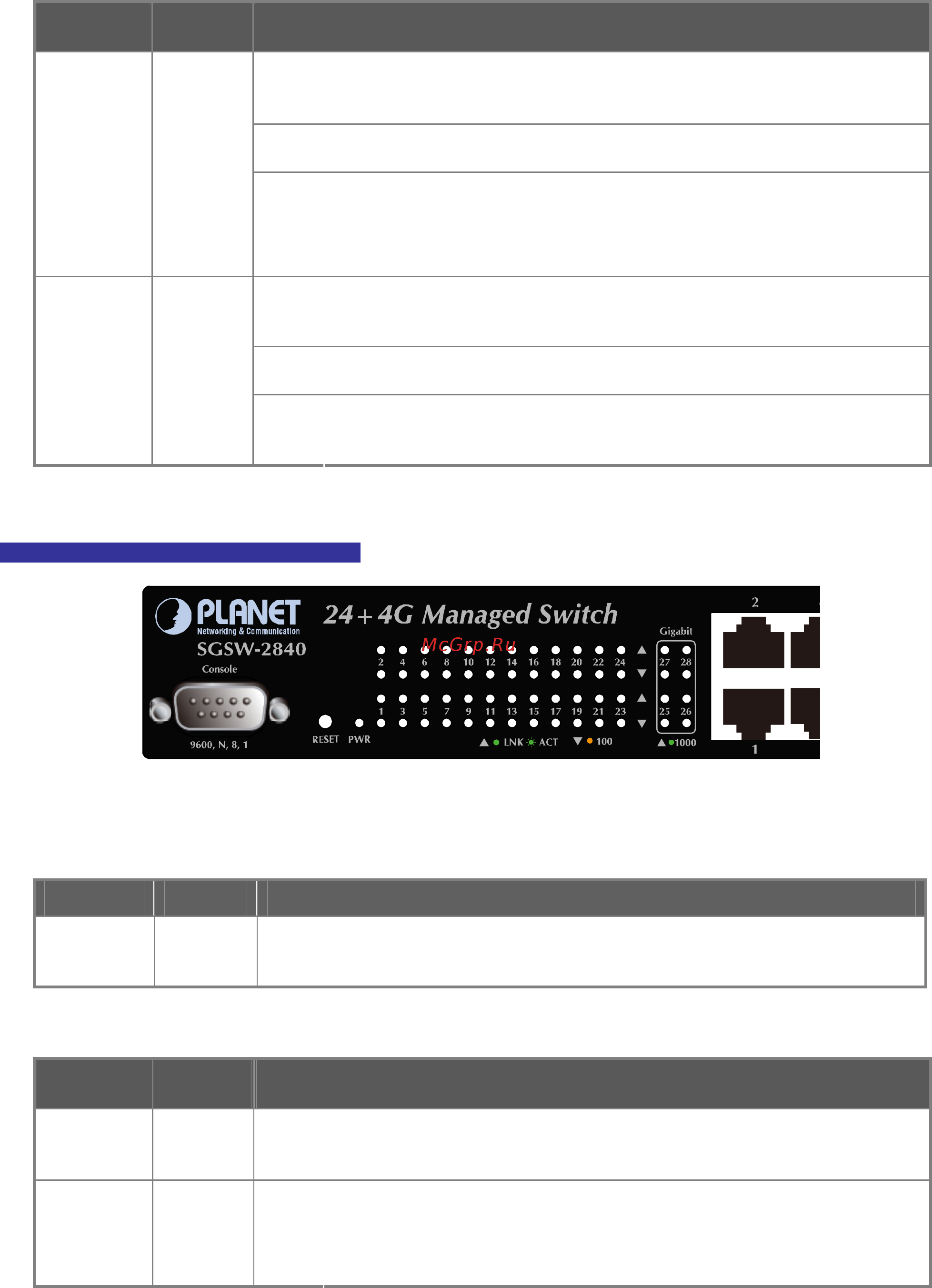

Figure 2-7 SGSW-2840 LED panel
System
LED Color Function
PWR Green
Lights to indicate that the Switch is powered on.
Blink to indicate the System is running under booting procedure.
10/100Base-TX interfaces (Port-1 to Por-24)
LED Color Function
Lights:
To indicate the link through that port is successfully established.
LNK/ACT Green
Blink:
To indicate that the switch is actively sending or receiving data over that port.
Lights: indicate that the port is operating at 100Mbps.
100 Orange
Off: If LNK/ACT LED light-> indicate that the port is operating at 10Mbps
If LNK/ACT LED Off -> indicate that the port is link down
10/100/1000Base-T interfaces (Port-25 to Port-28) and SFP interfaces
