3. MANAGE THE MEDIA CONVERTER

This product provides two different managed methods – configure through its DIP Switch or install into the central Web

Smart Media converter chassis for centralize management.

This section describes how to managed the FST-80x through its DIP Switch and Web Smart Media converter chassis.

Before use the FST-80x smart function, please read this chapter carefully.

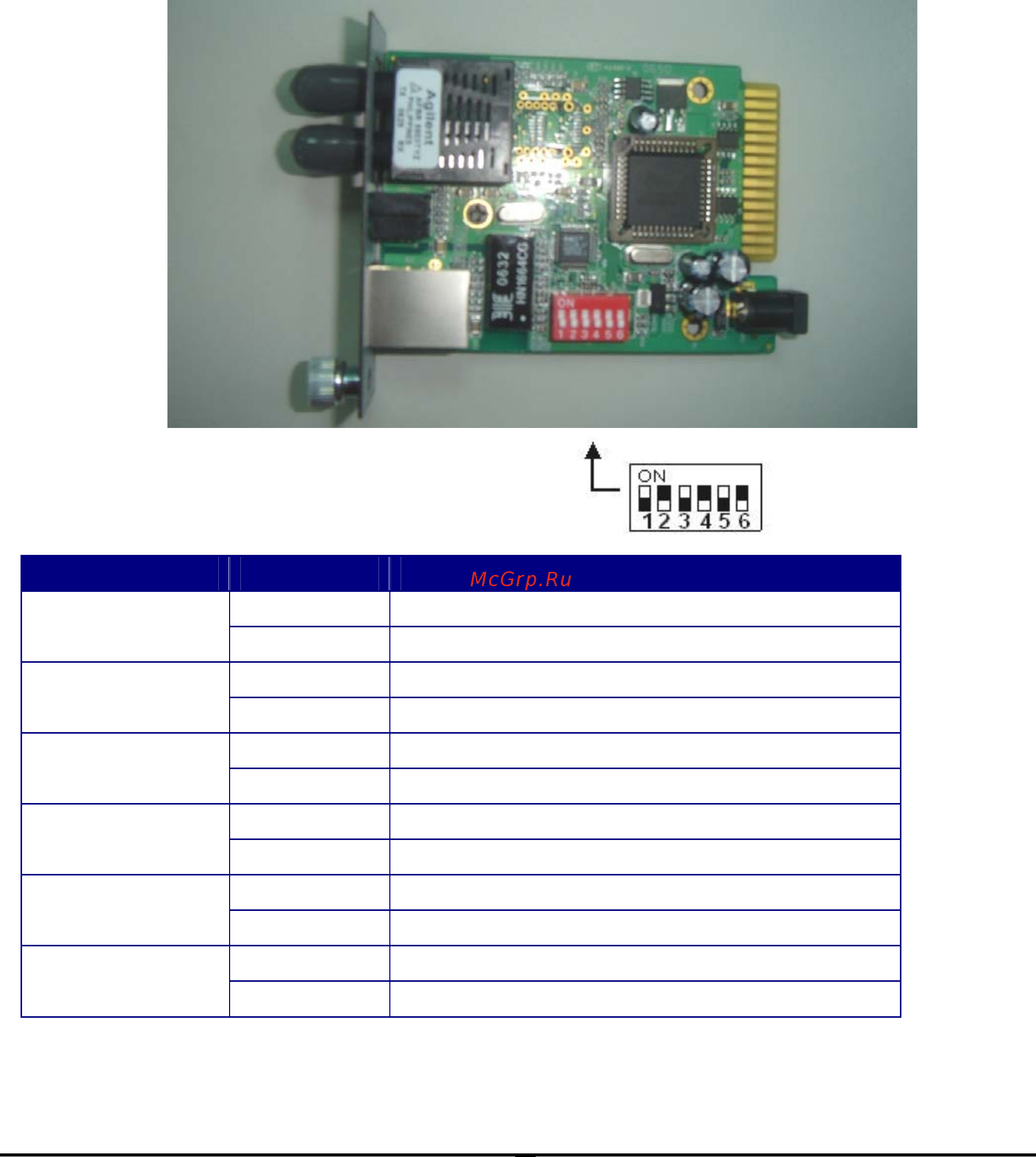

3.1 DIP Switch configuration

The FST-80x provide DIP switch to setting fiber (HDX/FDX), UTP (Auto-negotiation / Manual), speed (10/100Mbps), du-

plex mode (Half / Full duplex mode), LLR (Disable / Enable), LLCF (Disable / Enable). Please refer to the table below for

more detail decription.

DIP Switch Mode Description

On Fiber operates at Half Duplex mode. DIP Switch 1

Off

Fiber operates at Full Duplex mode (default).

On TX operates at Forced Mode. DIP Switch 2

Off

TX operates at Auto-Negotiation (default).

On TX operates at 10Mbps duplex mode. DIP Switch 3

Off

TX operates at 100Mbps duplex mode (default).

On TX operates at Half Duplex mode. DIP Switch 4

Off

TX operates at Full Duplex mode (default).

On LLR Enable. DIP Switch 5

Off

LLR Disable (default).

On LLCF Enable. DIP Switch 6

Off

LLCF Disable (default).

Notice:

 After change the DIP Switch setting, please power off and power on the FST-80x to take affect.
