3.2 Managed Media Converter module through MC-1600MR/R48 Chassis

The Web Smart Media Coverter Chassis that can control FST-80X through the management system,FST-80X can be

controlled through Web Browser and terminal emulation program.

The Web Smart Media Converter Chassis will display out the status of FST-80x, also the Web Smart Media Coverter

Chassis can control the function through the management system.

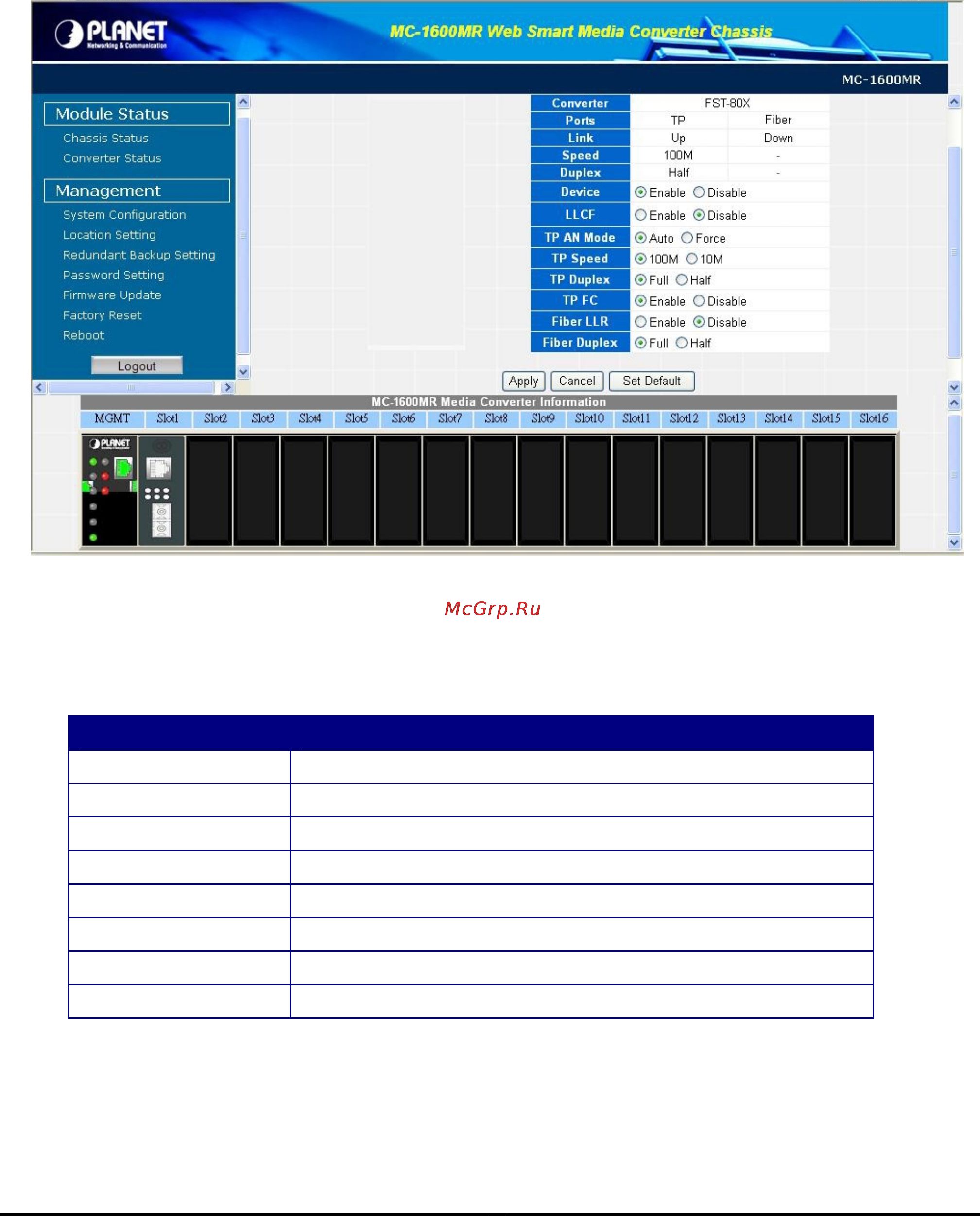

Through the Web Smart Media Coverter Chassis System, you can control the setting of FST-80X, such as fiber

(HDX/FDX), UTP (Auto-negotiation / Manual), speed (10/100Mbps), duplex mode (Half / Full duplex mode), LLR (Disable

/ Enable), LLCF (Disable / Enable).

Item Description

Device To enable or disable per FST-80x Converter board.

LLCF To enable or disable the LLCF function from FST-80x Converter board.

TP AN Mode To set the UTP port runs at Auto-negotiation or Forced Mode.

TP Speed To set the UTP port runs at 100Mbps or 10Mbps.

TP Duplex To set the UTP port runs at Full duplex or Half duplex mode.

TP FC To set the Flow Control of the UTP port to enable or disable.

Fiber LLR To enable or disable the LLR function of the Fiber port.

Fiber Duplex To set the Duplex Mode of Fiber port to Full duplex or Half duplex mode.
