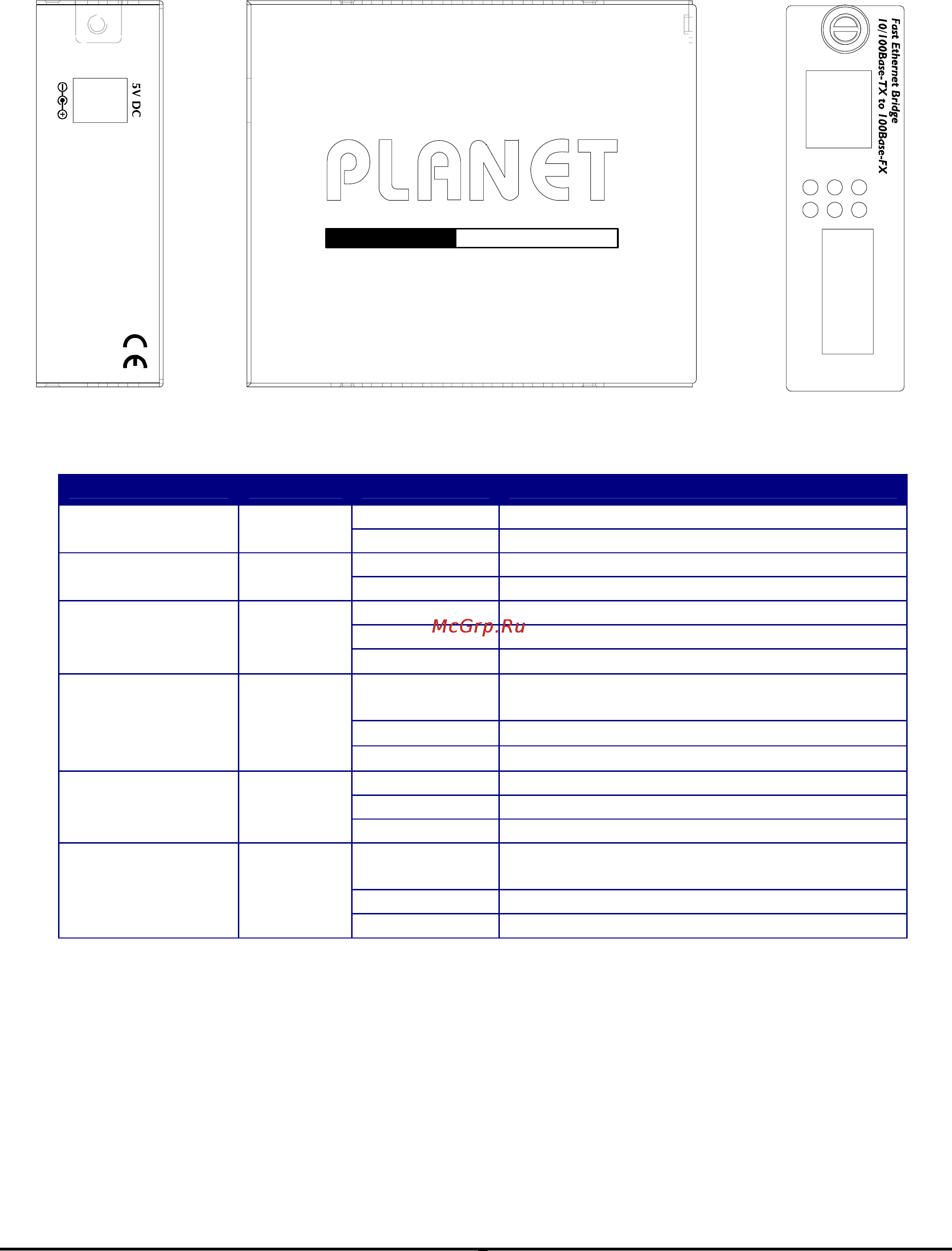

1.5 Product Outlook

Right View: there is one RJ-45 twisted-Pair jack (Auto-MDI/MDI-X), one fiber-optic connector (vary by model) and six

LED indicators.

Left View: there is one DC jack for DC 5V power adapter.

100

10/100Base-TX

100Base-FX

PWR

FDX

COL

LNK

ACT

Fast Ethernet Bridge

10/100Base-TX to 100Base-FX

LED Indicators

LED Color Status Indication

Lights On Power on – when +5V DC detected. PWR(Power) Green

Lights Off Power off.

Lights On The port is operating at 100Mbps. TP Speed (100Mbps) Green

Lights Off The port is operating at 10Mbps.

Lights On Connection at Full-Duplex mode.

Lights Off Connection at Half-Duplex mode.

TP FDX/COL Green

Lights Blinking The port is experiencing collisions.

Lights On The link through that port is successfully estab-

lished.

Lights Off The link through that port is not established.

TP LINK/ACT Green

Lights Blinking Data transmitting or receiving on that port.
