Biostar G41D3 Версия 6.2 [18/47] Jusbv1 jusbv2 power source headers for usb ports

Motherboard Manual

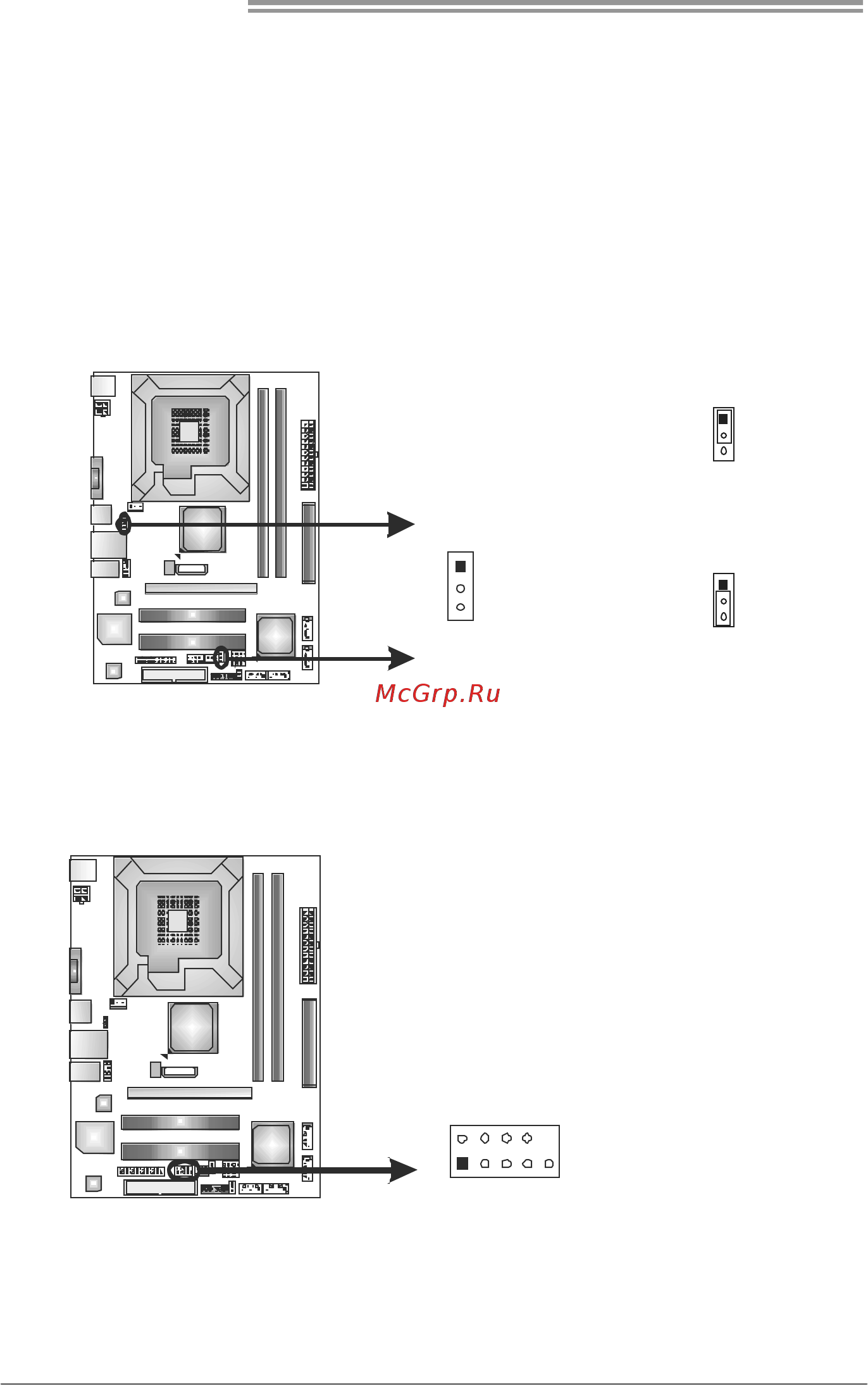

JUSBV1/JUSBV2: Power Source Headers for USB Ports

Pin 1-2 Close:

JUSBV1: +5V for USB ports at USB1/JRJ45USB1.

JUSBV2: +5V for USB ports at USB2/USBB3.

Pin 2-3 Close:

JUSBV1: +5V STB for USB ports at USB1/JRJ45USB1.

JUSBV2: +5V STB for USB ports at USB2/USBB3.

Pin 1-2 close

JUSBV1

JUSBV2

Pin 2-3 close

J_COM1: Serial port Connector

The motherboard has a Serial Port Connector for connecting RS-232 Port.

Assignment

1 Carrier detect

2 Received data

3 Transmitted data

4 Data terminal ready

5 Signal ground

6 Data set ready

7 Request to send

8 Clear to send

9 Ring indicator

10 Key
