Biostar X470NH Версия 6.X [13/64] Expansion slots

Chapter 2: Hardware installaon | 13

X470NH

Ryzen - DDR Maximum Frequency Support Table

Maximum DIMMA1 DIMMB1

DDR4-2667 SR --

DDR4-2667 DR --

DDR4-2667 SR SR

DDR4-2400 DR DR

Note

 SR-Single-rankDIMM,1Rx4or1Rx8.



DR-Dual-rankDIMMs,2Rx4or2Rx8.



ForthebeerDDR4modulecompability,pleasefollowthetabletoinstallyourDDR4modules.

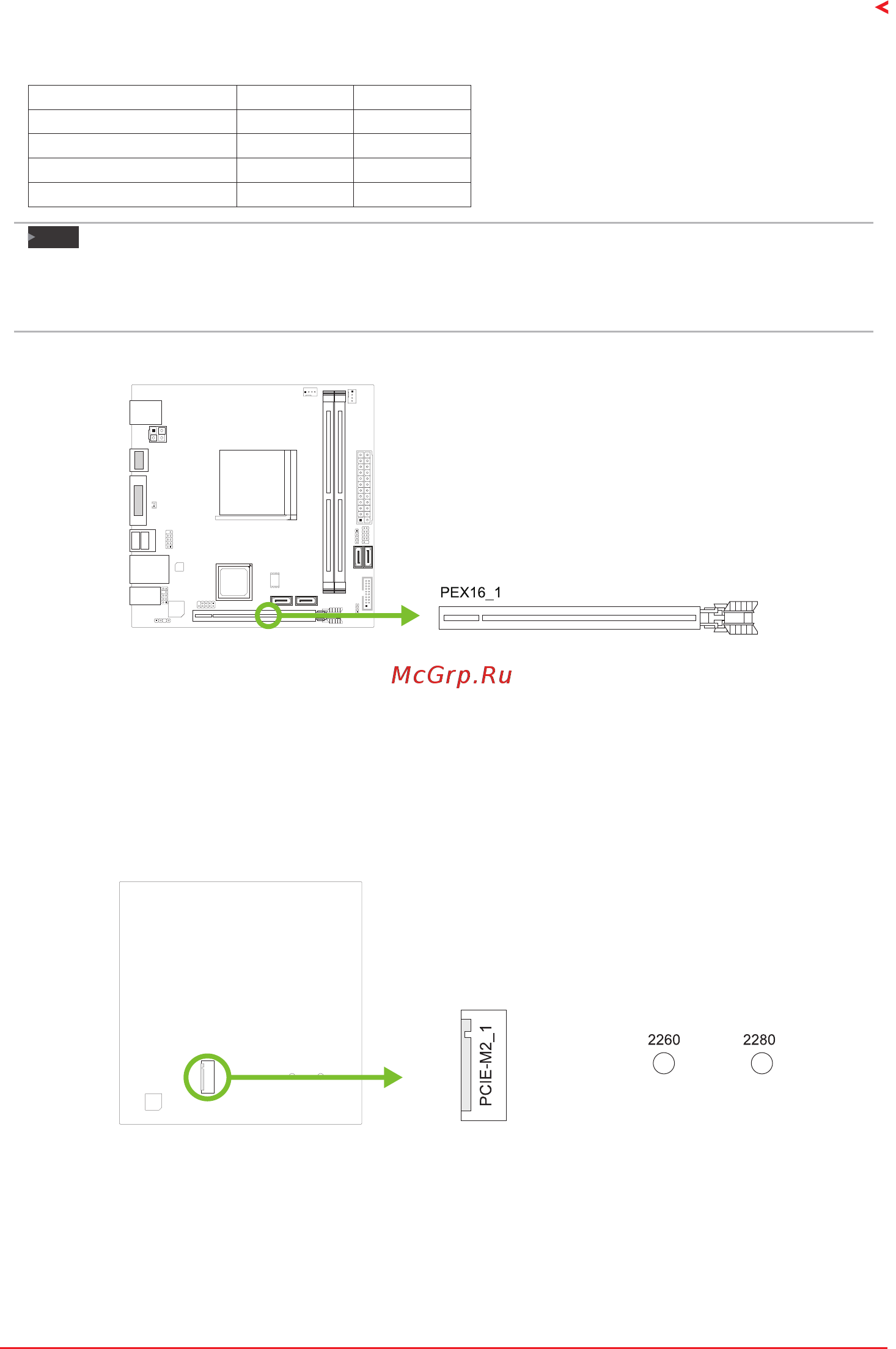

2.5 Expansion Slots

PEX16_1: PCI-Express Gen3 x16 Slot (The bandwidth is depended on CPU)

• PCI-Express 3.0 compliant.

• Theorecal maximum bandwidth using two slots simultaneously is 16GB/s for each slot,

a total of 32GB/s.

PCIE-M2_1: M.2 (M Key) Slot (The bandwidth is depended on CPU)

• The M.2 slot supports M.2 Type 2260/2280 SSD module. When installing M.2 SSD

module, please place the screw and hex pillar to correct posion.

• Support SATA III (6.0 Gb/s) module and PCI Express module up to Gen3 x4 (32Gb/s).
