Biostar X470NH Версия 6.X [7/64] Back view

Chapter 1: Introducon | 7

X470NH

Back View

Содержание

Fcc information and copyright 1
Appendix i specifications in other languages 30 2
Chapter 1 introduction 3 2
Chapter 2 hardware installation 8 2
Chapter 3 uefi bios software 19 2
Chapter 4 useful help 26 2
Fcc information and copyright 1 2
Table of contents 2
1 before you start 3
Chapter 1 introduction 3
Package checklist 3
3 specifications 4
Chapter 1 introduction 4
Chapter 1 introduction 5 5
Rear panel connectors 5
X470nh 5
Chapter 1 introduction 6
Motherboard layout 6
Top view 6

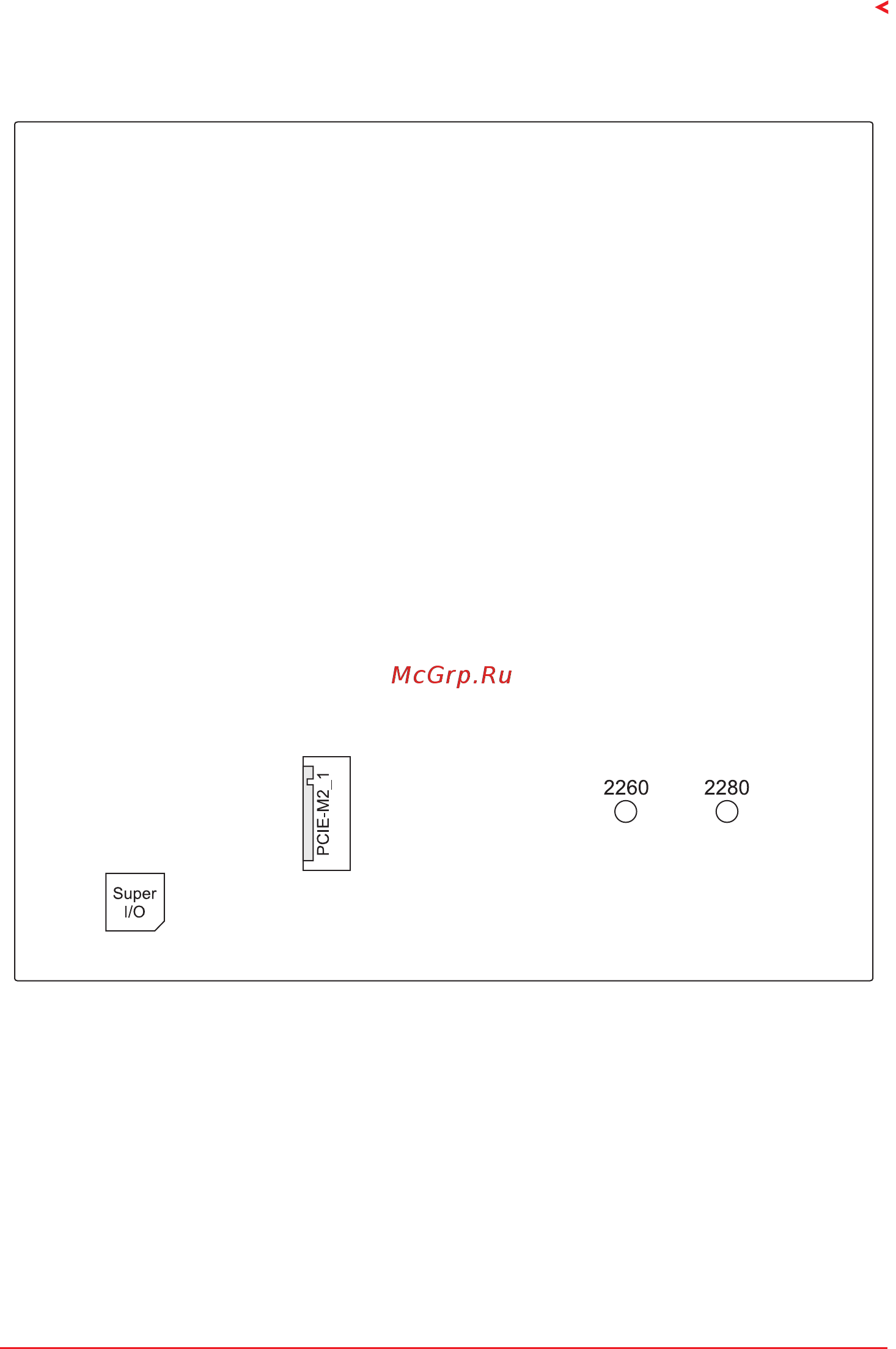

Back view 7
Chapter 2 hardware installation 8
Install central processing unit cpu 8
Install a heatsink 9
Chapter 2 hardware installation 10
Step 1 remove the heatsink and fan assembly bracket on the motherboard and keep the cooler backplane under the motherboard 10
Step 2 place the heatsink and fan assembly on top of the installed cpu and make sure that the fan cable is closest to the cpu fan connector please refer diagram to the following screw into the screw hole in the order shown 10
Chapter 2 hardware installation 11 11
Connect cooling fans 11
Cpu_fan1 cpu fan header 11
Cpu_fan1 sys_fan1support4 pinand3 pinheadconnectors whenconnectingwithwiresonto connectors pleasenotethattheredwireisthepositiveandshouldbeconnectedtopin 2 andthe blackwireisgroundandshouldbeconnectedtopin 1 gnd 11
Ddr4 modules 11
Install system memory 11
Sys_fan1 system fan header 11
These fan headers support cooling fans built in the computer the fan cable and connector may be different according to the fan manufacturer 11
X470nh 11
Chapter 2 hardware installation 12
Dual channel memory installation 12
Memory capacity 12
O means memory installed x means memory not installed 12
Please refer to the following requirements to activate dual channel function install memory module of the same density in pairs shown in the table 12
Step 1 unlock a dimm slot by pressing the retaining clips outward align a dimm on the slot such that the notch on the dimm matches the break on the slot 12
Step 2 insert the dimm vertically and firmly into the slot until the retaining clips snap back in place and the dimm is properly seated 12
Chapter 2 hardware installation 13 13
Expansion slots 13
Pci express 3 compliant theoretical maximum bandwidth using two slots simultaneously is 16gb s for each slot a total of 32gb s 13
Pcie m2_1 m m key slot the bandwidth is depended on cpu 13
Pex16_1 pci express gen3 x16 slot the bandwidth is depended on cpu 13
Ryzen ddr maximum frequency support table 13
The m slot supports m type 2260 2280 ssd module when installing m ssd module please place the screw and hex pillar to correct position support sata iii 6 gb s module and pci express module up to gen3 x4 32gb s 13
X470nh 13
Install an expansion card 14
Jcmos1 clear cmos jumper 14
Jumper switch setting 14
Atxpwr1 atx power source connector 15
Atxpwr2 atx power source connector 15
Beforeyoupoweronthesystem pleasemakesurethatbothatxpwr1andatxpwr2connectors havebeenplugged in insufficientpowersuppliedtothesystemmayresultininstabilityortheperipheralsnotfunctioning properly useofapsuwithahigherpoweroutputisrecommendedwhenconfiguringasystemwith morepower consumingdevices 15
Chapter 2 hardware installation 15 15
For better compatibility we recommend to use a standard atx 24 pin power supply for this connector make sure to find the correct orientation before plugging the connector 15
Headers connectors 15
This connector will provide 12v to cpu power circuit 15
X470nh 15
Chapter 2 hardware installation 16
Panel1 front panel header 16
Please connect the chassis speaker to this header 16
Sata1 sata4 serial ata 6 gb s connectors 16
Spk chassis speaker header 16
These connectors connect to sata hard disk drives via sata cables 16
This connector includes power on reset hdd led and power led connections it allows user to connect the pc case s front panel switch functions 16
Chapter 2 hardware installation 17 17
F_usb1 header for usb 2 ports at front panel 17
Jfront_usb3_1 header for usb 3 gen1 5gb s ports at front panel 17
Jspdifout1 digital audio out connector 17
The connector is for connecting the s pdif output bracket 17
This header allows user to add additional usb ports on the pc front panel and also can be connected with a wide range of external peripherals 17
X470nh 17
Chapter 2 hardware installation 18
Com1 serial port header 18
F_audio1 front panel audio header 18
Itisrecommendedthatyouconnectahigh definitionfrontpanelaudiomoduletothisconnectorto availofthemotherboard shighdefinitionaudiocapability pleasetrytodisablethe frontpaneljackdetection ifyouwanttouseanac 97frontaudiooutput cable thefunctioncanbefoundviao s audioutility 18
The motherboard has a serial port header for connecting rs 232 port 18
This header allows user to connect the chassis mount front panel audio i o which supports hd and ac 97 audio standards 18
Bios update 19
Chapter 3 uefi bios software 19
Uefi bios setup 19
Installing software 23
Launching software 23
Software 23
Chapter 3 uefi bios software 25 25
Enter the file name and then click save your system information will be saved to a txt file 25
Open the saved txt file you will see your system information including motherboard bios cpu video device os information this information is also concluded in the sent mail 25
X470nh 25
Chapter 4 useful help 26
Driver installation 26
Ami bios beep code 27
Boot block beep codes 27
Chapter 4 useful help 27 27
Post bios beep codes 27
Troubleshooting 27
X470nh 27
Raid definitions 28
Raid functions 28
Appendix i specifications in other languages 30
Arabic 30
Appendix i specifications in other languages 31 31
German 31
X470nh 31
Appendix i specifications in other languages 32
Russian 32
Спецификации 32
Appendix i specifications in other languages 33 33
Spanish 33
X470nh 33
Appendix i specifications in other languages 34
Fcc条款 35
免责说明 35
防静电操作规则 35
目录 36
第一章主板介绍 3 36
第三章 uefi bios和软件 19 36
第二章硬件安装 8 36
第四章帮助信息 26 36
附录i 产品中有毒有害物质或元素的名称及含量 30 36
1 前言 37
第一章主板介绍 37
3 主板特性 38
第一章主板介绍 38
4 后置面板接口 39
X470nh 39
第一章主板介绍 5 39
5 主板布局图 40
正面 40
第一章主板介绍 40
背面 41
1 中央处理器 cpu 42
第二章硬件安装 42
2 散热片 43
步骤 1 取下主板上的散热片和风扇组件支架并保留散热风扇的铁背板于主板下方 44
步骤2 将散热片和风扇组件放置于cpu上方调整方向使风扇电缆最靠近cpu风扇连接器参照示意图之顺序将螺丝锁入完成散热片风扇的安装 44
第二章硬件安装 44
3 风扇接头 45
4 系统内存 45
Cpu_fan1 cpu 风扇接头 45
Cpu_fan1 sys_fan1支持4针脚和3针脚接口接线时请注意红线是正极需接到第二个针脚黑线接地需接到gnd针脚 45
Ddr4内存模组 45
Sys_fan1 系统风扇接头 45
X470nh 45
此风扇接头支持电脑内置的冷却风扇风扇引线和插头可能因制造商而异 45
第二章硬件安装 11 45
O 表示内存已安装 x 表示内存未安装 46
为激活主板双通道功能使用内存模组必须符合以下要求成对安装相同密度的内存模组如下表所示 46
内存容量 46
双通道内存安装 46
步骤1 向外推开固定夹打开dimm插槽将dimm按顺序放在插槽上 dimm上的切口须与插槽凹口匹配 46
步骤2 垂直插入dimm并固定好直到固定夹跳回原位 dimm就位 46
第二章硬件安装 46
5 扩展槽 47
M 插槽支持m type 2260 2280 ssd模块安装m 模块前请将六角柱放到正确的位置支持m sata iii 6 gb s 模块与m pci express gen3 x4模块 32 gb s 47
Pcie m2_1 m 2 m key 插槽带宽取决于cpu 47
Pex16_1 pci express gen3 x16 插槽带宽取决于cpu 47
Ryzen ddr最高频率支持表 47
X470nh 47
符合pci express 3 规范同步单向最大理论带宽为16gb s 总带宽为32gb s 47
第二章硬件安装 13 47
6 跳线设置 48
Jcmos1 清空cmos 跳线 48
安装扩展卡 48
7 接口和插槽 49
Atxpwr1 atx电源接口 49
Atxpwr2 atx电源接口 49
Panel1 前置面板接头 49
X470nh 49
为了更好的兼容性我们建议使用标准的atx24 pin电源供应此接口的电源 49
开机前请确保atxpwr1和atxpwr2接口都已插上电源电压不足可能导致系统不稳或者外围设备不能正常运行当配置使用大功率设备的系统时建议您使用带有大功率输出的电源 49
此10针脚接口包含开机重启硬盘指示灯和电源指示灯 49
此接口给cpu电路提供 12v电压 49
第二章硬件安装 15 49
Jfront_usb3_1 前置面板usb 3 1 gen1 5gb s 接头 50
Pc前置面板支持附加的usb数据线也可连接即插即用外围设备 50
Sata_1 sata4 串行ata 6 0 gb s 接口 50
Spk 扬声器接头 50
此4针脚接口连接扬声器 50
此接口通过sata数据线连接sata硬盘 50
第二章硬件安装 50
F_audio1 前置面板音频接头 51
F_usb1 前置面板usb 2 0接头 51
Jspdifout1 数字音频输出接口 51
Pc前置面板支持附加的usb数据线也可连接即插即用外围设备 51
X470nh 51
建议您连接前置高清音频插孔享用主板高清音频功能如果要连接ac 97前置音频输出数据线请关闭前置面板插孔检测功能此功能在系统音频工具中可见 51
此接口连接pci支架spdif输出接头 51
此接头可连接音频输出数据线支持hd 高清音频和ac 97 51
第二章硬件安装 17 51
Com1 串行端口 52
此主板有一串行端口可连接至rs 232端口 52
第二章硬件安装 52
1 uefi bios设置 53
2 刷新bios 53
第三章 uefi bios和软件 53
3 软件 57
启动软件 57
安装软件 57
X470nh 59
打开已保存的文本文件显示相关系统信息包括主板 bios cpu 视频设备 os 这些信息当然也在已发送的邮件里 59
第三章 uefi bios和软件 25 59
输入文件名点击 save 系统信息将被保存至文本文件里 59
1 驱动程序安装注意事项 60
第四章帮助信息 60
2 ami bios 哔声代码 61
3 问题解答 61
Bios 开机自检哔声代码 61
引导模块哔声代码 61
4 raid 功能 62
Raid 定义 62
第四章帮助信息 64
附录i 产品中有毒有害物质或元素的名称及含量 64
