A.I FAN Control | 7
B450NH
A�I FAN Control

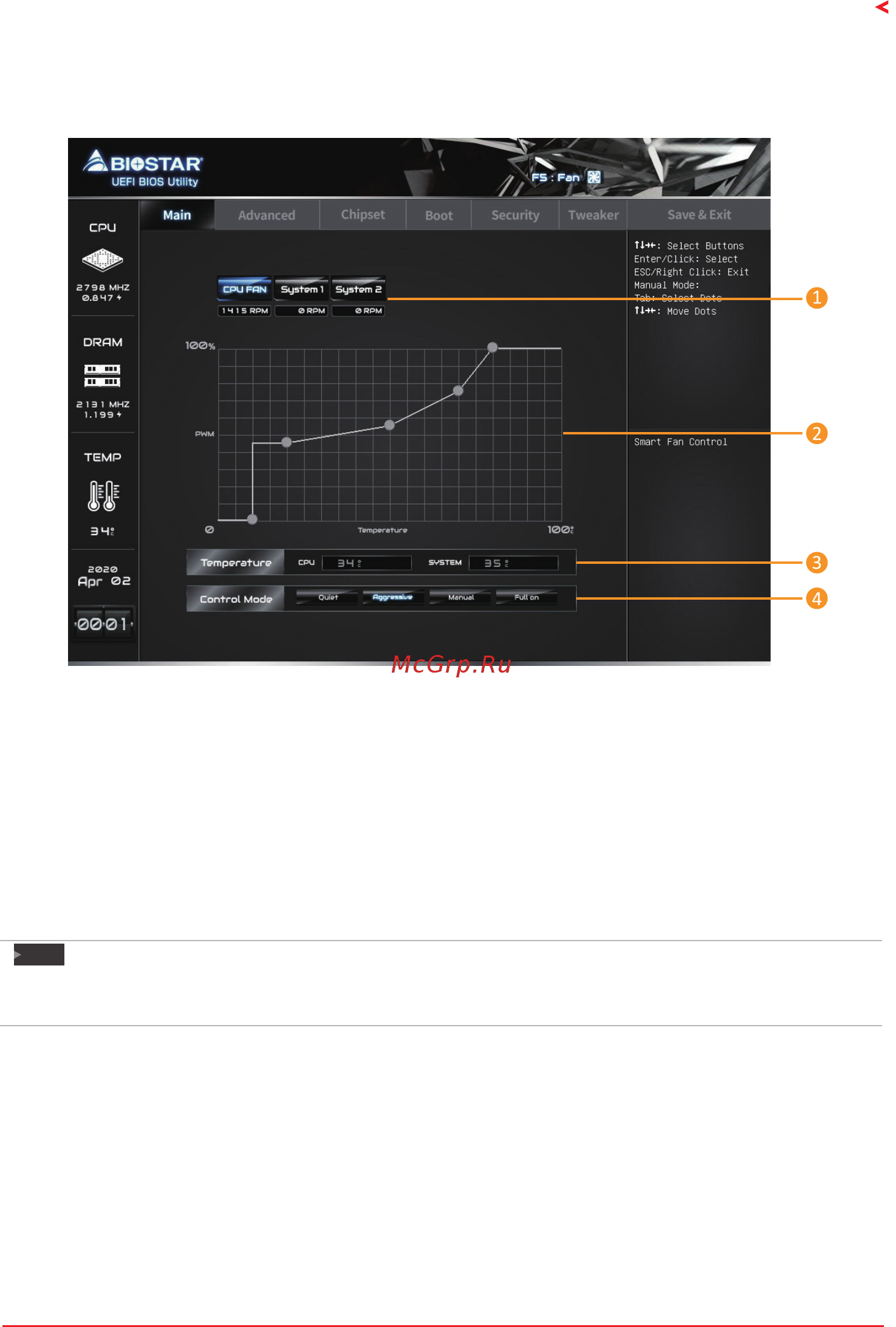

Press <F5> to display the A.I FAN Control menu.
1� CPU FAN/ System1/ System2: Click buon to set the status value of CPU and system fan.
2� PWM/ Temperature Panel: According to the fan PWM value corresponding to CPU and
system temperature to adjust the fan speed.
»
Allows you to adjust according to your preferences.
3� Temperature: Shows the current CPU and system temperature.
4� Control Mode: Allows you to control mode of the fans.
• Quiet: Enable Quiet mode.
• Aggressive: Enable Aggressive mode.
• Manual: Enable Manual mode.
• Full on: Enable Full On mode.
Note
»
Menu contents will be dierent slightly, depending on dierent motherboard of users’ computers.
»
Once you are nished making your selecons, choose the <Save & Exit> menu to save.
