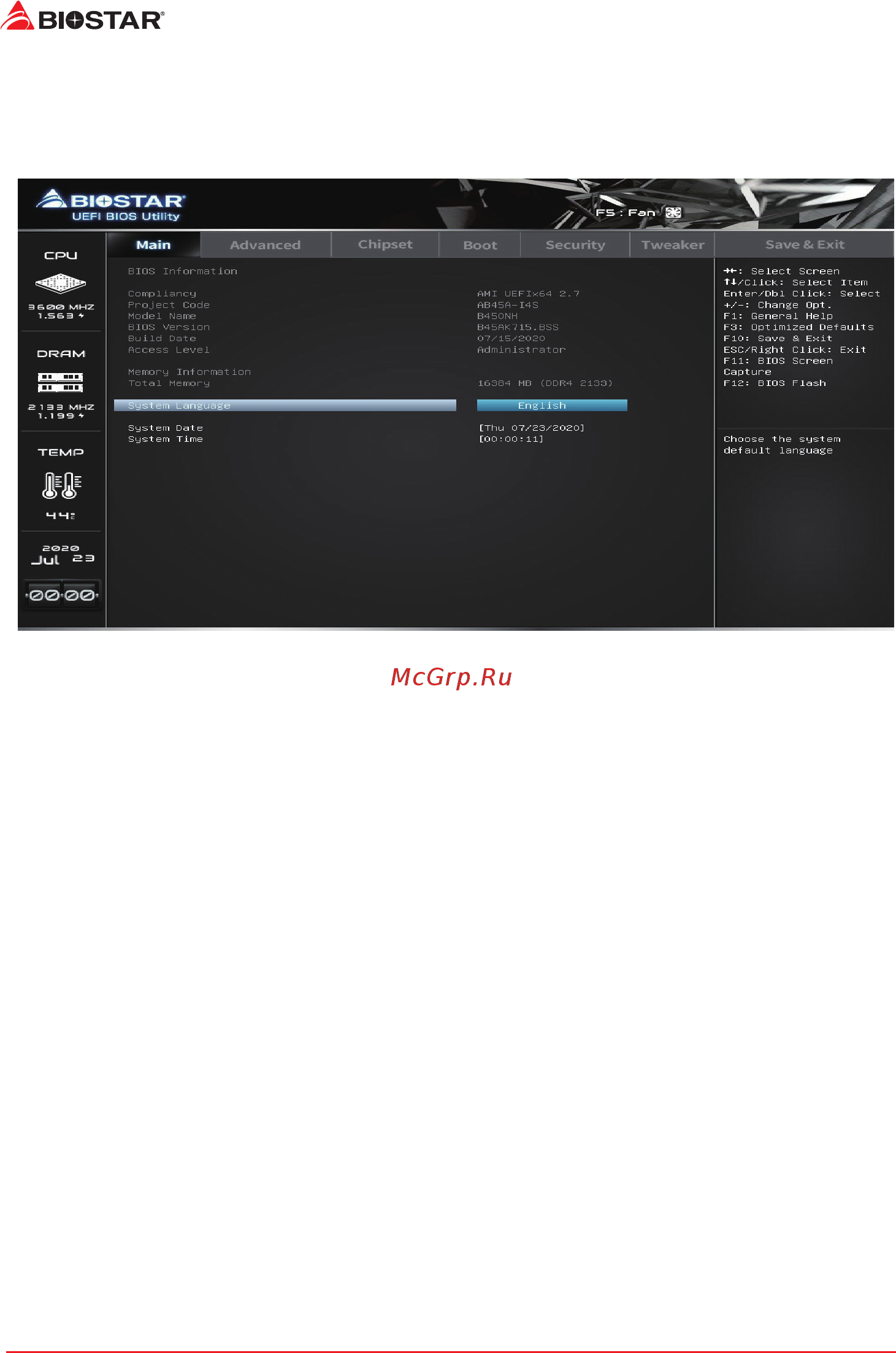

8 | 1. Main Menu
1� Main Menu
Once you enter AMI UEFI BIOS Setup Ulity, the Main Menu will appear on the screen providing
an overview of the basic system informaon.
BIOS Information
It shows system informaon including UEFI BIOS version, Project Code, Model Name, Build Date
and etc.
Total Memory
Shows system memory size, VGA shard memory will be excluded.
Memory Frequency
Shows the system memory frequency.
System Language
Choose the system default language.
System Date
Set the system date. Note that the ‘Day’ automacally changes when you set the date.
System Time
Set the system internal clock.
